Baldor CFSWDL3509

General Purpose Washdown Duty Motor (Stainless Steel) - 1 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 3450 rpm Base, Foot Mount

BaldorMFR # CFSWDL3509SKU # YLSGTVOOCEUSFRU

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 1 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 3450 rpm Base, Foot Mount

Baldor CFSWDL3509

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.600 A @ 115.0 V · 5.800 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor finishUNPAINTED

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size@ AWG · 4 @ 16 AWG, A PH

Motor type3524L

Mounting arrangementF1

Number of poles2

Overall length13.96 IN

Power factor80

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568867372

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Weight41 lbs

Mounting TypeFoot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCFSWDL3509

Weight41

Specification number35E4732L350G1

EnclosureTEFC

Ingress protection (IP)69

Horsepower (HP)1

NEMA nominal efficiency (%)68

Voltage (V)115/230

Current (A)11.6/5.8

Power factor80

Rating40C AMB-CONT

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)K

Insulation classF

Service factor1.25

Service factor current (A)13.8/6.9

Phase1

NEMA design letterN

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Nameplate numberNP4427ALG30

Performance

General characteristics· 230 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)2.097 Ω / 1.1004 Ohms B Ph

Temperature rise at rated load (°C)75° C

Temperature rise at service factor load (°C)100° C

Start configurationDOL

Breakdown torque4.11 lb-ft

Pull-up torque3.53 lb-ft

Locked-rotor torque5.64 lb-ft

Starting current (A)39.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	40	57	69	77	81	85	87	85
Efficiency %	0	36.9	52.1	60.8	65.3	66.8	66.9	66.8
Speed rpm	3597	3564.8	3547.2	3529	3511.3	3485.8	3458.1	3486
Line amps A	3.55	3.96	4.63	5.38	6.19	7.28	8.44	7.28
Power W	325	523	736	950	1157	1416	1683	1416
Torque lb-ft	0	0.3817	0.7615	1.152	1.516	1.91	2.293	1.91

Documents & CAD

For this product 3

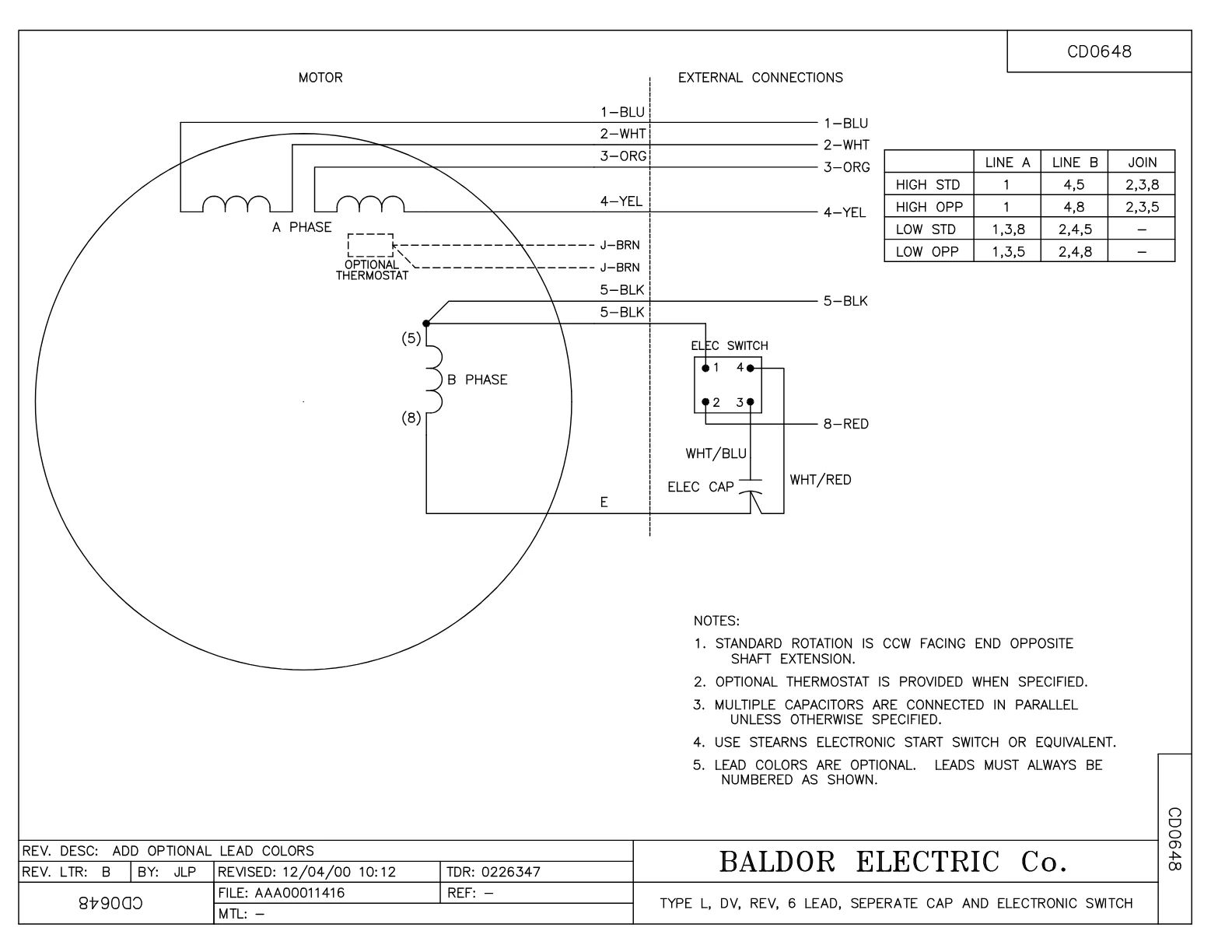

Wiring DiagramWiring DiagramPDF·48 KB·English
