How can I get a price quote for Baldor CFSWDL3507?

You can request a fast quote for Baldor CFSWDL3507 from Yılsa Engineering. Reference part number YLS2797FQJZXFU1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CFSWDL3507 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CFSWDL3507 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CFSWDL3507?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CFSWDL3507

General Purpose Washdown Duty Motor (Stainless Steel) - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 1740 rpm Base, Foot Mount

BaldorMFR # CFSWDL3507SKU # YLS2797FQJZXFU1

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 1740 rpm Base, Foot Mount

Baldor CFSWDL3507

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.100 A @ 230.0 V · 8.200 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.1 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor finishUNPAINTED

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3530L

Mounting arrangementF1

Number of poles4

Overall length14.83 IN

Power factor78

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1745 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568867365

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage115/230 V

Base RPM1740 rpm

Weight47 lbs

Mounting TypeFoot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCFSWDL3507

Weight33

Specification number35E4732G409G1

EnclosureTEFC

Ingress protection (IP)69

Horsepower (HP).75

NEMA nominal efficiency (%)74

Voltage (V)115/230

Current (A)8.2/4.1

Power factor78

Rating40C AMB-CONT

Speed (rpm)1745

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)K

Insulation classF

Service factor1.15

Phase1

NEMA design letterN

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Nameplate numberNP4427ALG30

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)0.917 Ω / 1.84 Ohms B Ph

Start configurationDOL

Breakdown torque5.29 lb-ft

Pull-up torque3.99 lb-ft

Locked-rotor torque8.9 lb-ft

Starting current (A)51.11 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	16	41	59	71	77	82	85	82
Efficiency %	0	61.6	73	75.5	75.4	73.4	70.2	73.4
Speed rpm	1797	1786	1773	1759	1744	1726	1702	1726
Line amps A	4.46	4.81	5.65	6.82	8.22	9.88	11.8	9.88
Power W	79.98	229	386	556	732	928	1147	928
Torque lb-ft	0	0.556	1.12	1.68	2.23	2.78	3.33	2.78

Documents & CAD

For this product 3

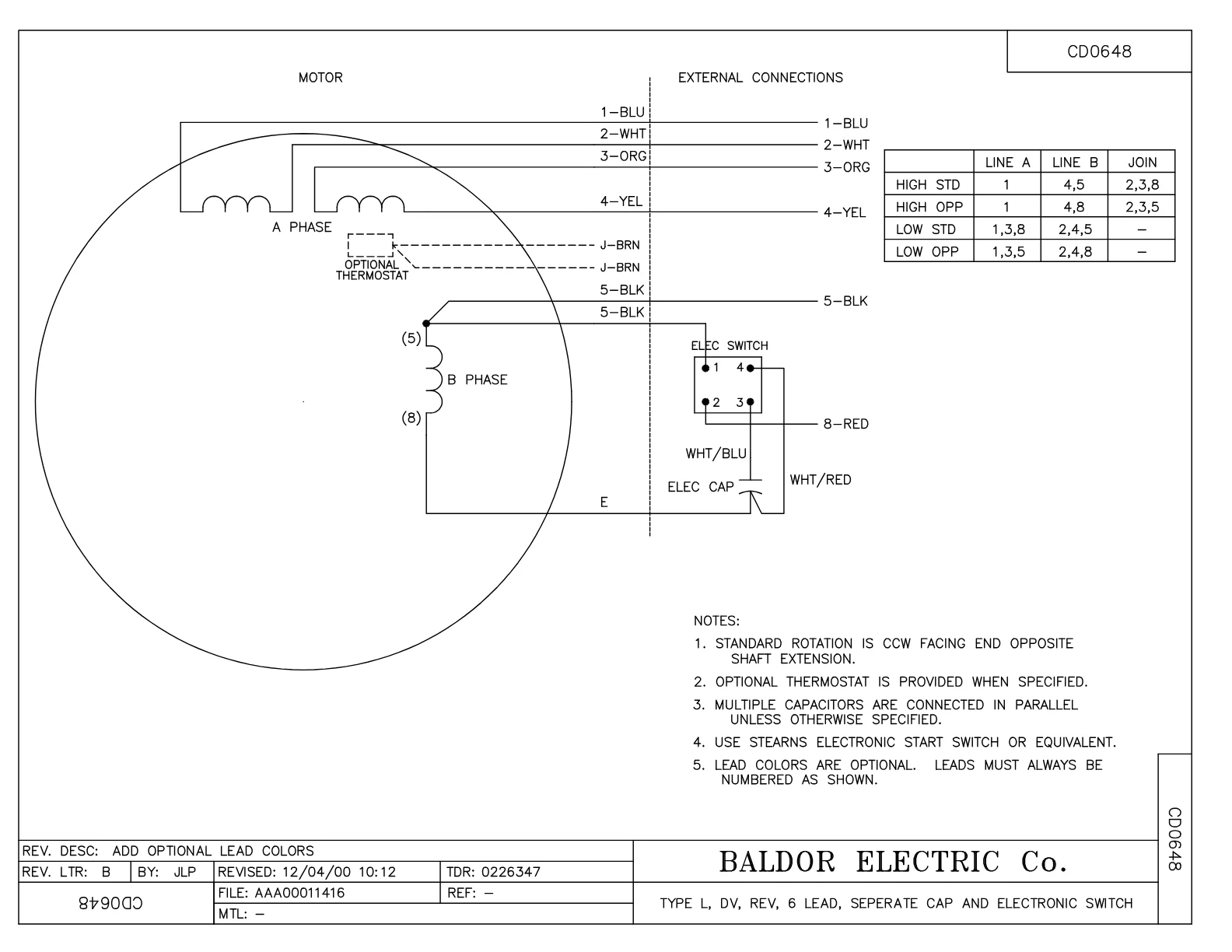

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·602 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CFSWDL3507 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1460A05SP	ELEC CAP, 460-552 MFD, 125V, 2.06D X 3.	1 pcs	17 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
