Baldor CFSWDL3506

General Purpose Washdown Duty Motor (Stainless Steel) - 3/4 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 3450 rpm Base, Foot Mount

BaldorMFR # CFSWDL3506SKU # YLSRT0Q23L5BV60

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 3/4 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 3450 rpm Base, Foot Mount

Baldor CFSWDL3506

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.600 A @ 230.0 V · 4.800 A @ 208.0 V · 9.200 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load64.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor finishUNPAINTED

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size@ AWG · 7 @ 18 AWG

Motor type3516L

Mounting arrangementF1

Number of poles2

Overall length13.96 IN

Power factor81

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568867358

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Weight33 lbs

Mounting TypeFoot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCFSWDL3506

Weight33

Specification number35E4732L342G1

EnclosureTEFC

Ingress protection (IP)69

Horsepower (HP).75

NEMA nominal efficiency (%)64

Voltage (V)115/230

Current (A)9.2/4.6

Power factor81

Rating40C AMB-CONT

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)K

Insulation classF

Service factor1.25

Service factor current (A)11.2/5.6

Phase1

NEMA design letterN

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Nameplate numberNP4427ALG30

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)3.4258 Ω / 1.1305 Ohms B Ph

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)92° C

Start configurationDOL

Breakdown torque2.42 lb-ft

Pull-up torque2.02 lb-ft

Locked-rotor torque4.59 lb-ft

Starting current (A)29.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	28	48	64	74	81	85	87	85
Efficiency %	0	46.1	59.7	64.7	65.5	64.1	59.7	64.1
Speed rpm	3585.7	3557.8	3528.3	3494.3	3452.4	3397.8	3316.2	3398
Line amps A	2.68	2.84	3.24	3.81	4.59	5.61	7.06	5.61
Power W	172	311	474	650	853	1095	1411	1095
Torque lb-ft	0	0.283	0.565	0.848	1.14	1.45	1.79	1.45

Documents & CAD

For this product 3

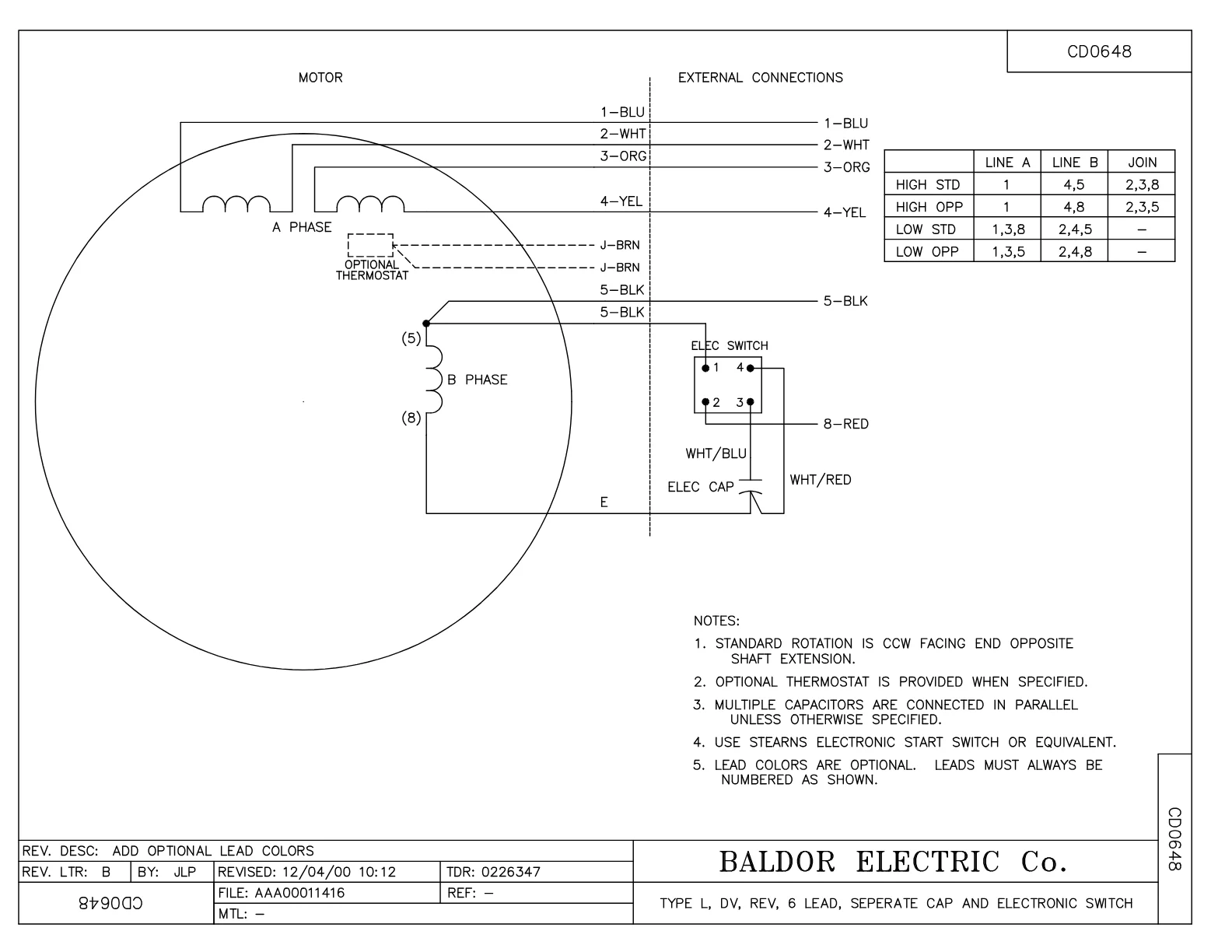

Wiring DiagramWiring DiagramPDF·48 KB·English
