How can I get a price quote for Baldor CFSSP5M3611T-E-G?

You can request a fast quote for Baldor CFSSP5M3611T-E-G from Yılsa Engineering. Reference part number YLSYR44J86Y3EKT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CFSSP5M3611T-E-G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CFSSP5M3611T-E-G genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CFSSP5M3611T-E-G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CFSSP5M3611T-E-G

CFSSP5M3611T-E-G

BaldorMFR # CFSSP5M3611T-E-GSKU # YLSYR44J86Y3EKT

EnclosureTENV

Frame184TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CFSSP5M3611T-E-G (CFSSP5M3611T-E-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor CFSSP5M3611T-E-G — price, stock availability and technical specifications.

Baldor CFSSP5M3611T-E-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame184TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.700 A @ 460.0 V · 7.400 A @ 230.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load90.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.7 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter code03

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)4000 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3624B

Mounting arrangementF1

Number of poles4

Overall length15.54 IN

Power factor81

Product familyWD All SS Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1800 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568598535

Product TypeWashdown Duty Motors

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·108 KB·English

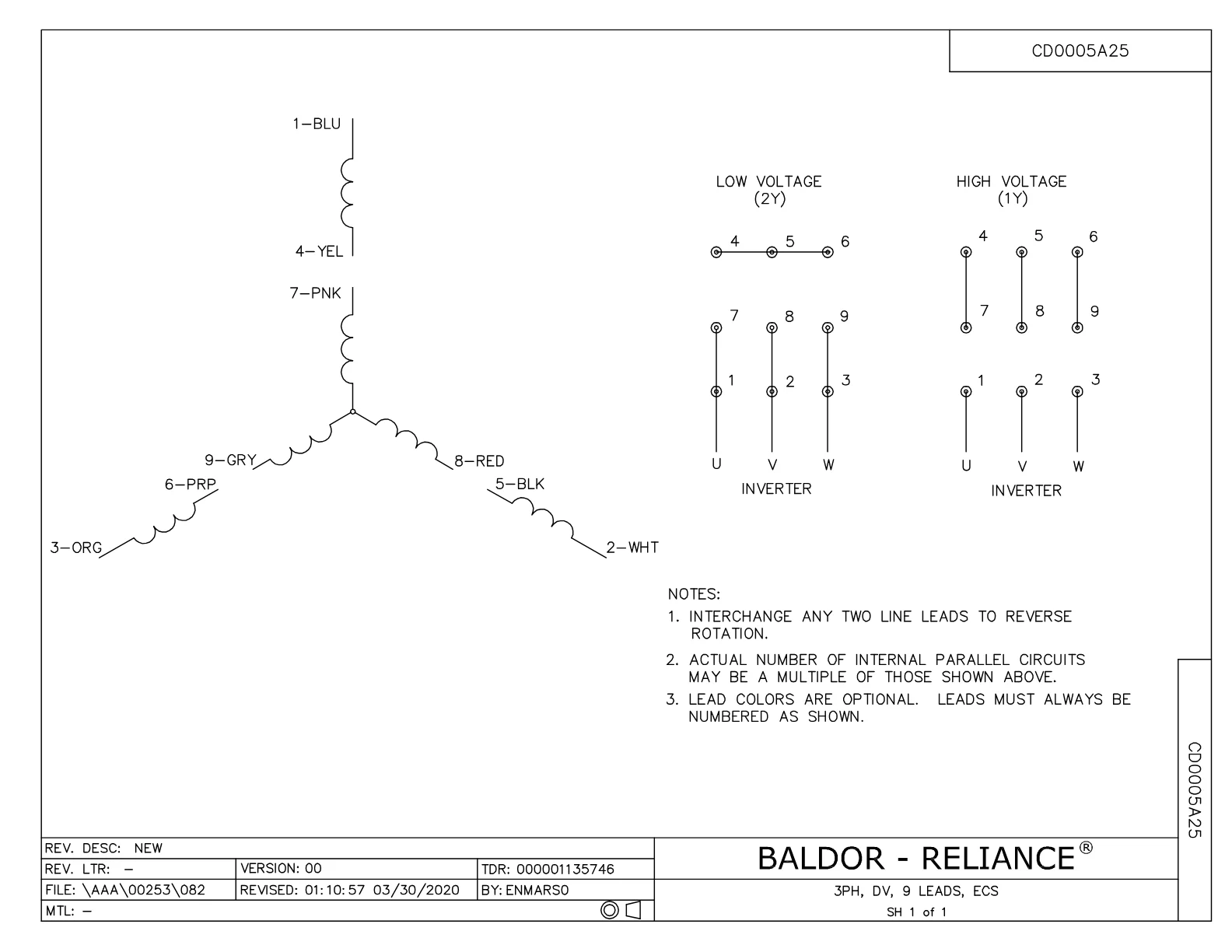

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·503 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CFSSP5M3611T-E-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
