Baldor CFM3166A

Condenser Fan Motor - 1-1/2 hp, 1200 rpm, 3 ph, 208-230/460 V, 56YZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 1140 rpm Base, Belly Band / Footless Mount, Continuous Duty

BaldorMFR # CFM3166ASKU # YLS1QPKE9FG63PW

EnclosureOPAO

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Condenser Fan Motor - 1-1/2 hp, 1200 rpm, 3 ph, 208-230/460 V, 56YZ Frame, OAO (Open Air-Over) Enclosure, 60 Hz, 1140 rpm Base, Belly Band / Footless Mount, Continuous Duty

Baldor CFM3166A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPAO

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)60 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.500 A @ 460.0 V · 5.000 A @ 230.0 V · 5.500 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 18 AWG

Motor type3534M

Mounting arrangementF1

Number of poles6

Overall length17.18 IN

Power factor75

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeOther

Pulley shaft indicatorKey And Flat

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1140 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationES

Winding thermal 2None

UPC781568121504

Motor CategoryCondenser Fan Motor

Motor Supply Voltage208-230/460 V

Base RPM1140 rpm

Type Of BearingBall

Warranty2 Year Warranty

IP Rating22/23

Weight47 lbs

Harmonization Code8501.52.4000

ApplicationsDesigned specifically for use on commercial refrigeration condenser units and air conditioning units.

Additional DetailsCorrosion resistant finish, ball bearings, dynamically balanced for quiet operation. Automatic reset thermal. Shaft 6” long keyway and flat are 90° apart. Reconnectable leads in pulley endplate.

Mounting TypeBelly Band / Footless

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberCFM3166A

Specification number35K306K893

Horsepower (HP)1.5 AIR OVER

Voltage (V)208-230/460

Current (A)5.5-5/2.5

Speed (rpm)1140

Frame size56YZ

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)74

Power factor75

Rating60C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6205

EnclosureOPAO

Nameplate numberNP1257L

Performance

General characteristics· 460 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)19.21 Ω

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque16 lb-ft

Pull-up torque11.1 lb-ft

Locked-rotor torque14.6 lb-ft

Starting current (A)11.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	10	38	57	68	75	79	82	77
Efficiency %	0	68	75.7	76.7	75.4	71.4	65.2	73
Speed rpm	1198.6	1185.5	1171.3	1155.1	1136.7	1109.7	1070.8	1120
Line amps A	1.31	1.43	1.68	2.03	2.46	3.02	3.72	2.8
Power W	99.8	433	762	1106	1466	1907	2419	1731
Torque lb-ft	0	1.748	3.471	5.175	6.848	8.64	10.37	7.92

Documents & CAD

For this product 3

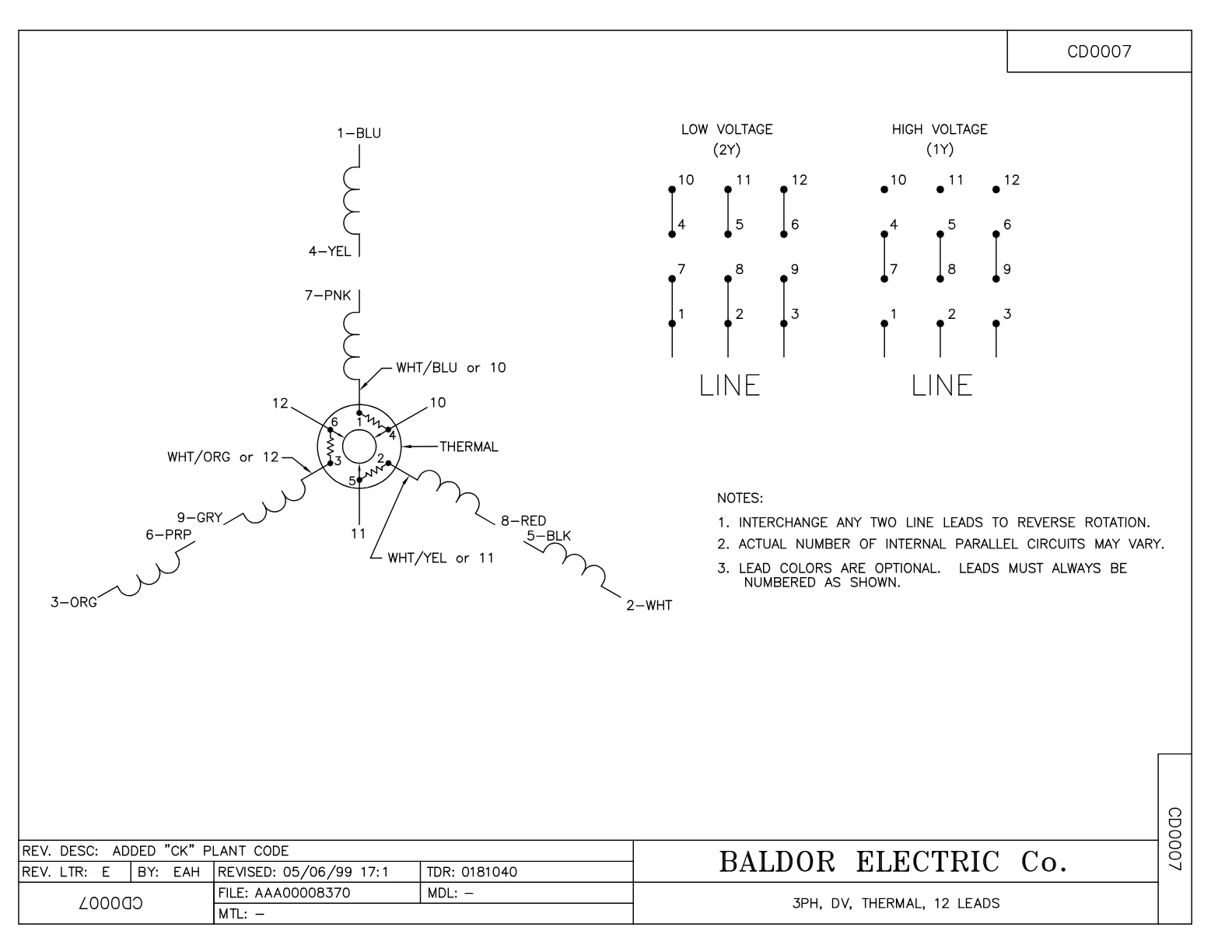

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·600 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·116 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CFM3166A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HA1041A01	CUPPED SLINGER KENCO	1 pcs	6 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
