Baldor CFM3046A

Condenser Fan Motor - 3/4 hp, 1200 rpm, 3 ph, 208-230/460 V, 48YZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Belly Band / Footless Mount, Continuous Duty

BaldorMFR # CFM3046ASKU # YLSWGYJQEDIZE5D

EnclosureODP

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Condenser Fan Motor - 3/4 hp, 1200 rpm, 3 ph, 208-230/460 V, 48YZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Belly Band / Footless Mount, Continuous Duty

Baldor CFM3046A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.500 A @ 460.0 V · 3.000 A @ 230.0 V · 3.300 A @ 208.0 V · 3.600 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load77.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 18 AWG

Motor type3428M

Mounting arrangementF3

Number of poles6

Overall length16.02 IN

Power factor59

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeOther

Pulley shaft indicatorKey And Flat

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1140 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568681961

Motor CategoryCondenser Fan Motor

Motor Supply Voltage208-230/460 V

Base RPM1140 rpm

IP Rating22/23

Weight34 lbs

Harmonization Code8501.51.4040

ApplicationsDesigned specifically for use on commercial refrigeration condenser units and air conditioning units.

Additional DetailsCorrosion resistant finish, ball bearings, dynamically balanced for quiet operation. Automatic reset thermal. Shaft 6” long keyway and flat are 90° apart. Reconnectable leads in pulley endplate.

Mounting TypeBelly Band / Footless

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberCFM3046A

Specification number34J280X426G1

Horsepower (HP).75

Voltage (V)208-230/460

Current (A)3.3-3/1.5

Speed (rpm)1140

Frame size48YZ

Frequency (Hz)60

Phase3

Service factor1.00

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)77

Power factor59

Rating60C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 460 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)21.9 Ω

Start configurationDOL

Breakdown torque11.8 lb-ft

Pull-up torque9.3 lb-ft

Locked-rotor torque9.7 lb-ft

Starting current (A)7.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	10	26	40	51	59	65	68
Efficiency %	0	60	72	76	77	75	73
Speed rpm	1198	1185	1170	1155	1135	1115	1095
Line amps A	1.1	1.1	1.2	1.4	1.5	1.7	2
Power W	88	238	392	550	712	897	1087
Torque lb-ft	0	0.85	1.7	2.55	3.4	4.25	5.1

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·97 KB·English

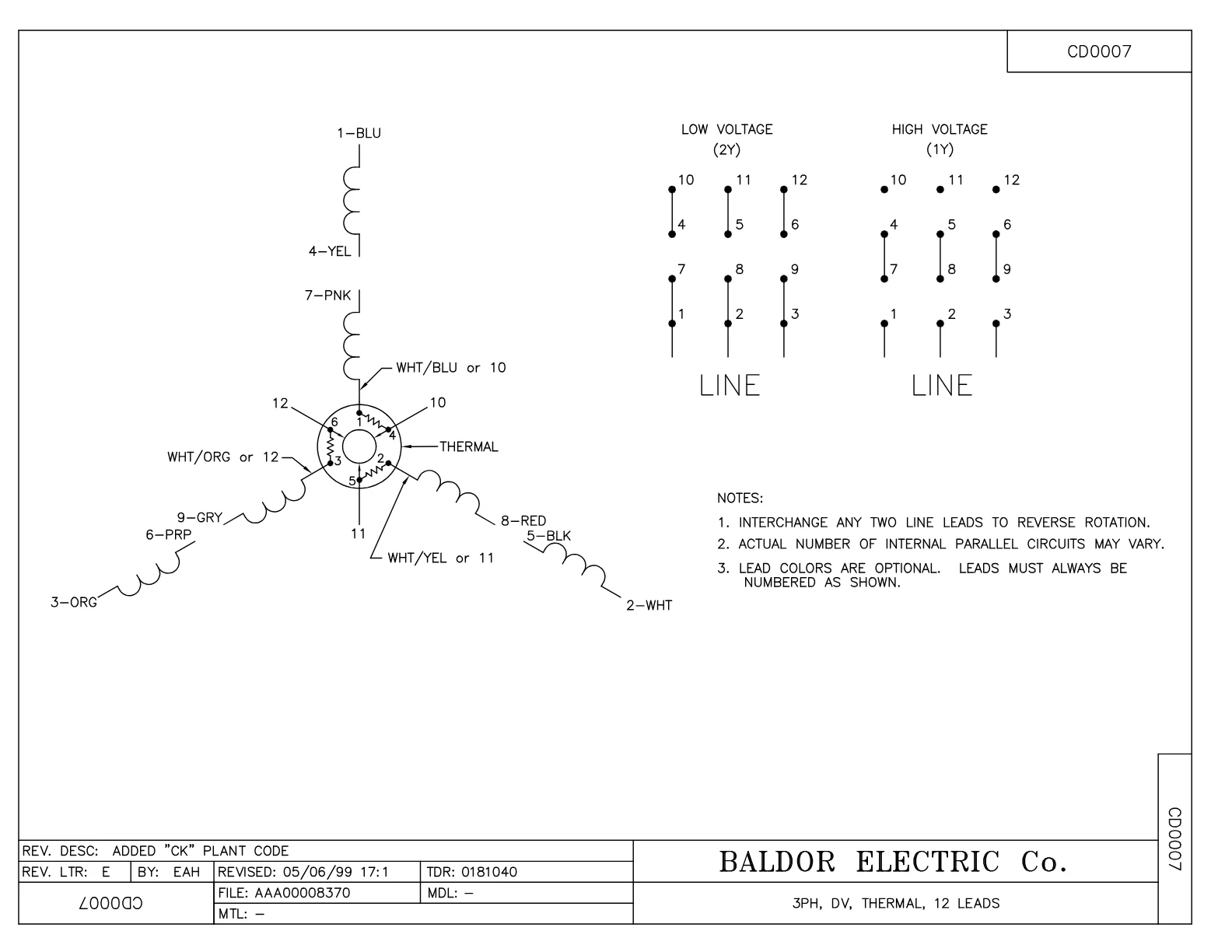

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·580 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CFM3046A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
HA1041A01	CUPPED SLINGER KENCO	1 pcs	6 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
