Baldor CFDL3514M

Farm Duty - General Purpose Motor - 1-1/2 hp, 1800 rpm, 1 ph, 115/208-230 V, 56CH Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CFDL3514MSKU # YLSRYUHG6I1T8Y6

EnclosureTEFC

Frame56CH

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - General Purpose Motor - 1-1/2 hp, 1800 rpm, 1 ph, 115/208-230 V, 56CH Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Foot Mount, Continuous Duty

Baldor CFDL3514M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56CH

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.400 A @ 115.0 V · 6.200 A @ 230.0 V · 6.800 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3532LC

Mounting arrangementF1

Number of poles4

Overall length14.10 IN

Power factor96

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568134481

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage115/208-230 V

Base RPM1725 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight48 lbs

ApplicationsWide variety of agri-duty and industrial applications.

Additional DetailsSealed ball bearings, lubricated with high temperature moistureresistant grease. Drive end seal and v-ring slinger to prevent moisture and contaminant ingress. Condensation drains, gasketed cast conduit boxes. Epoxy paint protects motor from harsh environments.

Mounting TypeC-Face / Foot

Nameplate

Catalog numberCFDL3514M

Specification number35E2322Z997G1

Horsepower (HP)1.5

Voltage (V)115/208-230

Current (A)13/7.1-6.5

Speed (rpm)1750

Frame size56CH

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor95

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)2.1749 Ω / 1.8972 Ohms B Ph

Temperature rise at rated load (°C)64° C

Start configurationDOL

Breakdown torque11.5 lb-ft

Pull-up torque9.24 lb-ft

Locked-rotor torque11.6 lb-ft

Starting current (A)93.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	45	78	89	93	95	95	95
Efficiency %	0	64.7	76.4	80.1	80.5	79.1	75.6
Speed rpm	1797.3	1788.1	1776.5	1764.6	1750.3	1735.8	1712.2
Line amps A	3.64	4.97	7.32	9.99	13	16.1	20.2
Power W	190	448	750	1071	1420	1777	2203
Torque lb-ft	0	1.142	2.274	3.424	4.597	5.707	6.853

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·113 KB·English

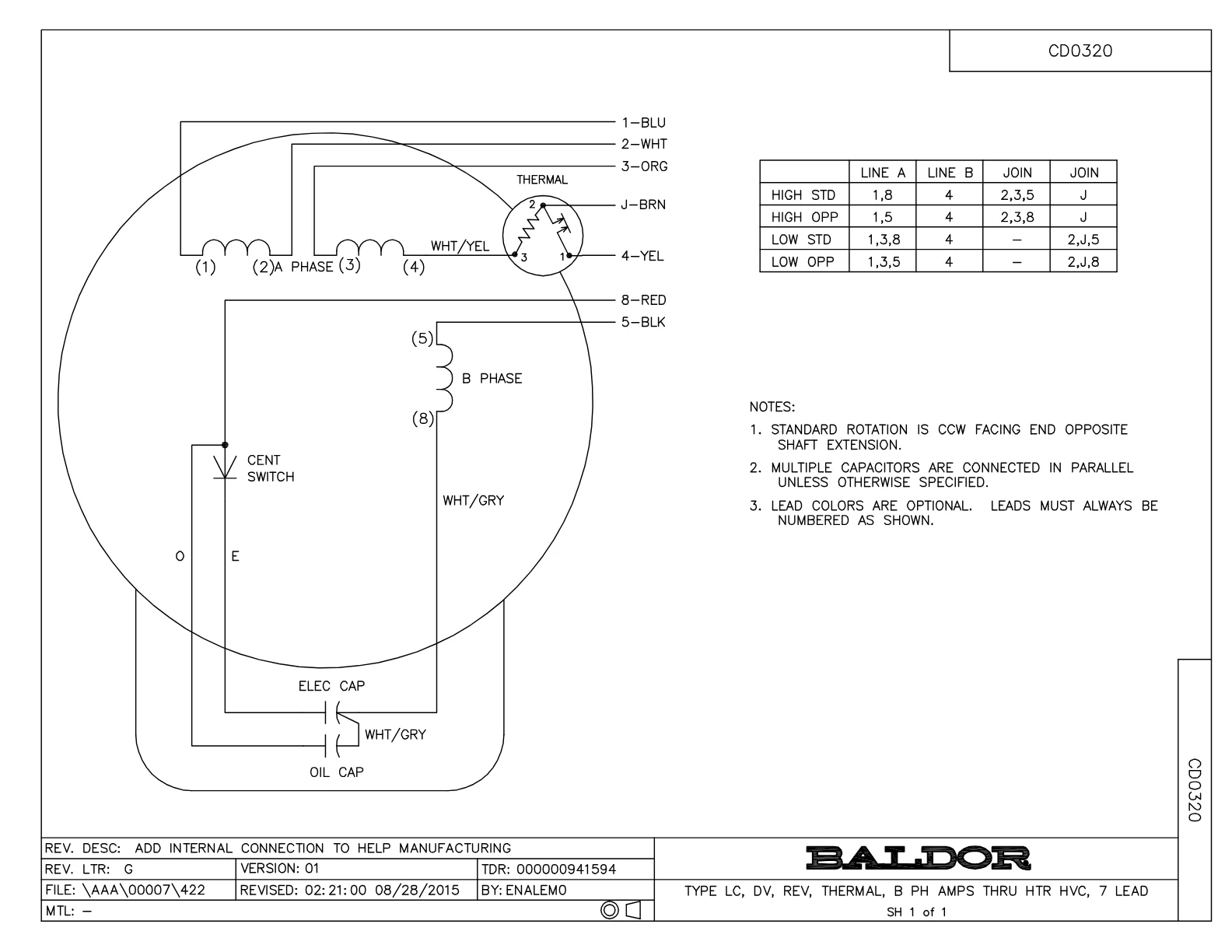

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor CFDL3514M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
RM1014A01SP	BUTYL RUB.THRM COV. (MENA)	1 pcs	37 motors
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
