Baldor CEWDM4109T

Baldor-Reliance CEWDM4109T is a 40 HP, 3530 rpm, 3-phase 460/230 V, 60 Hz, 324TSC frame, TEFC enclosed three-phase AC induction motor with washdown features.

BaldorMFR # CEWDM4109TSKU # YLSFHN9MUS2Z2M4

EnclosureTEFC

Frame324TSC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CEWDM4109T is a 40 HP, 3530 rpm, 3-phase 460/230 V, 60 Hz, 324TSC frame, TEFC enclosed three-phase AC induction motor with washdown features.

Baldor CEWDM4109T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame324TSC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA EEV · CURUSEEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage90.000 A @ 230.0 V · 45.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.4 %

Electrically isolated bearingNot Electrically Isolated

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)45.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingIP55

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor type1058M

Mounting arrangementF1

Number of poles2

Overall length28.89 IN

Power factor90

Product familyWashdown Features

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3530 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568925713

Nameplate

Catalog numberCEWDM4109T

Specification number10-0000-1019

Horsepower (HP)40

Voltage (V)230/460 10:1 CT/VT

Current (A)90/45

Speed (rpm)3530

Frame size324TSC

Frequency (Hz)60

Phase3

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)92.4

Power factor90

Rating40C AMB-CONT

CC number010A

Drive end bearing6312

Opposite drive end bearing6309

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.159 Ω

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)96° C

Start configurationDOL

Breakdown torque197 lb-ft

Pull-up torque85.4 lb-ft

Locked-rotor torque125 lb-ft

Starting current (A)324 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	65	82	88	90	90	91	90
Efficiency %	0	88.6	92	92.8	92.6	91.9	90.8	92.7
Speed rpm	3599	3583	3567	3550	3531	3511	3485	3519
Line amps A	12	16.3	24.7	34.3	45.1	56.3	70.6	51.8
Power W	700	8498	16123	24107	32194	40582	50941	37227
Torque lb-ft	0	14.8	29.3	44.4	59.5	74.8	93.5	68.7

Documents & CAD

For this product 4

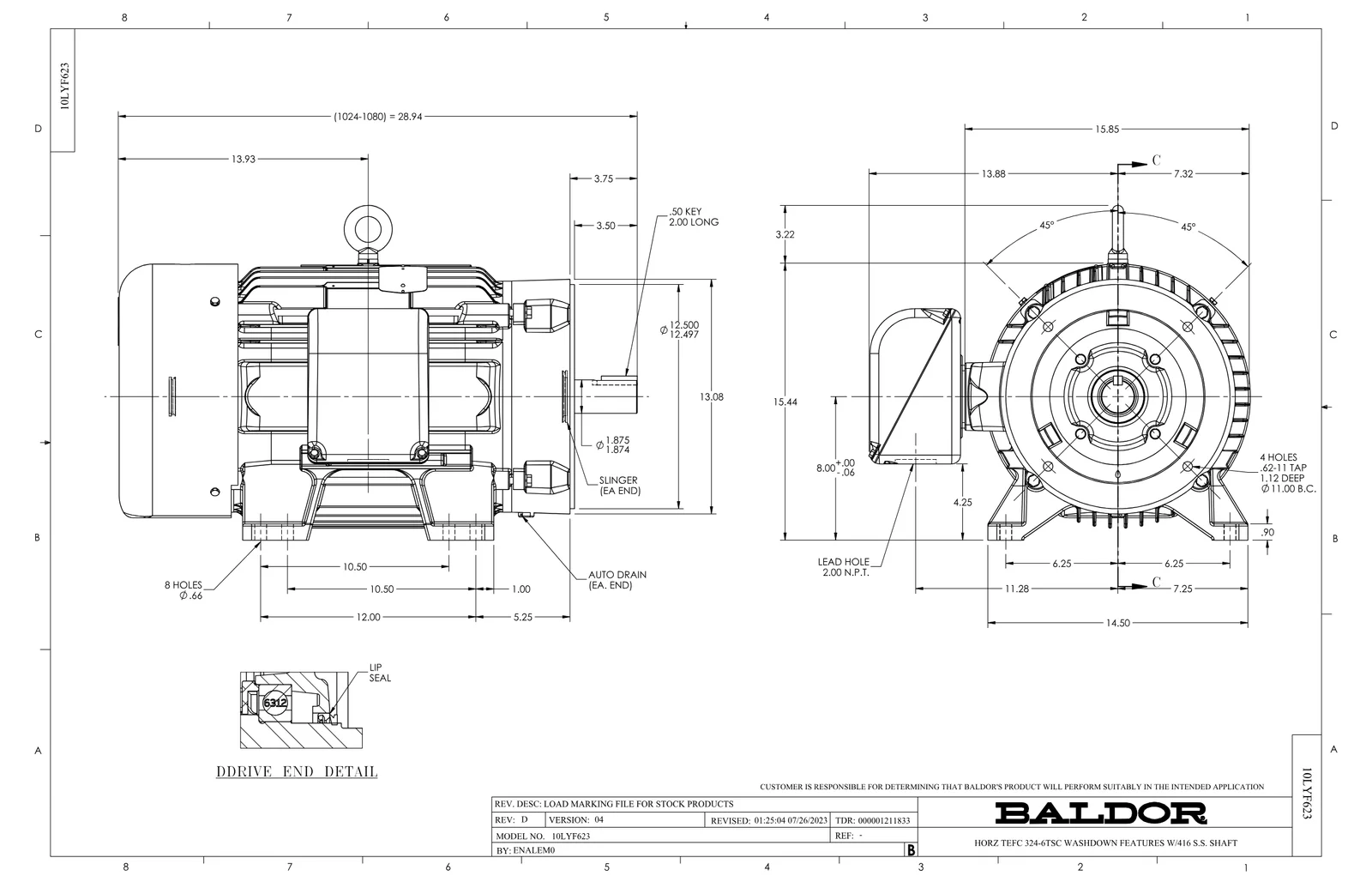

Dimension DrawingDimension SheetPDF·161 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·642 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CEWDM4109T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
09FN3001C02	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	155 motors
HW4600B34	SINGLE LIP SEAL 2.250 X 2.997 X .438,DBL	1 pcs	21 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
