Baldor CEWDM3613T-5

CEWDM3613T-5

BaldorMFR # CEWDM3613T-5SKU # YLSABWOFD06O00Q

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CEWDM3613T-5 (CEWDM3613T-5) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor CEWDM3613T-5 — price, stock availability and technical specifications.

Baldor CEWDM3613T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.700 A @ 575.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load88.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.7 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 16 AWG

Motor type3630M

Mounting arrangementF1

Number of poles2

Overall length16.54 IN

Power factor91

Product familyWash Down

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568692189

Product TypeBrake Motors

Nameplate

Catalog numberCEWDM3613T-5

Specification number36K190S505G3

Horsepower (HP)5

Voltage (V)575

Current (A)4.7

Speed (rpm)3450

Frame size184TC

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)88.5

Power factor91

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 575 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)3.58 Ω

Temperature rise at rated load (°C)72° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque33.7 lb-ft

Pull-up torque23.5 lb-ft

Locked-rotor torque27.5 lb-ft

Starting current (A)45.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	12	63	81	88	91	93	93	92
Efficiency %	0	83.2	88.4	89.1	88.3	87	85.8	87.5
Speed rpm	3599	3569	3537	3504	3466	3428	3385	3443
Line amps A	1.34	1.79	2.61	3.58	4.68	5.81	7.05	5.36
Power W	156	1115	2103	3151	4259	5370	6561	4926
Torque lb-ft	0	1.83	3.7	5.64	7.64	9.59	11.7	8.81

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

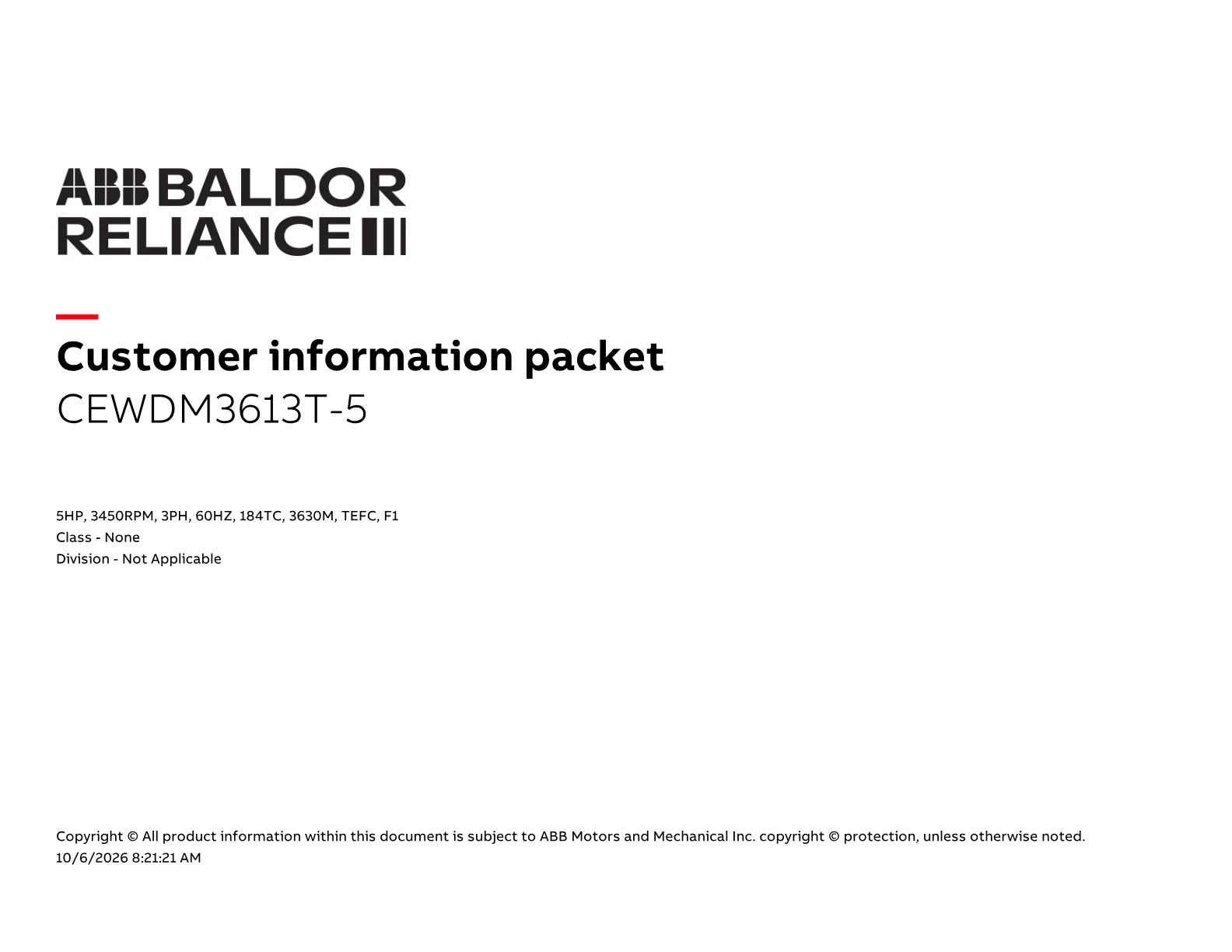

DatasheetDatasheetPDF·593 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEWDM3613T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B02	EXTERNAL FAN, PLASTIC, .905/.907 HUB W/	1 pcs	53 motors
37GS3010SP	1/16"WHITE LID GASKET	1 pcs	69 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
