Baldor CEWDM3607T

Baldor-Reliance CEWDM3607T is a 1.5 HP, 1165 rpm, 3-phase 460/230 V, 60 Hz, 182TC frame, TEFC enclosed washdown three-phase AC induction motor.

BaldorMFR # CEWDM3607TSKU # YLSK6RAM0LGMI

EnclosureTEFC

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance CEWDM3607T is a 1.5 HP, 1165 rpm, 3-phase 460/230 V, 60 Hz, 182TC frame, TEFC enclosed washdown three-phase AC induction motor.

Baldor CEWDM3607T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.800 A @ 230.0 V · 5.000 A @ 208.0 V · 2.400 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load87.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.4 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3632M

Mounting arrangementF1

Number of poles6

Overall length16.54 IN

Power factor67

Product familyWash Down

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1165 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568817193

Nameplate

Catalog numberCEWDM3607T

Specification number36K190S916G1

Horsepower (HP)1.5

Voltage (V)230/460

Current (A)4.8/2.4

Speed (rpm)1165

Frame size182TC

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)87.5

Power factor67

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 460 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)7.12 Ω

Temperature rise at rated load (°C)34° C

Temperature rise at service factor load (°C)40° C

Start configurationDOL

Breakdown torque23.8 lb-ft

Pull-up torque12.5 lb-ft

Locked-rotor torque15.3 lb-ft

Starting current (A)15.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	30	48	59	67	71	74	69
Efficiency %	0	79.3	86.1	87.8	87.5	86.6	85.5	87
Speed rpm	1199	1192	1185	1177	1168	1158	1148	1162
Line amps A	1.47	1.57	1.77	2.07	2.42	2.88	3.36	2.7
Power W	70.4	374	675	981	1297	1632	1984	1498
Torque lb-ft	0	1.75	3.45	5.15	6.85	8.59	10.4	7.89

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·597 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

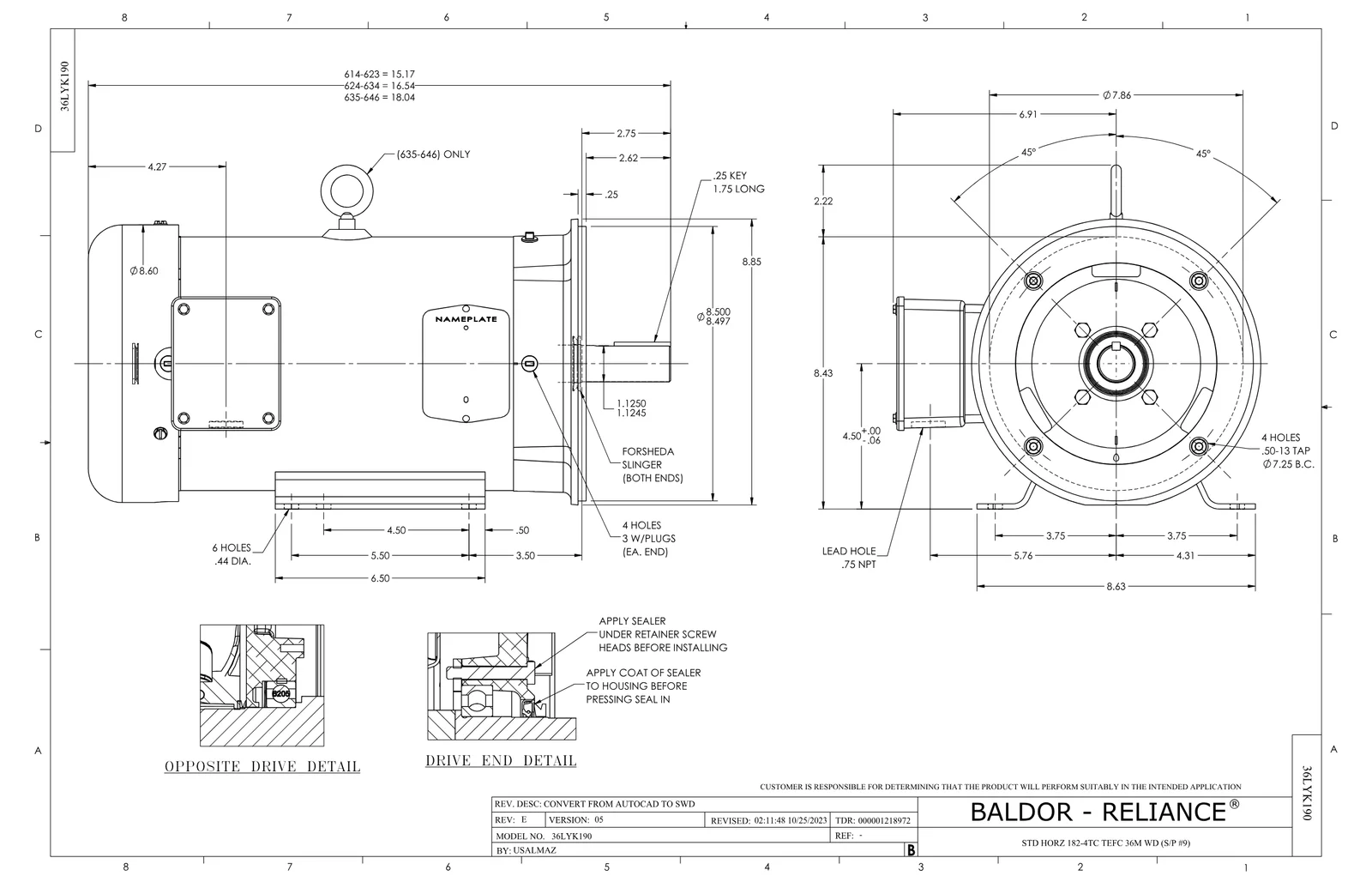

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEWDM3607T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000C01SP	EXFN, PLASTIC, 5.25 OD, .912 ID	1 pcs	334 motors
37GS3010SP	1/16"WHITE LID GASKET	1 pcs	69 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
