Baldor CEWDM3555

General Purpose Washdown Duty Motor (Painted) - 2 hp, 3600 rpm, 3 ph, 230/460 V, 56HCY Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3490 rpm Base, C-Face / Foot Mount

BaldorMFR # CEWDM3555SKU # YLSJF10EQQPN179

EnclosureTEFC

Frame56HCY

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Painted) - 2 hp, 3600 rpm, 3 ph, 230/460 V, 56HCY Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3490 rpm Base, C-Face / Foot Mount

Features and Benefits

Standard NEMA BA Dimension 300 Series stainless steel hardware
Moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets
Power Off/Manual Release
Resets automatically
NEMA Premium® Efficiency and inverter-ready
230/460V brakes are connected in conduit box
Applications: Food processing and other applications that regularly expose the motor to high-pressure washdown

Baldor CEWDM3555

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56HCY

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.300 A @ 208.0 V · 5.000 A @ 230.0 V · 2.500 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3526M

Mounting arrangementF1

Number of poles2

Overall length13.23 IN

Power factor88

Product familyWash Down

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3490 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568457412

Motor CategoryGeneral Purpose Motor (Painted)

Motor Supply Voltage230/460 V

Base RPM3490 rpm

IP Rating55

Harmonization Code8501.52.4000

Weight46 lbs

ApplicationsFood processing and other applications where motors receive washdown on a regular basis.

Additional Details300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation. Super-E® motors have NEMA Premium® efficiency and 3 year warranty.

Mounting TypeC-Face / Foot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberCEWDM3555

Specification number35S593M774G1

Horsepower (HP)2

Voltage (V)230/460

Current (A)5/2.5

Speed (rpm)3490

Frame size56HCY

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)M

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor88

Rating40C AMB-CONT

CC number010A

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)6.88 Ω

Temperature rise at rated load (°C)44° C

Temperature rise at service factor load (°C)52° C

Start configurationDOL

Breakdown torque14.2 lb-ft

Pull-up torque6.33 lb-ft

Locked-rotor torque11.2 lb-ft

Starting current (A)25.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	16	55	75	84	88	90	91	89
Efficiency %	0	73.4	83.6	85.8	86.3	85.8	84.7	86
Speed rpm	3598	3572	3547	3520	3492	3461	3426	3473
Line amps A	0.912	1.1	1.47	1.93	2.44	3	3.61	2.78
Power W	115	481	880	1289	1713	2161	2627	1982
Torque lb-ft	0	0.696	1.46	2.21	2.98	3.77	4.57	3.45

Documents & CAD

For this product 4

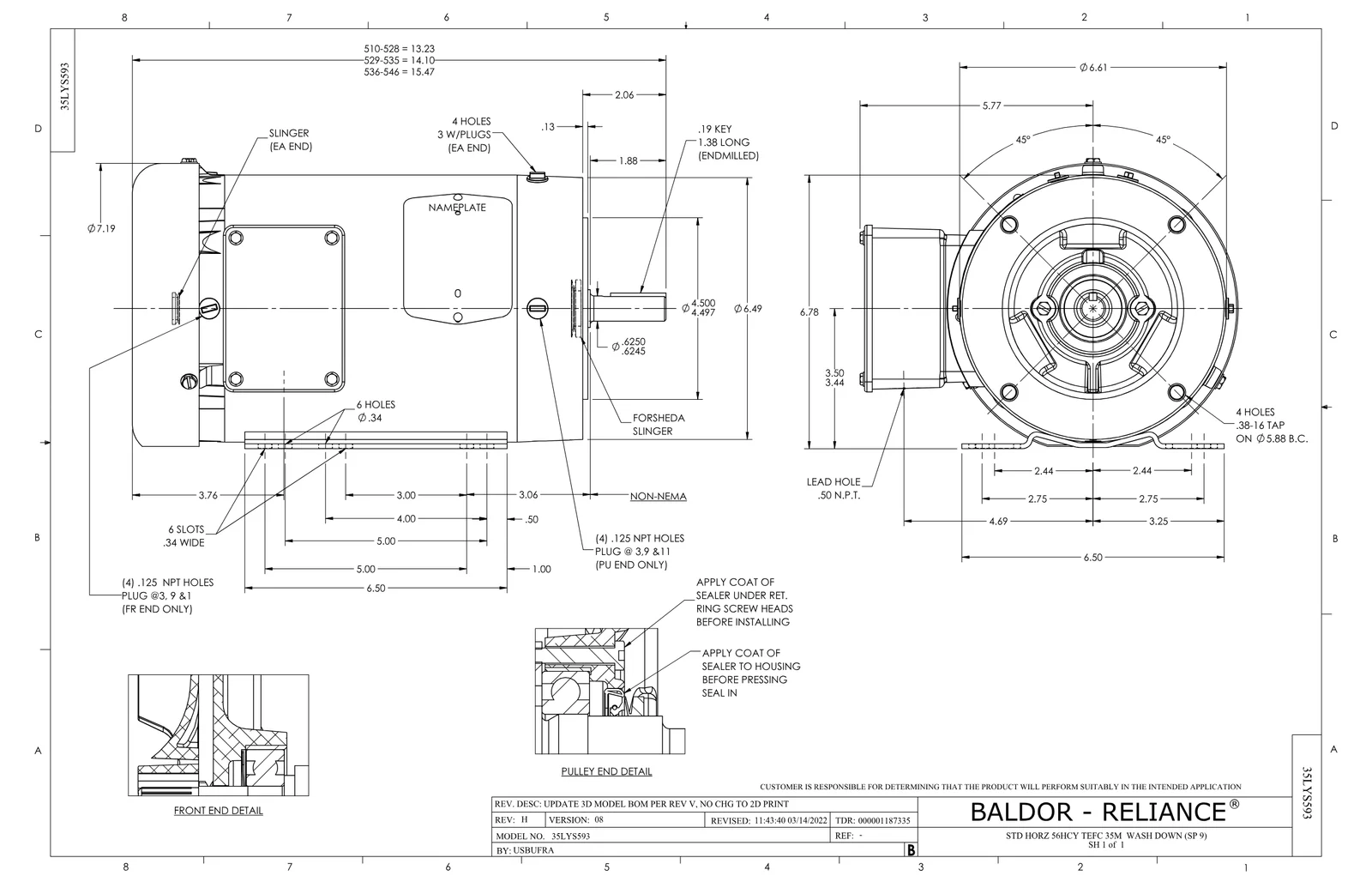

Dimension DrawingDimension SheetPDF·117 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor CEWDM3555 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
