Baldor CEWDBM3611T

Washdown Duty Brake Motor (Painted) - 3 hp, 1800 rpm, 3 ph, 230/460 V, 182TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount

BaldorMFR # CEWDBM3611TSKU # YLS7RAWSIEIOMUD

EnclosureTEFC

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Washdown Duty Brake Motor (Painted) - 3 hp, 1800 rpm, 3 ph, 230/460 V, 182TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount

Features and Benefits

Moisture sealant on bolt heads and between frame and endplates
Neoprene gaskets
Standard NEMA BA dimension
300 Series stainless steel hardware and shaft
Easily removable condensation drain plugs on each end
Class F insulation
230/460V brakes are connected in conduit box
Electrostatically applied epoxy finish over autophoretic primer
Applications: Food processing and other applications that regularly expose the motor to high pressure washdown

Baldor CEWDBM3611T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Brake torque15.0 lb-ft

Current at voltage8.320 A @ 230.0 V · 8.800 A @ 208.0 V · 4.160 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.2 a

Front face codeC-Face

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3632M

Mounting arrangementF1

Number of poles4

Overall length21.77 IN

Power factor74

Product familyWash Down

Product typeBRAKE MOTOR

Pulley end bearing typeSealed Bearing

Pulley face codeOther

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1764 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568392898

Motor CategoryBrake Motor (Painted)

Motor Supply Voltage230/460 V

Base RPM1760 rpm

IP Rating55

Harmonization Code8501.52.4000

Weight89 lbs

ApplicationsFood processing and other applications where motors receive washdown on a regular basis.

Additional DetailsClass F insulated motor with 1.15 service factor or higher that operates within class “B” temperature limits at rated horsepower. Standard NEMA BA dimension, 300 series stainless steel hardware, moisture sealant on bolt heads, between frame and end plates. Neoprene gaskets. Power off manual release. Resets automatically. Motors have NEMA Premium® Efficiency and are inverterready. 230/460V brakes are connected in conduit box allowing for separate connection when used with an inverter.

Mounting TypeC-Face / Foot

Nameplate

Catalog numberCEWDBM3611T

Specification number36G566Z650

Horsepower (HP)3

Voltage (V)230/460

Current (A)8.4/4.2

Speed (rpm)1765

Frame size182TC

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)89.5

Power factor74

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)3.8717 Ω

Temperature rise at rated load (°C)46° C

Temperature rise at service factor load (°C)56° C

Start configurationDOL

Breakdown torque38.2 lb-ft

Pull-up torque19.1 lb-ft

Locked-rotor torque22.4 lb-ft

Starting current (A)32.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	33	54	67	74	79	81	77
Efficiency %	0	82.2	88.4	89.8	89.8	89	87.9	89.3
Speed rpm	1799.9	1790.7	1781.4	1771.4	1761.2	1749.9	1738.7	1754
Line amps A	2.38	2.54	2.94	3.51	4.2	4.99	5.87	4.67
Power W	111	679	1264	1871	2491	3139	3809	2880
Torque lb-ft	0	2.195	4.419	6.682	8.942	11.25	13.56	10.3

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·593 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

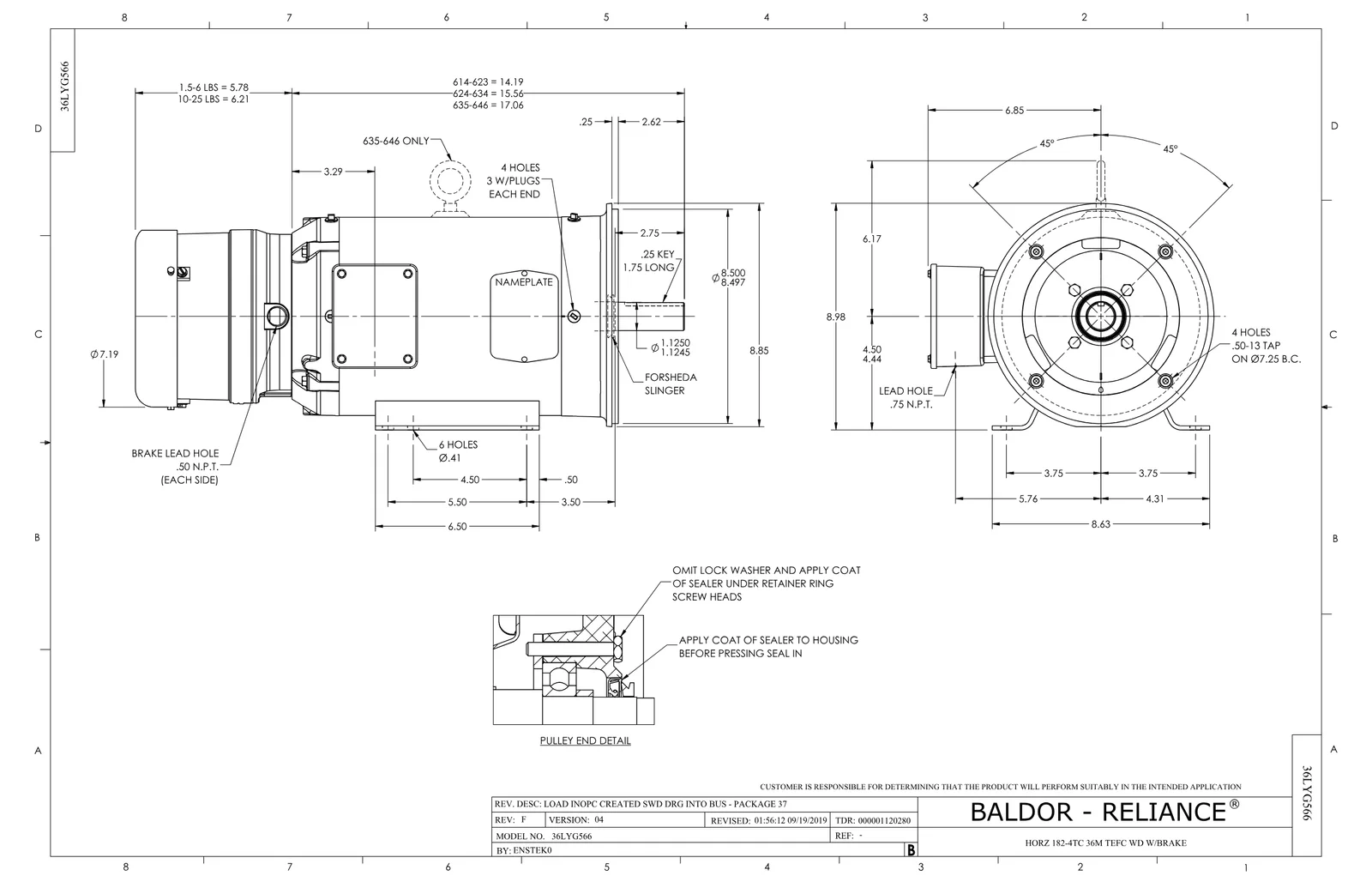

Dimension DrawingDimension SheetPDF·109 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEWDBM3611T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
37GS3010SP	1/16"WHITE LID GASKET	1 pcs	69 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
