How can I get a price quote for Baldor CEM7059T?

You can request a fast quote for Baldor CEM7059T from Yılsa Engineering. Reference part number YLSBWJOIZHM5ISO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CEM7059T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CEM7059T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CEM7059T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

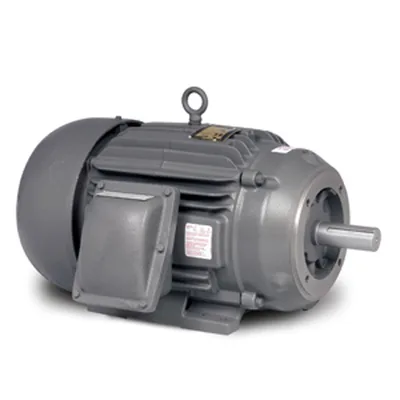

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CEM7059T

Explosion Proof / Hazardous Location Motor - 20 hp, 3600 rpm, 3 ph, 190/380//230/460 V, 256TC Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CEM7059TSKU # YLSBWJOIZHM5ISO

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower20 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage190/380//230/460 V

Frame Size256TC

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location Motor - 20 hp, 3600 rpm, 3 ph, 190/380//230/460 V, 256TC Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, C-Face / Foot Mount, Continuous Duty

Baldor CEM7059T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower20 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage190/380//230/460 V

Frame Size256TC

Enclosure TypeEPFC (Explosion Proof Fan Cooled)

Frequency Rating50/60 Hz

Duty Condition TypeContinuous Duty

Full Load Current23.00 A

Full Load Efficiency91.00 %

Amps @ Voltage46.0 A @ 230 V; 42.0 A @ 190 V; 23.0 A @ 460 V; 21.0 A @ 380 V

Volts @ Frequency190 V @ 50 Hz; 380 V @ 50 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.6250 in

Overall Length C Dimension26.00 in

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassF

IP Rating44

Standards MetCSA, UL

Temperature CodeT3C

Group & ClassDivision 1, Class I - Group D, Class II - Group F & G

Harmonization Code8501.52.4000

Weight359 lbs

ApplicationsIdeal for use on pumps, blowers, valves, and gearboxes where hazardous fumes and dust are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G. Totally enclosed heavy gauge steel and cast iron construction. Corrosion resistant epoxy paint. Single and Three Phase designs. 1.0 Service Factor. Three Phase 143T frame and larger have 60Hz & 50Hz data included on the nameplate. Super-E® explosion proof motors have NEMA Premium® efficiency. Fixed speed sine wave operation only. No Drip Cover.

Mounting TypeC-Face / Foot

Product TypeExplosion Proof (Hazardous Location) Motors
