Baldor CEM4314T

General Purpose Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CEM4314TSKU # YLSKMKXWTUF31QW

EnclosureTEFC

Frame364TC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, C-Face / Foot Mount, Continuous Duty

Features and Benefits

CEM Super-E®/XE motors have NEMA Premium® efficiency
Class F insulation
1.15 service factor
Inverter ready per NEMA standard MG 1 Part 31.4.4.2
Three-year warranty
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor

Baldor CEM4314T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364TC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV · CURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage140.000 A @ 230.0 V · 152.000 A @ 208.0 V · 70.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)70.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Maximum speed (rpm)2700 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA3658M

Mounting arrangementF1

Number of poles4

Overall length33.44 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568436677

Motor Supply Voltage230/460 V

Base RPM1780 rpm

Mounting TypeC-Face / Foot

IP Rating44

Weight898 lbs

ApplicationsPumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberCEM4314T

CC number010A

Specification numberP36G4663

Rating40C AMB-CONT

Code letter (locked rotor kVA)-

Phase3

Insulation classF

Maximum correction (kVAR)15

Drive end bearing6313

Opposite drive end bearing6313

EnclosureTEFC

Frame size364TC

GreasePOLYREX EM

Motor weight854

Usable at (V)50HZ 50HP 190/380V 138/69A

Constant torque15-60

Variable torque3-60

Constant horsepower60-90

Maximum speed (rpm)2700

Nameplate numberNP3979LUA

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·669 KB·English

Series documents 4· shared by this product series

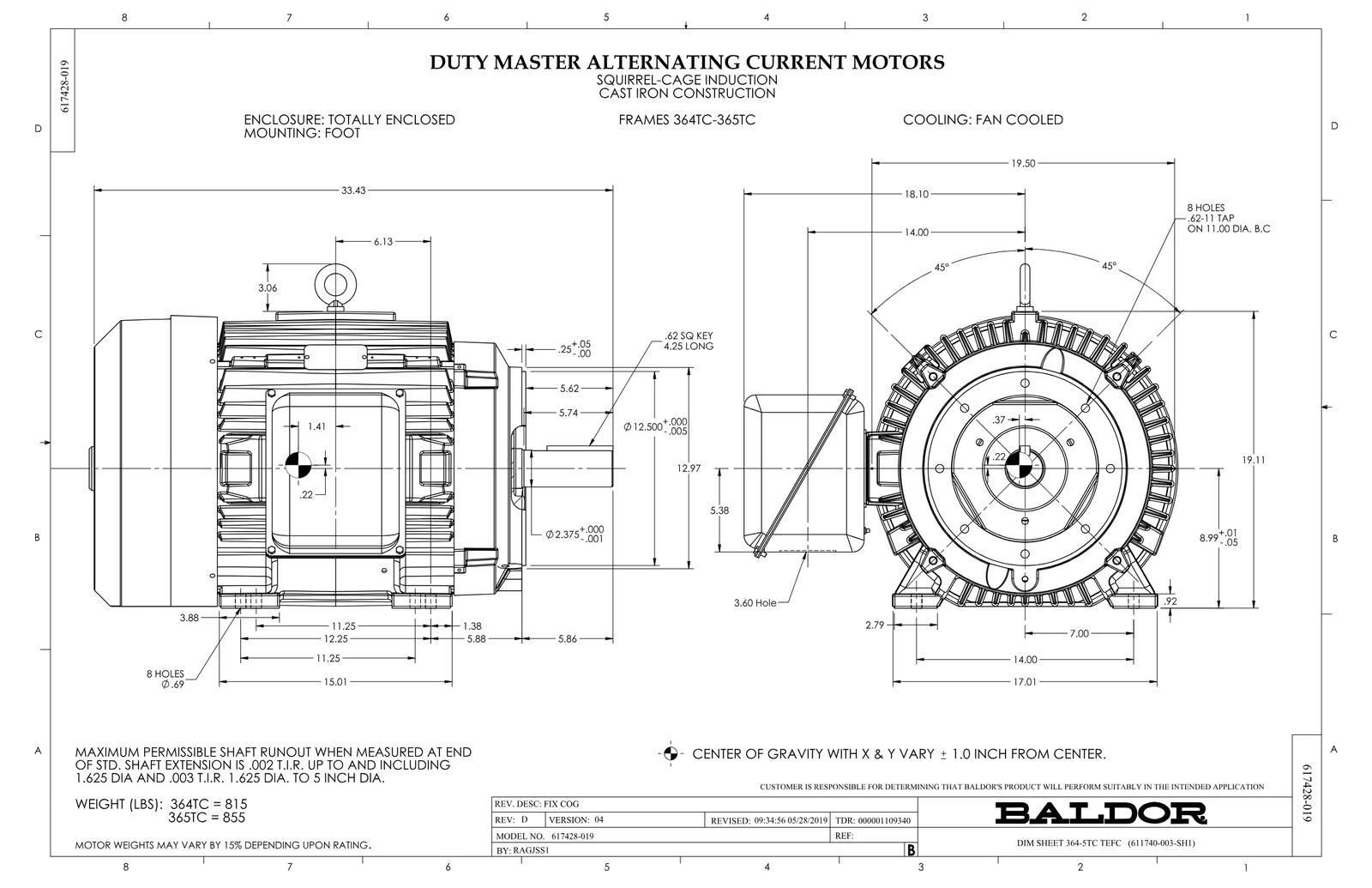

Dimension DrawingDimension SheetPDF·188 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·77 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEM4314T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078548001K	FAN KB 100/30 (70) 360	1 pcs	14 motors
078559001A	+FANCV - 360	1 pcs	93 motors
043292000AJ	GASK 320-400	1 pcs	75 motors
077176000L	C/BOX, PAINTED 440	1 pcs	77 motors
