Baldor CEM4313T

General Purpose Motor - 75 hp, 3600 rpm, 3 ph, 230/460 V, 365TSC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CEM4313TSKU # YLSOP0EOKGX3PWT

EnclosureTEFC

Frame365TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 75 hp, 3600 rpm, 3 ph, 230/460 V, 365TSC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, C-Face / Foot Mount, Continuous Duty

Features and Benefits

CEM Super-E®/XE motors have NEMA Premium® efficiency
Class F insulation
1.15 service factor
Inverter ready per NEMA standard MG 1 Part 31.4.4.2
Three-year warranty
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor

Baldor CEM4313T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame365TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage161.000 A @ 230.0 V · 80.700 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)80.7 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)4500 rpm

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA36068M

Mounting arrangementF1

Number of poles2

Overall length31.31 IN

Power factor92

Product familyOther

Pulley end bearing typeBall

Pulley face codeNo Endplate

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3555 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568603659

Motor Supply Voltage230/460 V

Base RPM3555 rpm

Mounting TypeC-Face / Foot

IP Rating44

Weight905 lbs

ApplicationsPumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberCEM4313T

CC number010A

Specification numberP36G4677

Rating40C AMB-CONT

Code letter (locked rotor kVA)-

Phase3

Insulation classF

Maximum correction (kVAR)5.00

Drive end bearing6313

Opposite drive end bearing6313

EnclosureTEFC

Frame size365TSC

GreasePOLYREX EM

Motor weight974

Usable at (V)50HZ 60HP 190/380V 156/78A

Constant torque15-60

Variable torque3-60

Constant horsepower60-75

Maximum speed (rpm)4500

Nameplate numberNP3979LUA

Documents & CAD

For this product 3

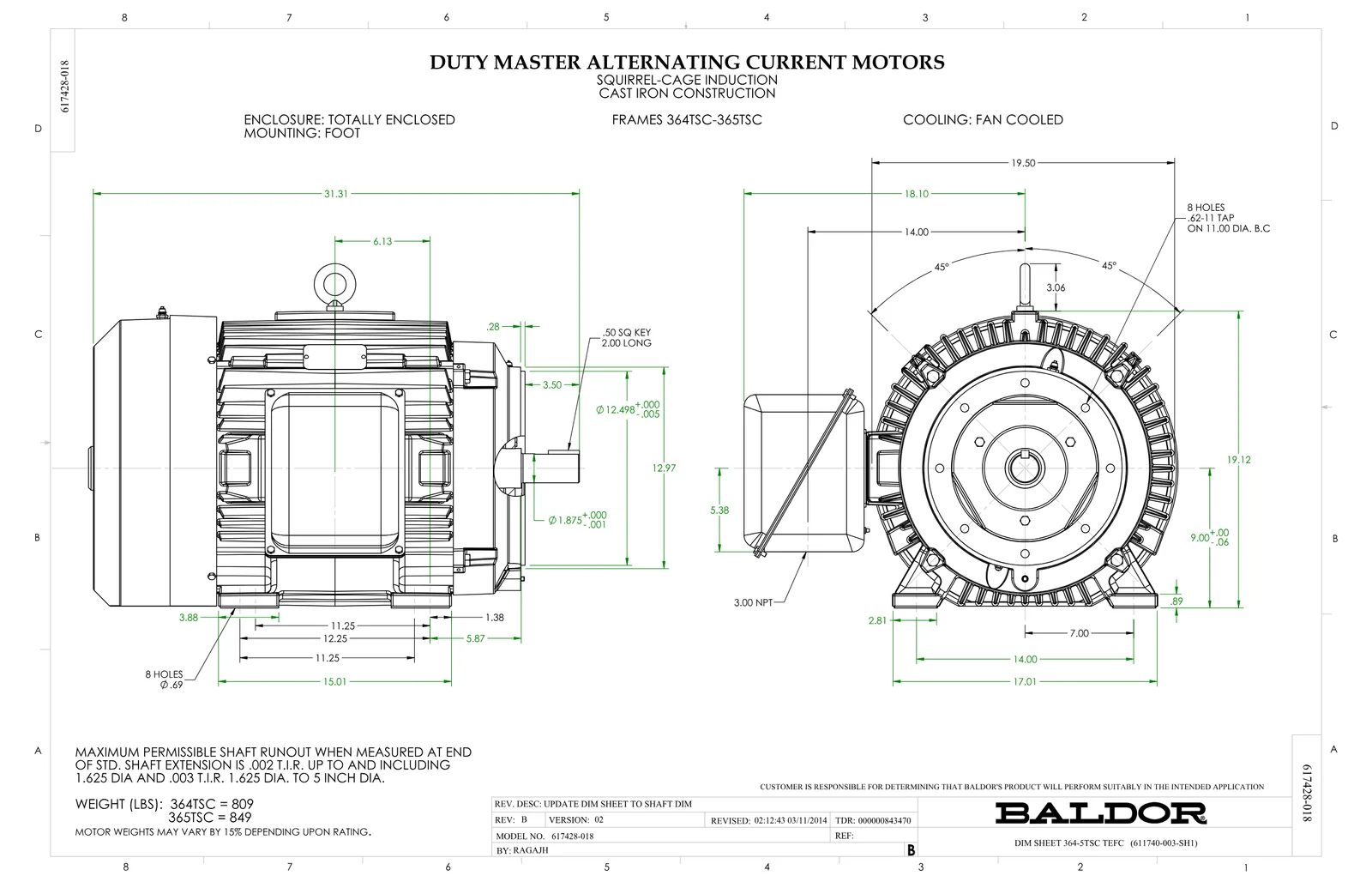

Dimension DrawingDimension SheetPDF·182 KB·English

DatasheetDatasheetPDF·650 KB·English

Performance CurvePerformance CurvePDF·90 KB·English

Series documents 1· shared by this product series

Wiring DiagramWiring DiagramPDF·28 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEM4313T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078559001A	+FANCV - 360	1 pcs	93 motors
702676001C	FAN 360	1 pcs	102 motors
077176000L	C/BOX, PAINTED 440	1 pcs	77 motors
043292000AJ	GASK 320-400	1 pcs	75 motors
