How can I get a price quote for Baldor CEM4310T?

You can request a fast quote for Baldor CEM4310T from Yılsa Engineering. Reference part number YLSBTO39BJT6KI9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CEM4310T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CEM4310T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CEM4310T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CEM4310T

General Purpose Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364TSC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CEM4310TSKU # YLSBTO39BJT6KI9

EnclosureTEFC

Frame364TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364TSC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3555 rpm Base, C-Face / Foot Mount, Continuous Duty

Features and Benefits

CEM Super-E®/XE motors have NEMA Premium® efficiency
Class F insulation
1.15 service factor
Inverter ready per NEMA standard MG 1 Part 31.4.4.2
Three-year warranty
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor

Baldor CEM4310T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364TSC

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage65.400 A @ 460.0 V · 145.000 A @ 208.0 V · 131.000 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)65.4 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeG

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)4500 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36056M

Mounting arrangementF1

Number of poles2

Overall length31.31 IN

Power factor91

Product familyOther

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3555 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568603642

Motor Supply Voltage230/460 V

Base RPM3555 rpm

Mounting TypeC-Face / Foot

Weight830 lbs

ApplicationsPumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberCEM4310T

CC number010A

Specification numberP36G4676

Rating40C AMB-CONT

Code letter (locked rotor kVA)-

Phase3

Insulation classF

Maximum correction (kVAR)5

Drive end bearing6313

Opposite drive end bearing6313

EnclosureTEFC

Frame size364TSC

GreasePOLYREX EM

Motor weight870

Usable at (V)50HZ 50HP 190/380V 132/66A

Constant torque15-60

Variable torque3-60

Constant horsepower60-75

Maximum speed (rpm)4500

Nameplate numberNP3979LUA

Documents & CAD

For this product 1

DatasheetDatasheetPDF·671 KB·English

Series documents 3· shared by this product series

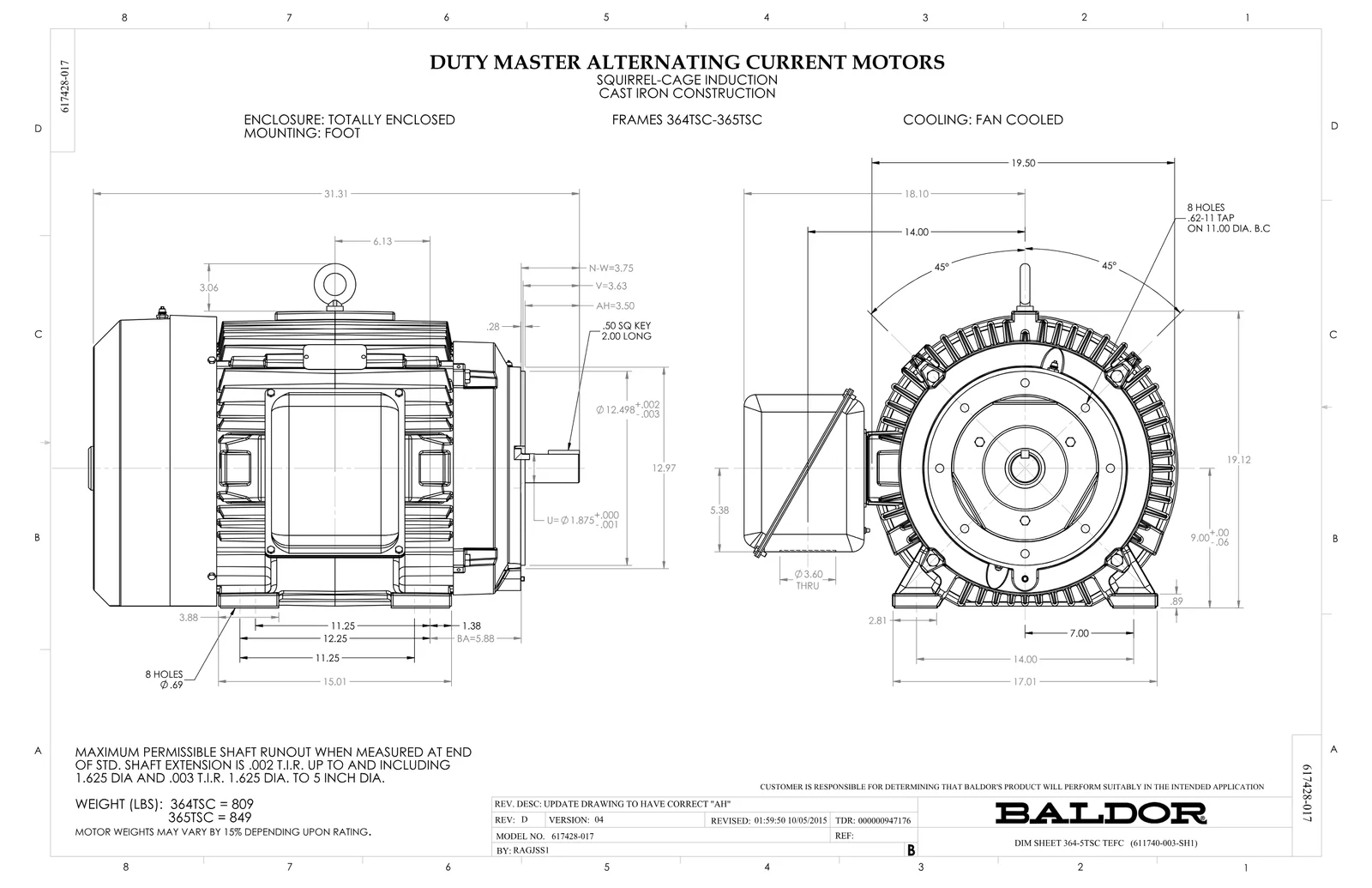

Dimension DrawingDimension SheetPDF·181 KB·English

Wiring DiagramWiring DiagramPDF·28 KB·English

Performance CurvePerformance CurvePDF·113 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CEM4310T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078559001A	+FANCV - 360	1 pcs	93 motors
702675001C	FAN 360	1 pcs	18 motors
077176000L	C/BOX, PAINTED 440	1 pcs	77 motors
043292000AJ	GASK 320-400	1 pcs	75 motors
