Baldor CEM2531T

General Purpose Motor - 25 hp, 1800 rpm, 3 ph, 230/460 V, 284TC Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # CEM2531TSKU # YLS4YM111T79JQQ

EnclosureOPSB

Frame284TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 25 hp, 1800 rpm, 3 ph, 230/460 V, 284TC Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, C-Face / Foot Mount, Continuous Duty

Features and Benefits

Copper windings, ball bearings and heavy-duty steel or cast iron frames
Mount in any position
CEM Super-E®/XE motors have NEMA Premium® efficiency
Three-year warranty
Applications: Pumps, compressors, fans, conveyors, machine tools and other general-purpose three phase applications

Baldor CEM2531T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame284TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage64.000 A @ 208.0 V · 60.000 A @ 230.0 V · 30.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)30.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type4050M

Mounting arrangementF1

Number of poles4

Overall length25.06 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568540961

Motor Supply Voltage230/460 V

Base RPM1775 rpm

Mounting TypeC-Face / Foot

Weight336 lbs

ApplicationsPumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.

Additional DetailsPressure cast aluminum end plates with ribbed design for rigidity, ball bearings, locked drive end bearing, heavy gauge steel frame.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberCEM2531T

EnclosureOPSB

Specification number40D102X806G1

CC number010A

Frame size284TC

Horsepower (HP)25

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterA

Voltage (V)230/460

Code letter (locked rotor kVA)G

Opposite drive end bearing6309

Drive end bearing6311

Current (A)60/30

Rating40C AMB-CONT

NEMA nominal efficiency (%)93.6

GreasePOLYREX EM

Power factor82

Service factor1.15

Usable at (V)50HZ 25HP 190/380V 72/36A

Nameplate numberNP3554LUA

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.35407 Ω

Temperature rise at rated load (°C)28° C

Temperature rise at service factor load (°C)34° C

Start configurationDOL

Breakdown torque232 lb-ft

Pull-up torque116 lb-ft

Locked-rotor torque133 lb-ft

Starting current (A)192 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	45	67	78	82	85	85	84
Efficiency %	0	89.4	93.1	93.8	93.6	93	92.1	93.2
Speed rpm	1799	1794.8	1789.5	1783.7	1777.6	1771	1763.2	1774
Line amps A	12.6	14.5	18.6	24.1	30.3	37.2	44.6	34.4
Power W	496	5226	10015	14919	19910	25061	30337	23001
Torque lb-ft	0	18.34	36.69	55.24	73.81	92.68	111.7	85.1

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·634 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

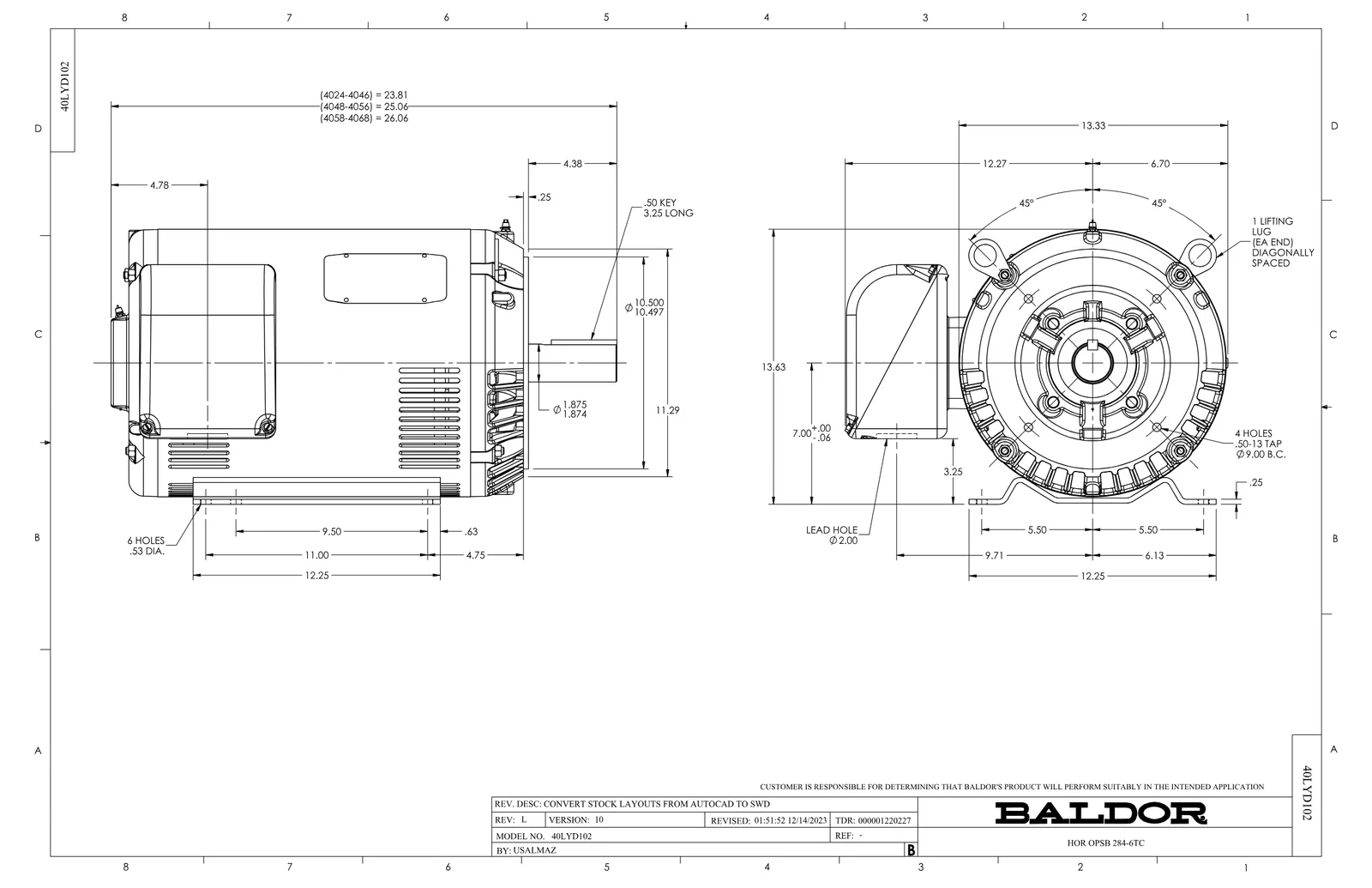

Dimension DrawingDimension SheetPDF·146 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CEM2531T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.07 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
