Baldor CECG352050T-4

Baldor CECG352050T-4 is a 460 VAC, 5 HP, 3600 rpm AC electric motor with a 184TC frame and TENV enclosure.

BaldorMFR # CECG352050T-4SKU # YLSDZUEL47XMKFT

EnclosureTENV

Frame184TC

Maximum speed (rpm)5000 rpm

Peak torque55.0 Nm

Rated torque15.70 Nm

Shaft diameter1.125 IN

Have questions?Chat on WhatsApp

About This Product

Baldor CECG352050T-4 is a 460 VAC, 5 HP, 3600 rpm AC electric motor with a 184TC frame and TENV enclosure.

Baldor CECG352050T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame184TC

Maximum speed (rpm)5000 rpm

Peak torque55.0 Nm

Rated torque15.70 Nm

Shaft diameter1.125 IN

Speed (rpm)2000 rpm

Agency approvalsCURUS

Ambient temperature (°C)25 °C

Base indicatorRigid

Bearing grease typePolyrex EM

Connection diagramCD0006A02

Duty ratingCONT

Frame materialSteel

Frame suffixTC

Insulation classF

Motor lead exitFront End

Motor lead quantity/wire size3 @ 14 AWG

Mounting arrangementF1

Nameplate output5

Nameplate speed (rpm)3600

Output power2.980 KW

Peak current (A)18.0 a

RoHS statusROHS COMPLIANT

Rotor inertia (servo).08556

Service factor1.00

UPC781568881378

Documents & CAD

For this product 4

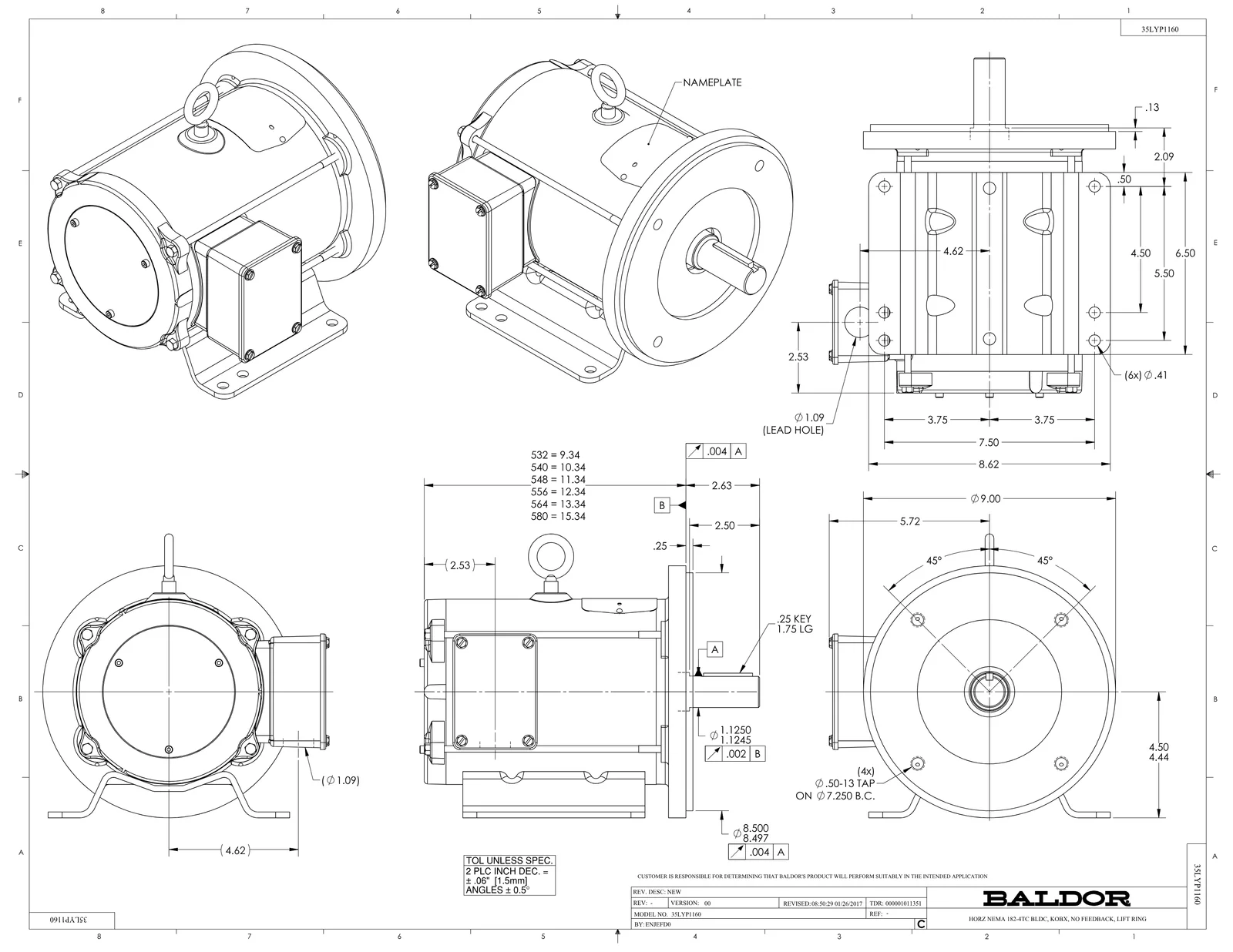

Dimension DrawingDimension SheetPDF·149 KB·English

Wiring DiagramWiring DiagramPDF·24 KB·English

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·555 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CECG352050T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.018 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
