Baldor CDPX3545

Baldor CDPX3545 is a 1 HP, 1750 rpm hazardous location DC electric motor with a 56C frame, XPFC enclosure and F1 mounting.

BaldorMFR # CDPX3545SKU # YLS0PKN0E8MG1NG

Armature voltage (V)90 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56C

Frame materialSteel

Output power1.000 HP

Have questions?Chat on WhatsApp

About This Product

Baldor CDPX3545 is a 1 HP, 1750 rpm hazardous location DC electric motor with a 56C frame, XPFC enclosure and F1 mounting.

Baldor CDPX3545

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)90 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56C

Frame materialSteel

Output power1.000 HP

Hazardous area class and groupCLI GP D; CLII GP F,G

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Armature current (A)9.6 a

Armature inertia30.342 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG

Mounting arrangementF1

Overall length18.36 IN

Product familyHazardous Location Motor

Pulley end bearing typeSealed Bearing

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Hazardous area divisionDivision I

Hazardous area temperature codeT3C

UPC781568134009

Performance

General characteristics· 90 Arm V, 1 HP

Armature resistance (ohms)0.245 ohms

Armature inductance (mH)3.789 mH

Armature inertia30.3419 LI²

Documents & CAD

For this product 2

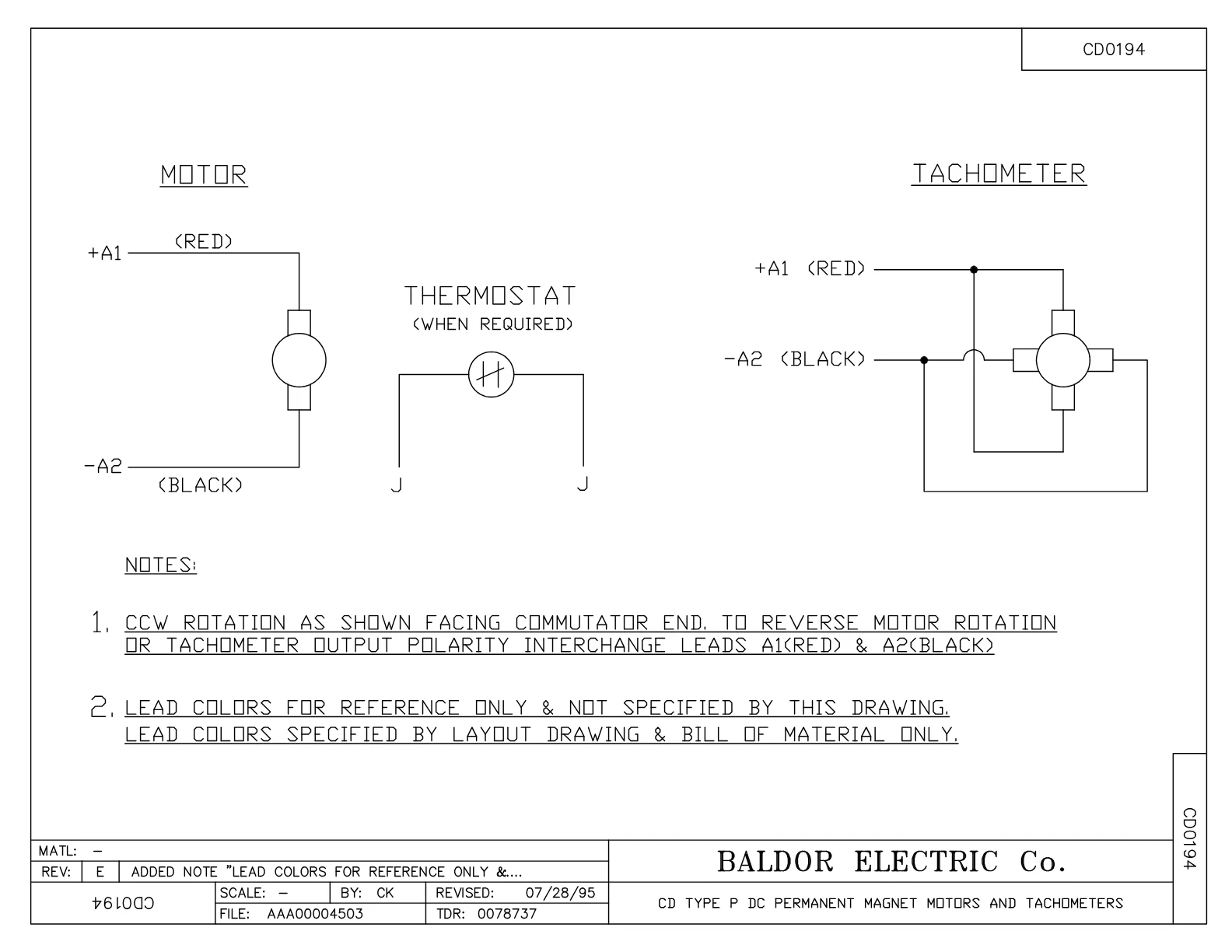

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·598 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·137 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor CDPX3545 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
