Baldor CDPSWD3406

DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

BaldorMFR # CDPSWD3406SKU # YLSI9VIIZBT0LD0

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Output power0.250 HP

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

Baldor CDPSWD3406

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Output power0.250 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)1.3 a

Armature inertia5.073 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG

Mounting arrangementF1

Overall length12.16 IN

Product familyWash Down Paint Free

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568220948

Motor TypeBrushed

Motor Horsepower1/4 hp

Weight28.00 lbs

Performance

General characteristics· 180 Arm V, 0.25 HP

Armature resistance (ohms)7.81 ohms

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·560 KB·English

Series documents 1· shared by this product series

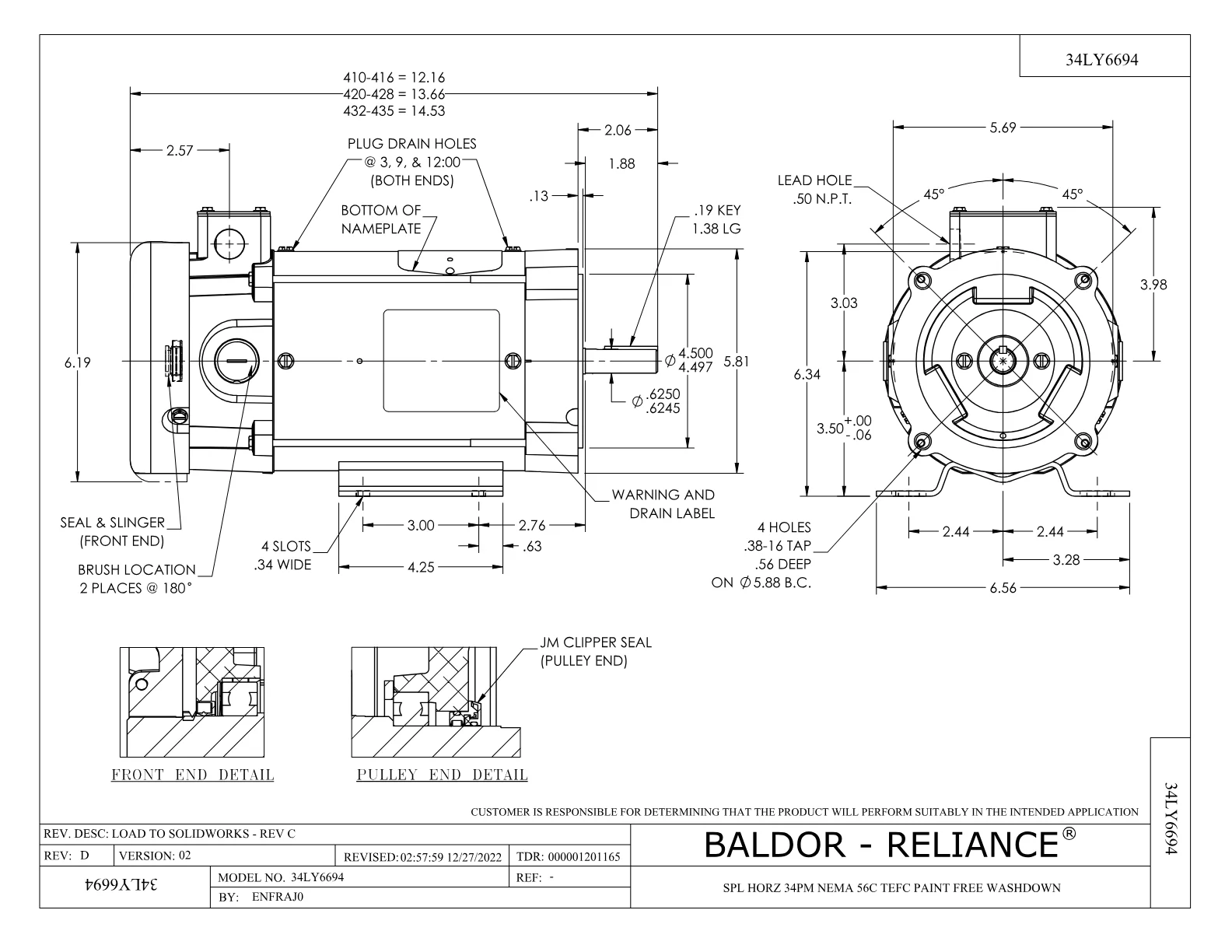

Dimension DrawingDimension SheetPDF·101 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor CDPSWD3406 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5000AW14SP	CARBON BRUSH - 33P, 180 VOLTS	1 pcs	28 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
