Baldor CDP3420-V24

DC Electric Motor - Permanent Magnet, Brushed, 24 V, 1800 rpm rpm, TENV (Totally Enclosed Non-Ventilated), 56C Frame

BaldorMFR # CDP3420-V24SKU # YLS5V80CCGKF51K

Armature voltage (V)24 V

Base speed (rpm)1800 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.333 HP

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Permanent Magnet, Brushed, 24 V, 1800 rpm rpm, TENV (Totally Enclosed Non-Ventilated), 56C Frame

Features and Benefits

NEMA C-face
Class F insulation
Double sealed ball bearings
Top-mounted terminal studs
Not tach adaptable
1/4 HP to 1/2 HP are TENV
3/4 HP to 1 HP are TEFC
Applications: Battery operation for portable pumps, fans, augers, winches and lifts

Baldor CDP3420-V24

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)24 V

Base speed (rpm)1800 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.333 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)13.6 a

Armature inertia5.510 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG

Mounting arrangementF1

Overall length11.60 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568388143

Motor TypeBrushed

Motor Horsepower1/3 hp

Weight30.00 lbs

Performance

General characteristics· 24 Arm V, 0.333 HP

Armature resistance (ohms)0.129 ohms

Armature inductance (mH)0.936 mH

Armature inertia5.5096 LI²

Documents & CAD

For this product 2

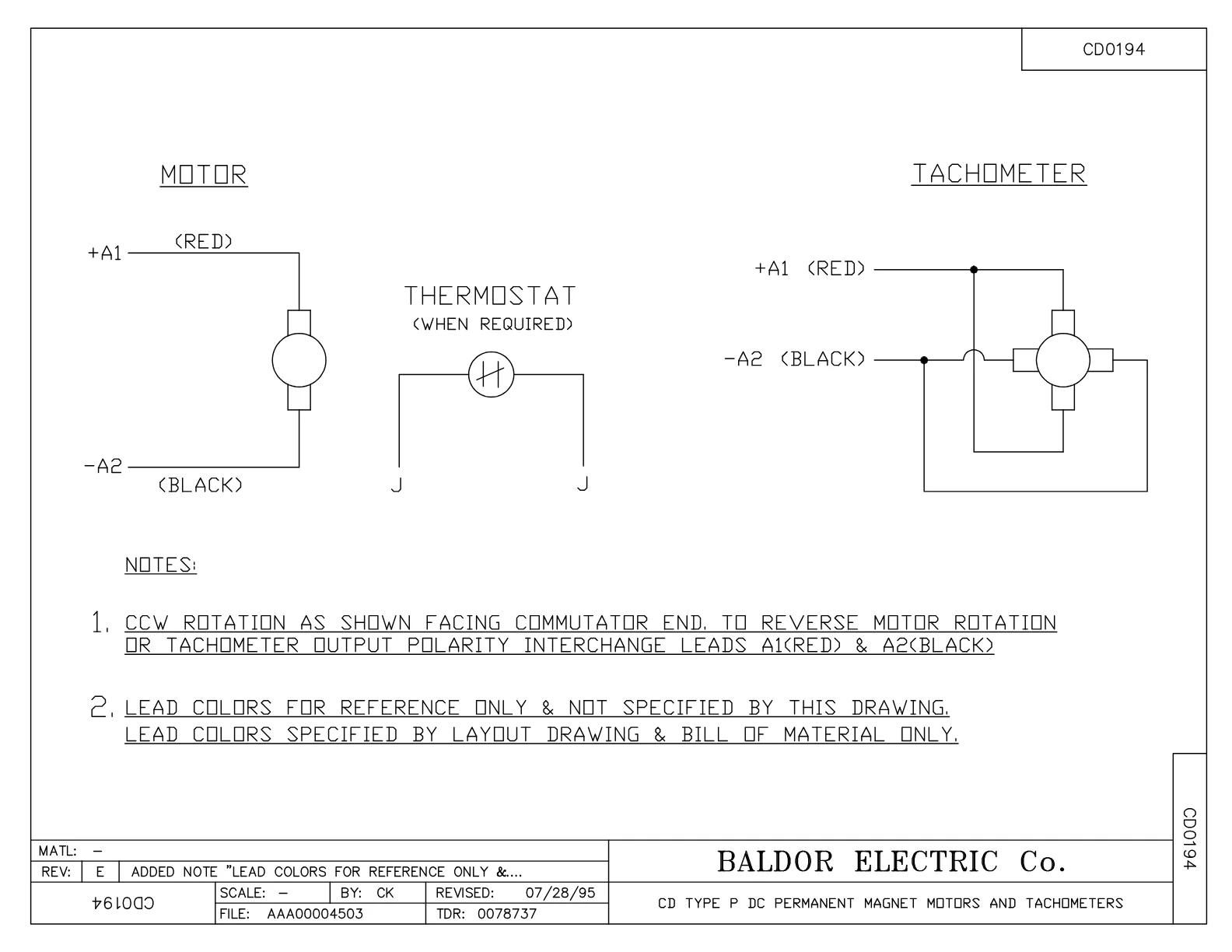

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·548 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·88 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor CDP3420-V24 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
