Baldor CDP3316

Baldor CDP3316 is a 0.33 HP, 1750 rpm general purpose DC electric motor with a 56C frame, TENV enclosure and F1 mounting.

BaldorMFR # CDP3316SKU # YLSOTGN90S2J3M

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.330 HP

Have questions?Chat on WhatsApp

About This Product

Baldor CDP3316 is a 0.33 HP, 1750 rpm general purpose DC electric motor with a 56C frame, TENV enclosure and F1 mounting.

Baldor CDP3316

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTENV

Frame56C

Frame materialSteel

Output power0.330 HP

Agency approvalsCE · CSA · UKCA · UR · WEEE

Ambient temperature (°C)40 °C

Armature current (A)1.6 a

Armature inertia6.318 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 18 AWG

Mounting arrangementF1

Overall length13.19 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

UPC781568124413

Performance

General characteristics· 180 Arm V, 0.33 HP

Armature resistance (ohms)4.331 ohms

Armature inductance (mH)39.666 mH

Documents & CAD

For this product 2

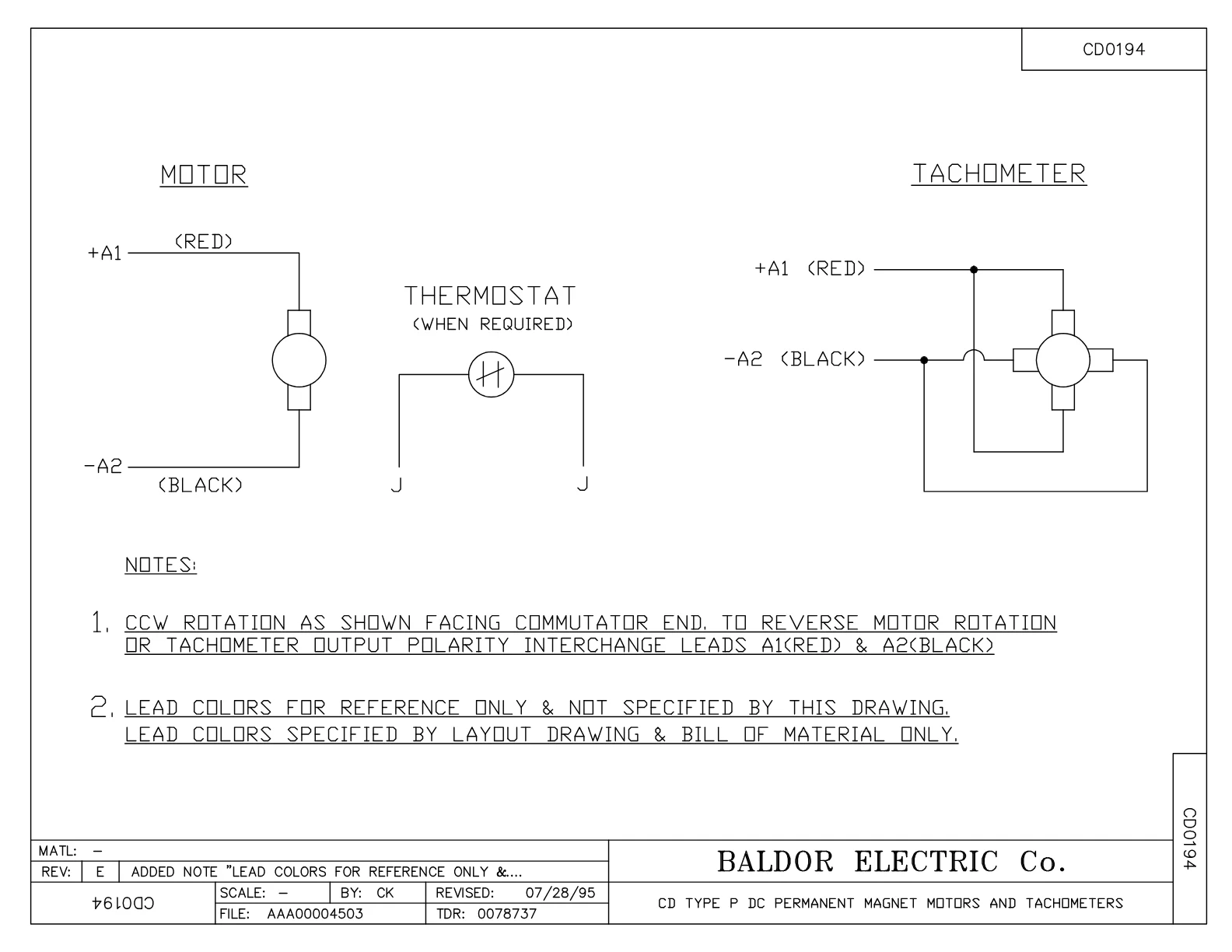

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·576 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CDP3316 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5011CV01SP	CARBON BRUSH - 33P, 180V	1 pcs	23 motors
BP5012A04SP	BRUSH SPRING FOR DC MOTORS	1 pcs	33 motors
33RK5004SP	ROCKERARM	1 pcs	26 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor CDP3316 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
