Baldor CDMG2325

DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 328ATC Frame

BaldorMFR # CDMG2325SKU # YLS5NW7GQ2BNTBK

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)230 V

Frame328ATC

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 328ATC Frame

Baldor CDMG2325

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)230 V

Frame328ATC

Frame materialSteel

Output power25.000 KW

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)109.0 a

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeCOMPOUND

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF2

Overall length34.63 IN

Service factor1.00

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568215678

Motor FamilyPermanent Magnet

Motor TypeBrushed

Motor Horsepower25 hp

Field Full Load Current2.13 A

Weight878.00 lbs

Documents & CAD

For this product 2

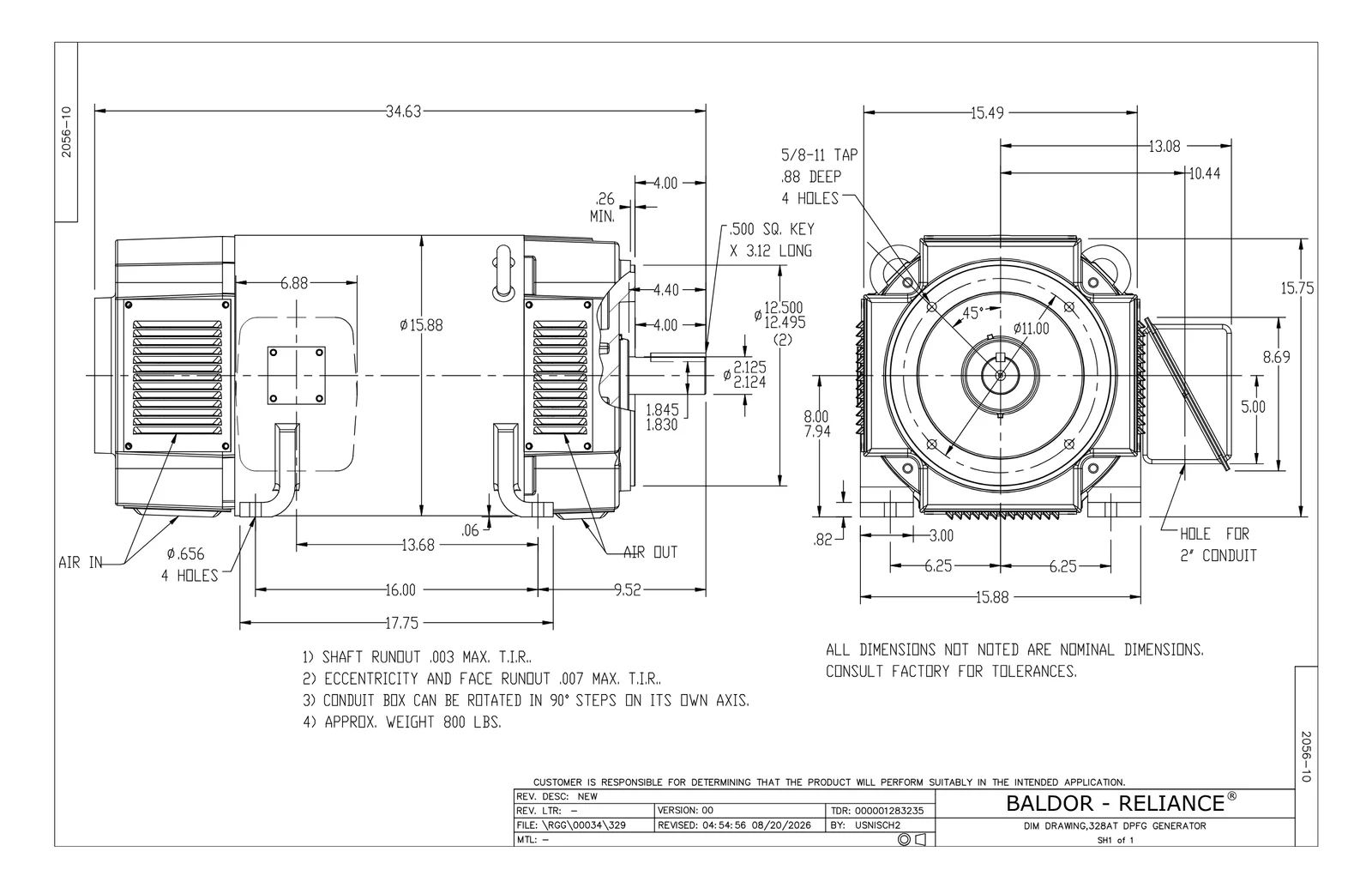

Dimension DrawingDimension SheetPDF·108 KB·English

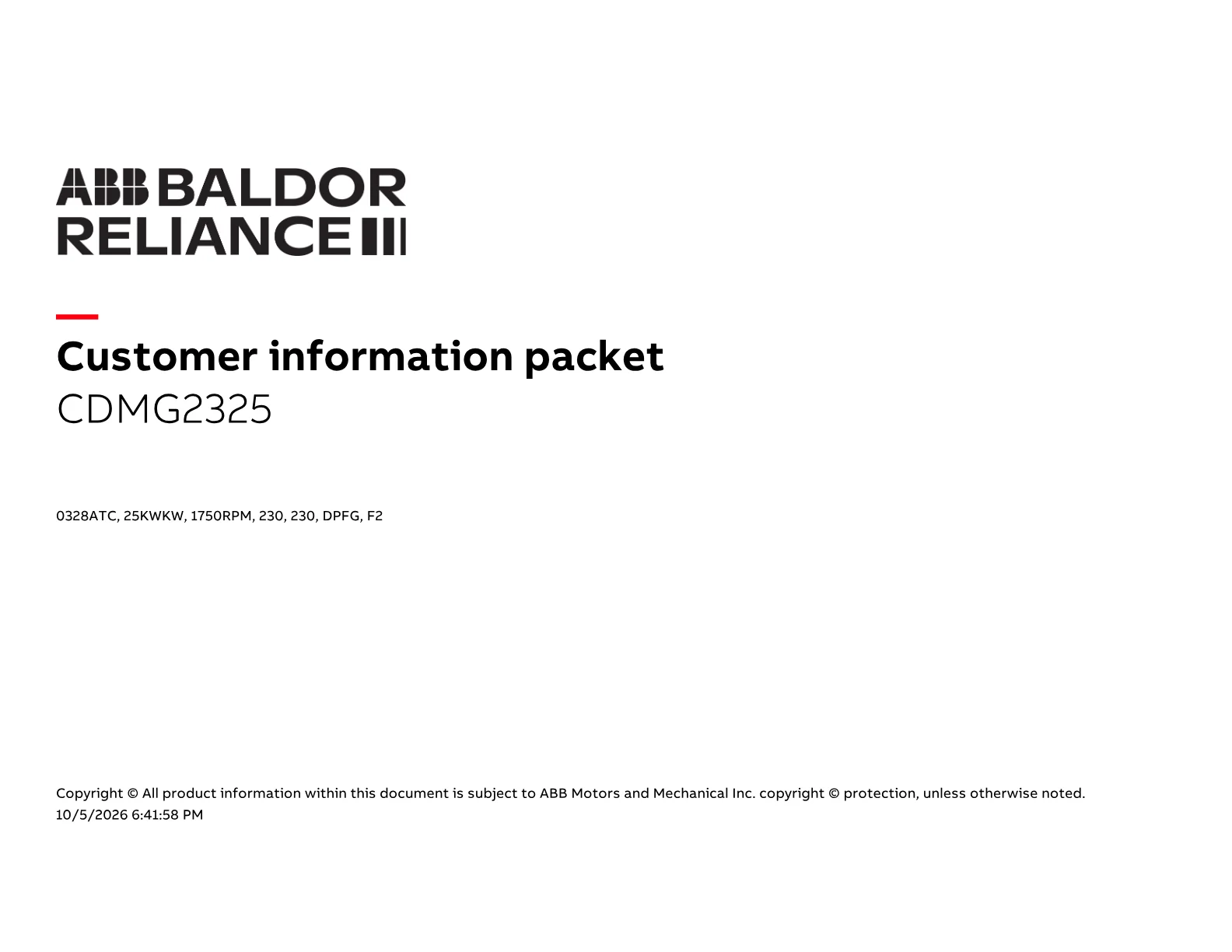

DatasheetDatasheetPDF·472 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CDMG2325 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
