How can I get a price quote for Baldor CDMG2320?

You can request a fast quote for Baldor CDMG2320 from Yılsa Engineering. Reference part number YLS0LMQ69LFPIGL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor CDMG2320 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor CDMG2320 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor CDMG2320?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor CDMG2320

DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 288ATC Frame

BaldorMFR # CDMG2320SKU # YLS0LMQ69LFPIGL

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)230 V

Frame288ATC

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 288ATC Frame

Baldor CDMG2320

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)230 V

Base speed (rpm)1750 rpm

EnclosureDPFG

Field voltage (V)230 V

Frame288ATC

Frame materialSteel

Output power20.000 KW

Agency approvalsCSA

Ambient temperature (°C)40 °C

Armature current (A)87.0 a

Base indicatorRigid

Bearing grease typeNo Grease

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeCOMPOUND

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Mounting arrangementF2

Overall length32.00 IN

Service factor1.00

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Thermal device - bearingNone

UPC781568215661

Motor FamilyPermanent Magnet

Motor TypeBrushed

Motor Horsepower20 hp

Field Full Load Current1.80 A

Weight780.00 lbs

Documents & CAD

For this product 2

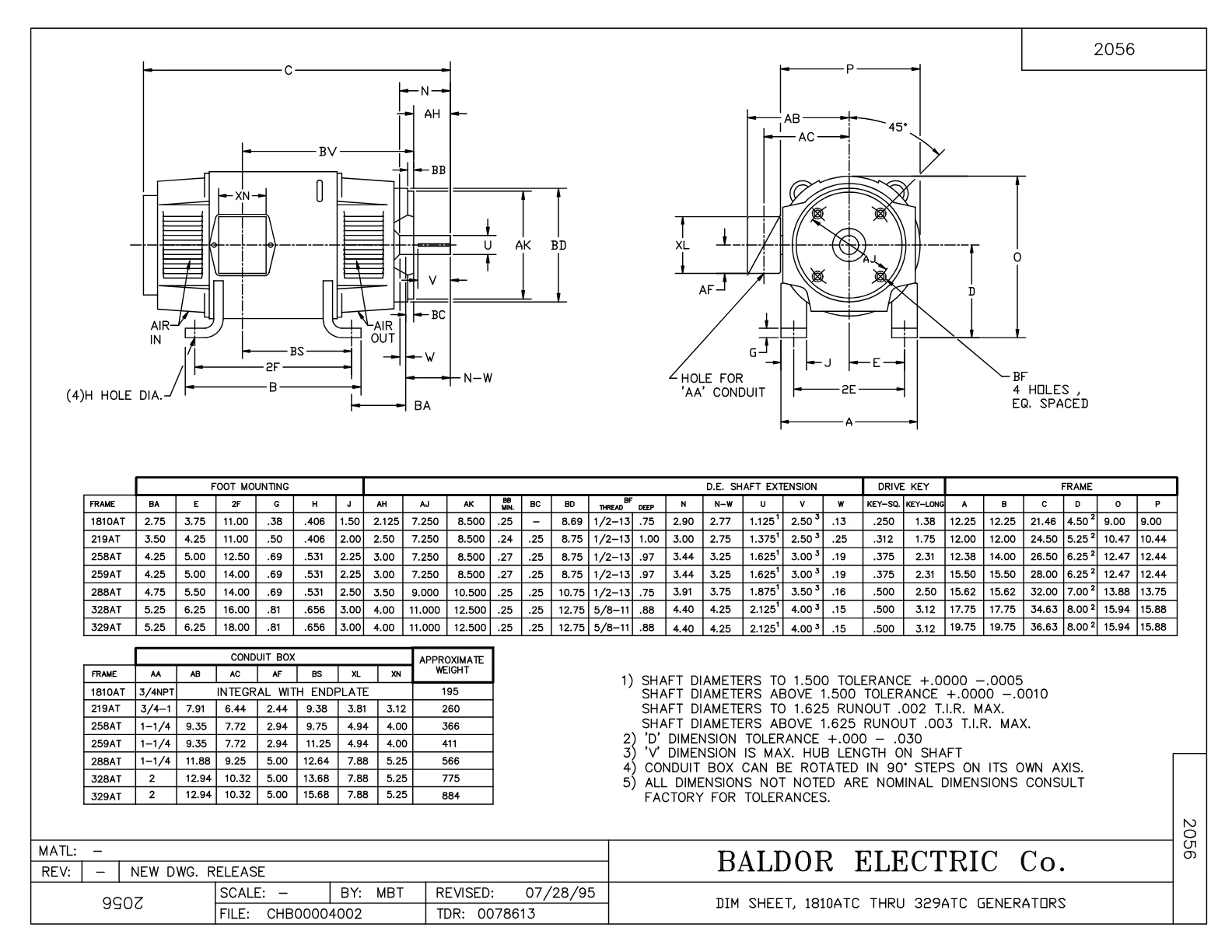

Dimension DrawingDimension SheetPDF·123 KB·English

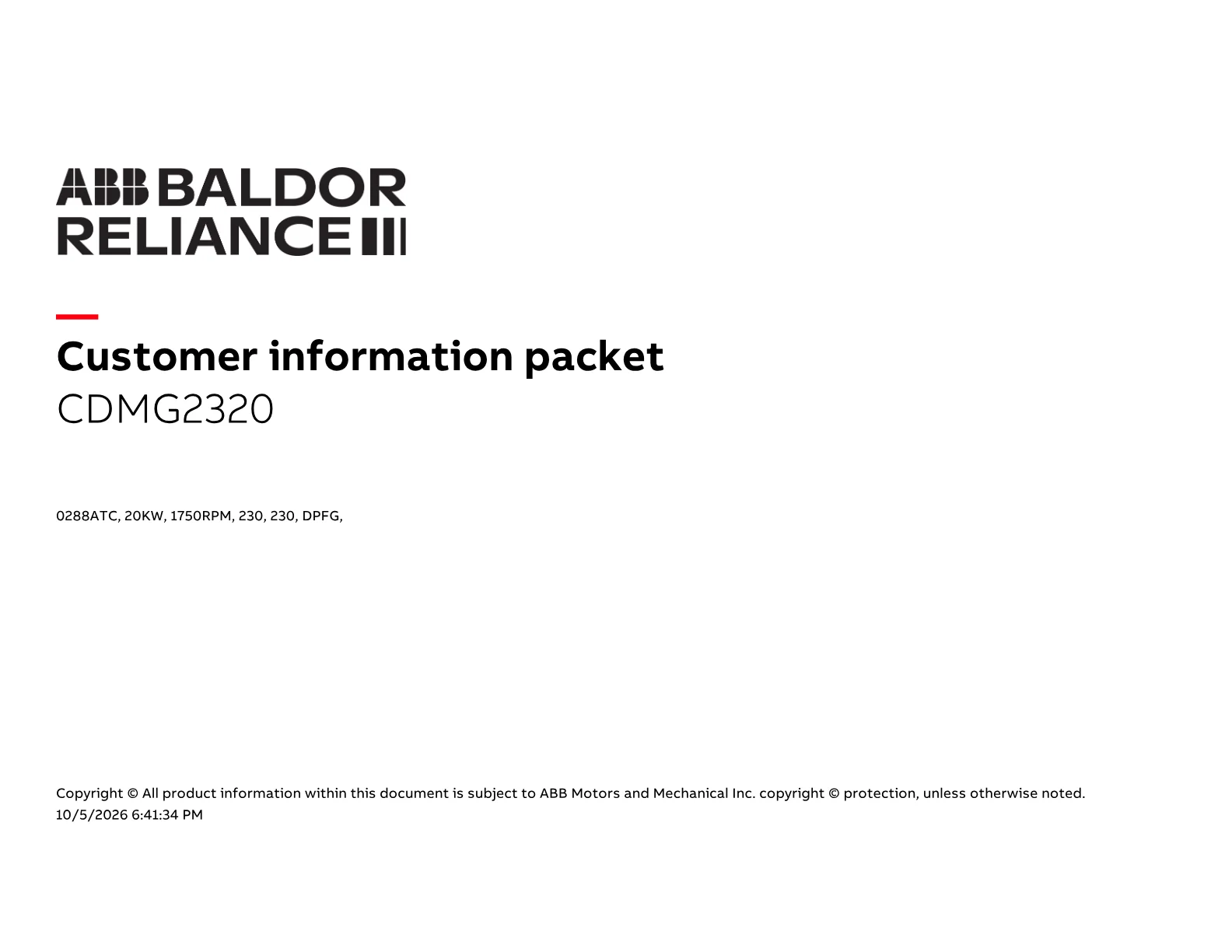

DatasheetDatasheetPDF·503 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor CDMG2320 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
