Baldor CD6218

Baldor CD6218 is a 1 HP, 1750 rpm general purpose DC electric motor with a 184C frame, TEFC enclosure and F1 mounting.

BaldorMFR # CD6218SKU # YLS8VOJJL6FSEH8

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)100 V · 200 V

Frame184C

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

Baldor CD6218 is a 1 HP, 1750 rpm general purpose DC electric motor with a 184C frame, TEFC enclosure and F1 mounting.

Baldor CD6218

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)100 V · 200 V

Frame184C

Frame materialSteel

Output power1.000 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)5.0 a

Armature inertia19.385 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 18 AWG · 2 @ 12 AWG

Mounting arrangementF1

Overall length15.63 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568124802

Performance

General characteristics· 180 Arm V, 1 HP

Armature resistance (ohms)1.7818 ohms

Commutating winding resistance (ohms)0.9431 ohms

Shunt winding resistance (ohms)364.759 ohms

Documents & CAD

For this product 2

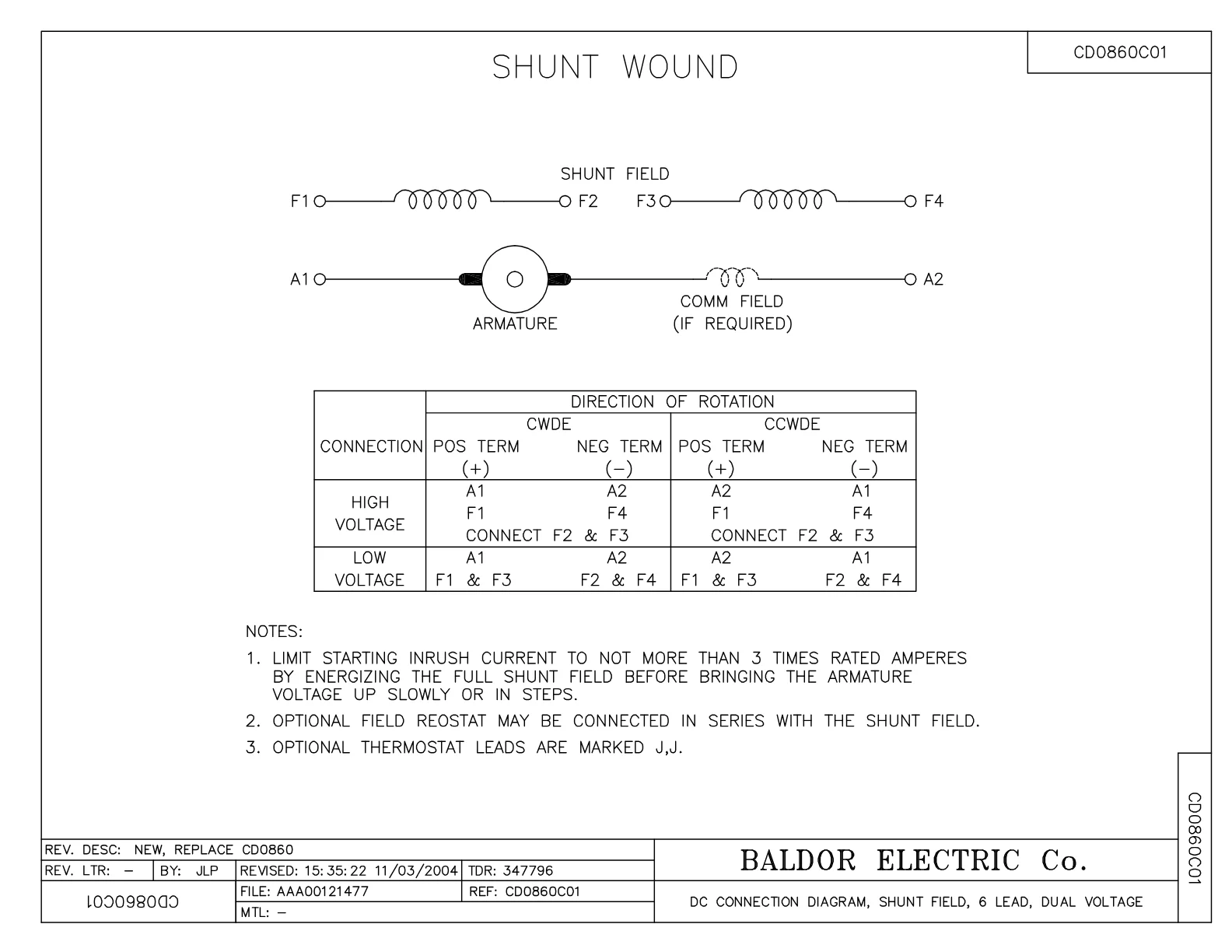

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·601 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·118 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CD6218 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36CB3000SP	CONDUIT BOX, CAST	1 pcs	35 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
36GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK #SV-3	1 pcs	8 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
