Baldor CD3476

DC Electric Motor - Shunt Wound, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

BaldorMFR # CD3476SKU # YLSZ5QMHIHJTKYA

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)100 V · 200 V

Frame56C

Frame materialSteel

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Shunt Wound, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

Baldor CD3476

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

Field voltage (V)100 V · 200 V

Frame56C

Frame materialSteel

Output power0.750 HP

Hazardous area class and groupNone

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Armature current (A)3.9 a

Armature inertia6.552 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Field winding typeSHUNT

Heater indicatorNo Heater

Insulation classF

Lifting lugsNo Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG · 4 @ 18 AWG

Mounting arrangementF3

Overall length14.84 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsNEMA

Hazardous area divisionNot Applicable

UPC781568124758

Motor TypeBrushed

Motor Horsepower3/4 hp

Field Full Load Current0.3/0.6 A

Drive End Bearing6203

Weight34.00 lbs

Opposite Drive End Bearing6203

Recommended ControlBc140

Typical ApplicationConveyors, Printing, Textile Equipment, Machine Tools and Other Equipment Requiring Variable Speeds with Constant Torque

Performance

General characteristics· 180 Arm V, 0.75 HP

Armature resistance (ohms)4.207 ohms

Shunt winding resistance (ohms)314.5 ohms

Documents & CAD

For this product 2

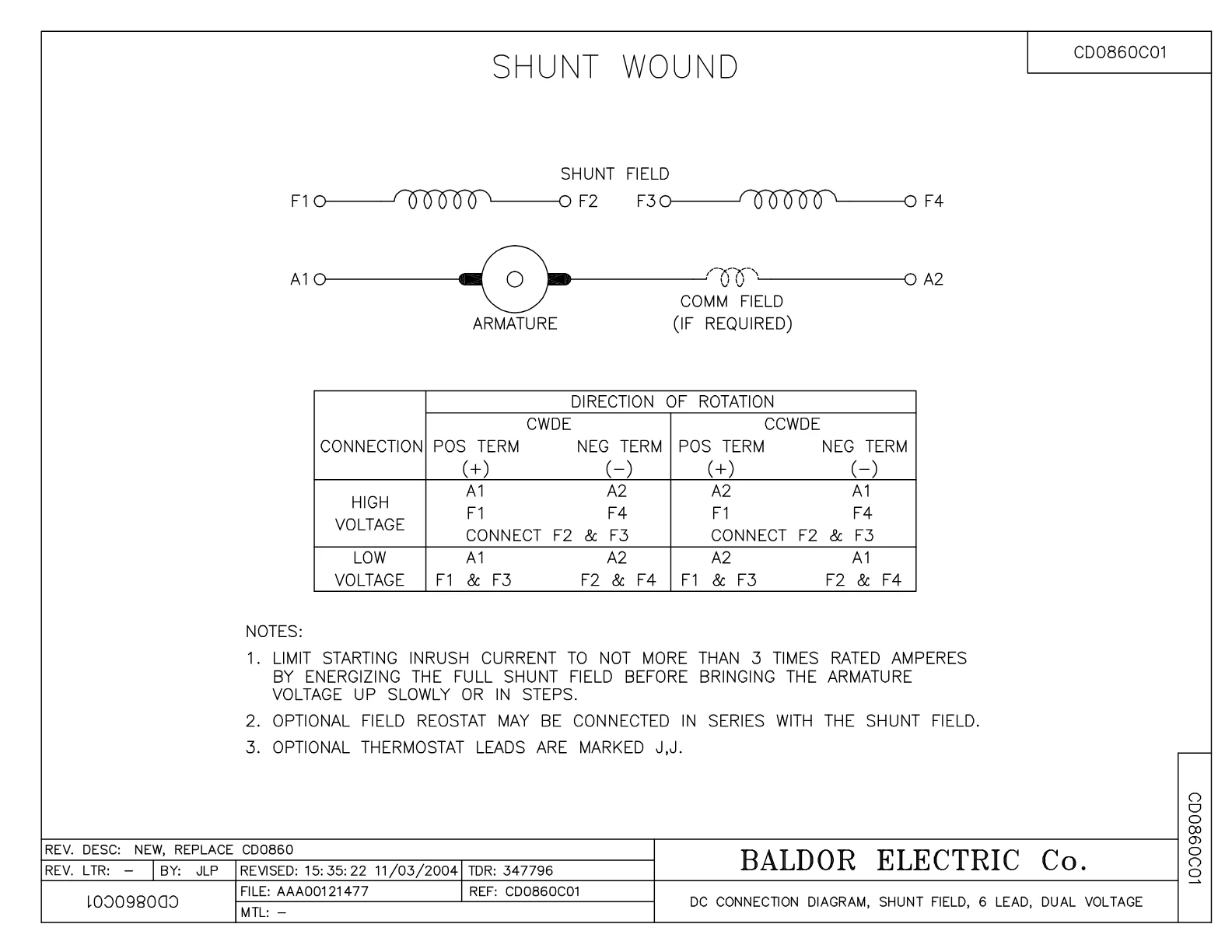

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·571 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·88 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CD3476 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5201A10SP	BRUSH HOLDER ASSY W/BP4509A01 & B	1 pcs	12 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH5002A01SP	FAN COVER ASSY W/SHAFT COVER	1 pcs	37 motors
BP5000H03SP	BRUSH ASSY, GRADE H619	1 pcs	12 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor CD3476 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
