Baldor CCPX282546T

Baldor CCPX282546T is an explosion-proof (XPFC) three-phase AC motor with chemical process features, rated 25 HP @ 60 Hz / 20 HP @ 50 Hz, 1775/1475 rpm, 3 phase 230/460 V 60 Hz and 190/380 V 50 Hz, with 284TCY frame.

BaldorMFR # CCPX282546TSKU # YLSCLHJPCFCZBGZ

EnclosureTEFC

Frame284TCY

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ · 25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CCPX282546T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284TCY

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ · 25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP E,F,G

Hazardous area divisionDivision I

Agency approvalsCSA EEV · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage62.000 A @ 230.0 V · 64.000 A @ 208.0 V · 60.000 A @ 190.0 V · 31.000 A @ 460.0 V · 30.000 A @ 380.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)30.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingIP55

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead terminationFlying Leads

Motor type1054M

Mounting arrangementF1

Number of poles4

Overall length28.61 IN

Power factor81

Product familyChemical Process Features

Pulley face codeC-Face

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568913048

Nameplate

CC number010A

Temperature codeT3C

Specification number10-0000-0739

Inverter typePWM

Catalog numberCCPX282546T

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP)25//20

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)230/460//190/380

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)62/31//60/30

Magnetizing current (A)28/14

Speed (rpm)1775//1475

Maximum speed (rpm)2700

Frequency (Hz)60//50

Phase3

Insulation classF

Nominal efficiency (%)93.6

Service factor1.00

NEMA design letterA

SL HZ0.83

Inertia (WK²)4.13

Frame size284TCY

Rating40C AMB-CONT

Nameplate numberNP2033XPSLEV

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.2345 Ω

Temperature rise at rated load (°C)51° C

Start configurationDOL

Breakdown torque262 lb-ft

Pull-up torque118 lb-ft

Locked-rotor torque142 lb-ft

Starting current (A)223 A

Line-to-line resistance at 25 °C (ohms)0.231 Ω

Temperature rise at rated load (°C)48° C

Temperature rise at service factor load (°C)58° C

Start configurationDOL

Breakdown torque254 lb-ft

Pull-up torque121 lb-ft

Locked-rotor torque146 lb-ft

Starting current (A)213 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	5	43	65	76	81	84	85
Efficiency %	0	88.3	92.8	93.9	94	93.7	93.1
Speed rpm	1798.9	1794.1	1789.3	1783.5	1777.8	1770.8	1763.8
Line amps A	13.6	15.3	19.3	24.6	30.6	37.2	44.5
Power W	572	5259	10099	14925	19874	24862	30052
Torque lb-ft	0	18.24	36.9	55.32	74.02	92.65	111.8

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·184 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

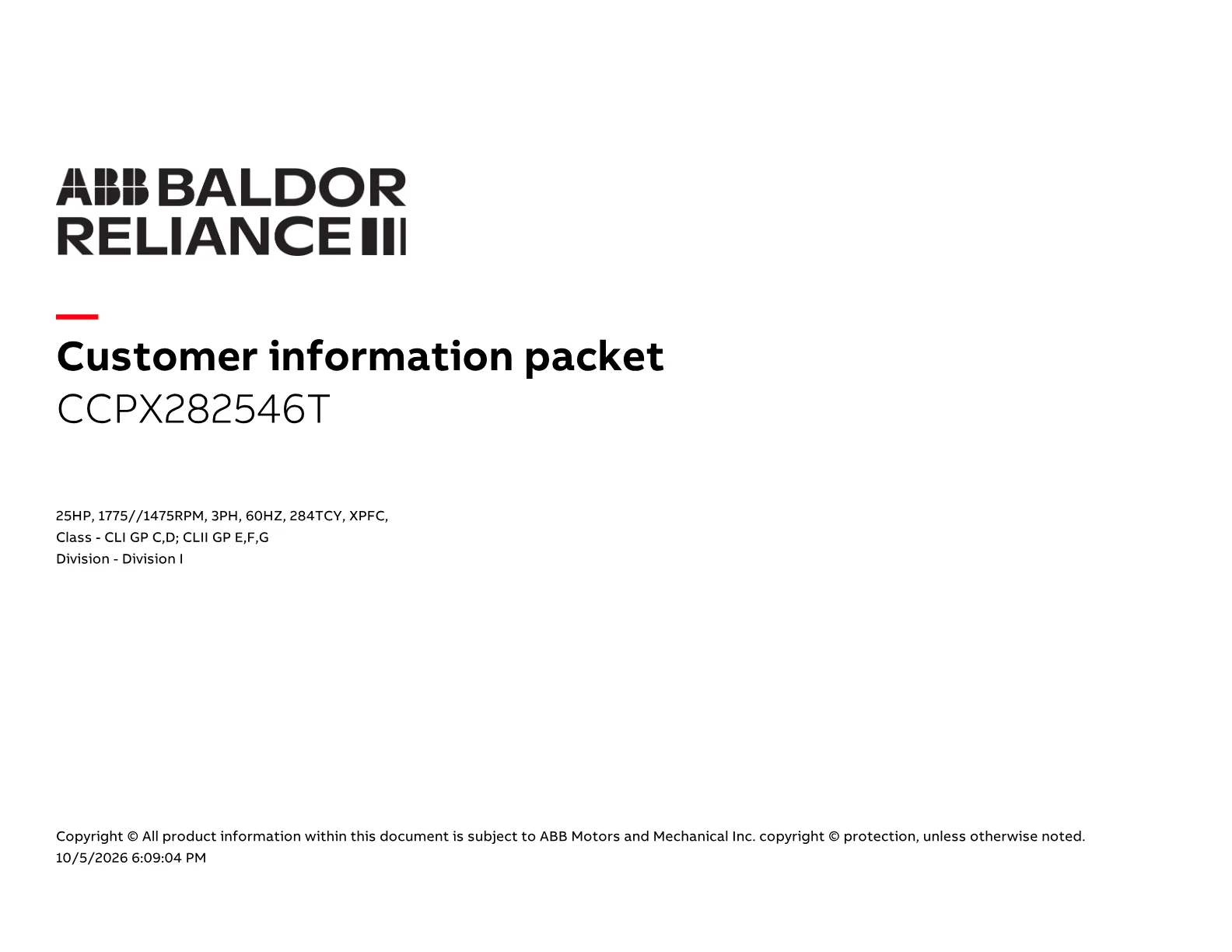

DatasheetDatasheetPDF·749 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor CCPX282546T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	7 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
