Baldor CBXMN050542

Baldor CBXMN050542 is a general purpose three-phase AC motor rated 0.5 HP, 1770 rpm, 3 phase 208/230/460 V 60 Hz, with 56C frame and TENV enclosure.

BaldorMFR # CBXMN050542SKU # YLS5QBKBDC71QY

EnclosureTENV

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CBXMN050542 is a general purpose three-phase AC motor rated 0.5 HP, 1770 rpm, 3 phase 208/230/460 V 60 Hz, with 56C frame and TENV enclosure.

Baldor CBXMN050542

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · CSA EEV · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage1.900 A @ 208.0 V · 1.800 A @ 230.0 V · .900 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.9 a

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

IP ratingNONE

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead terminationFlying Leads

Motor type3512M

Mounting arrangementF1

Number of poles4

Overall length12.19 IN

Power factor62

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568970102

Nameplate

Temperature codeT3C

Specification number35-0000-1383

Inverter typePWM

Catalog numberCBXMN050542

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP).5

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)208-230/460

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)1.9-1.8/0.9

Magnetizing current (A)1.3-1.6/0.8

Speed (rpm)1770

Maximum speed (rpm)2700

Frequency (Hz)60

Phase3

Insulation classH

Nominal efficiency (%)80

Service factor1.00

NEMA design letterB

SL HZ1

Inertia (WK²)0.087

Frame size56C

Rating40C AMB-CONT

Nameplate numberNP0887XPSL

Performance

General characteristics· 460 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)43.2 Ω

Temperature rise at rated load (°C)58° C

Temperature rise at service factor load (°C)68° C

Start configurationDOL

Breakdown torque6.28 lb-ft

Pull-up torque3.26 lb-ft

Locked-rotor torque4.04 lb-ft

Starting current (A)6.71 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	12	27	41	52	62	69	75	69
Efficiency %	0	56.5	70.7	76.5	78.9	80	80	80
Speed rpm	1798	1792	1786	1779	1771	1763	1755	1763
Line amps A	0.792	0.795	0.827	0.889	0.966	1.06	1.18	1.06
Power W	73.2	171	267	370	475	585	701	585
Torque lb-ft	0	0.38	0.744	1.12	1.49	1.87	2.25	1.87

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·616 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 2· shared by this product series

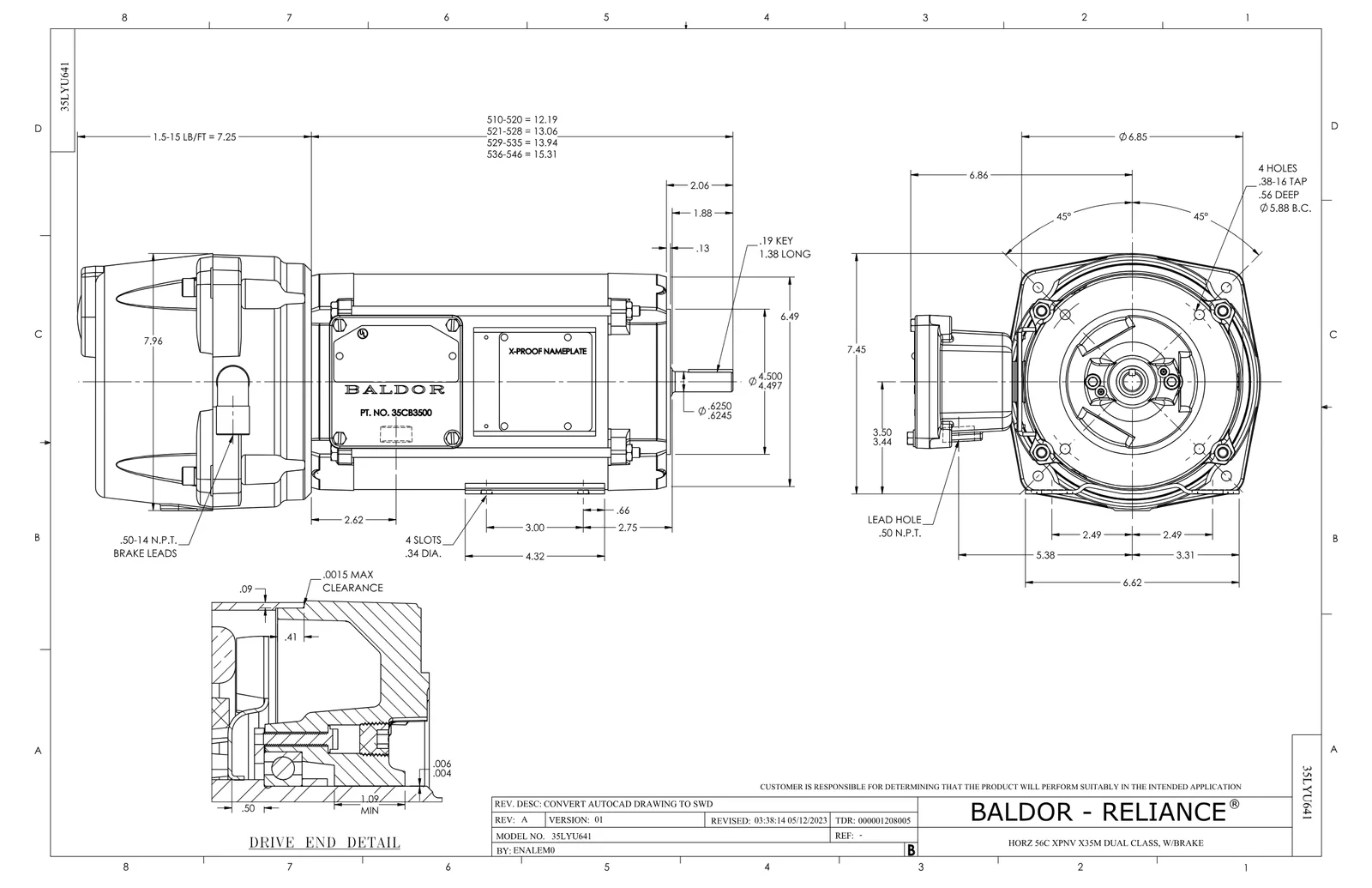

Dimension DrawingDimension SheetPDF·132 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor CBXMN050542 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
35EP3702A01SP	PU EP-205 BRG-35X-56C-143-5TC	1 pcs	56 motors
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
