Baldor C21G2701

Baldor C21G2701 is a single-phase explosion-proof AC motor rated 3 HP, 1160 rpm, 1 phase 115/230 V 60 Hz, with 210TY frame and XPNV enclosure.

BaldorMFR # C21G2701SKU # YLSQXX9C0TM6MWNDiscontinued

EnclosureXPNV

Frame210TY

Frame materialIron

Output at frequency3.000 @ 60 HZ

Phase1

Voltage at frequency230 V @ 60 HZ · 115 V @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor C21G2701 is a single-phase explosion-proof AC motor rated 3 HP, 1160 rpm, 1 phase 115/230 V 60 Hz, with 210TY frame and XPNV enclosure.

Baldor C21G2701

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPNV

Frame210TY

Frame materialIron

Output at frequency3.000 @ 60 HZ

Phase1

Voltage at frequency230 V @ 60 HZ · 115 V @ 60 HZ

Hazardous area class and groupCLI GP C,D

Hazardous area divisionDivision I

Agency approvalsCCSA US · CSA · UL

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Cable length25 FOOT

Current at voltage21.0 A @ 230 V · 42.0 A @ 115 V

Design codeL

Drip coverNo Drip Cover

Duty rating15 MIN

Heater indicatorNo Heater

Inverter codeInverter Ready

KVA codeJ

Lifting lugsVertical Lifting Lugs

Mounting arrangementV1

Number of poles6

Overall length32.41 IN

Product familyOther

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC785398026145

Nameplate

Class I group (hazardous location)C D X

Class II group (hazardous location)X X X

Operating temperature codeT3C

Nameplate number000613007RC

Documents & CAD

For this product 3

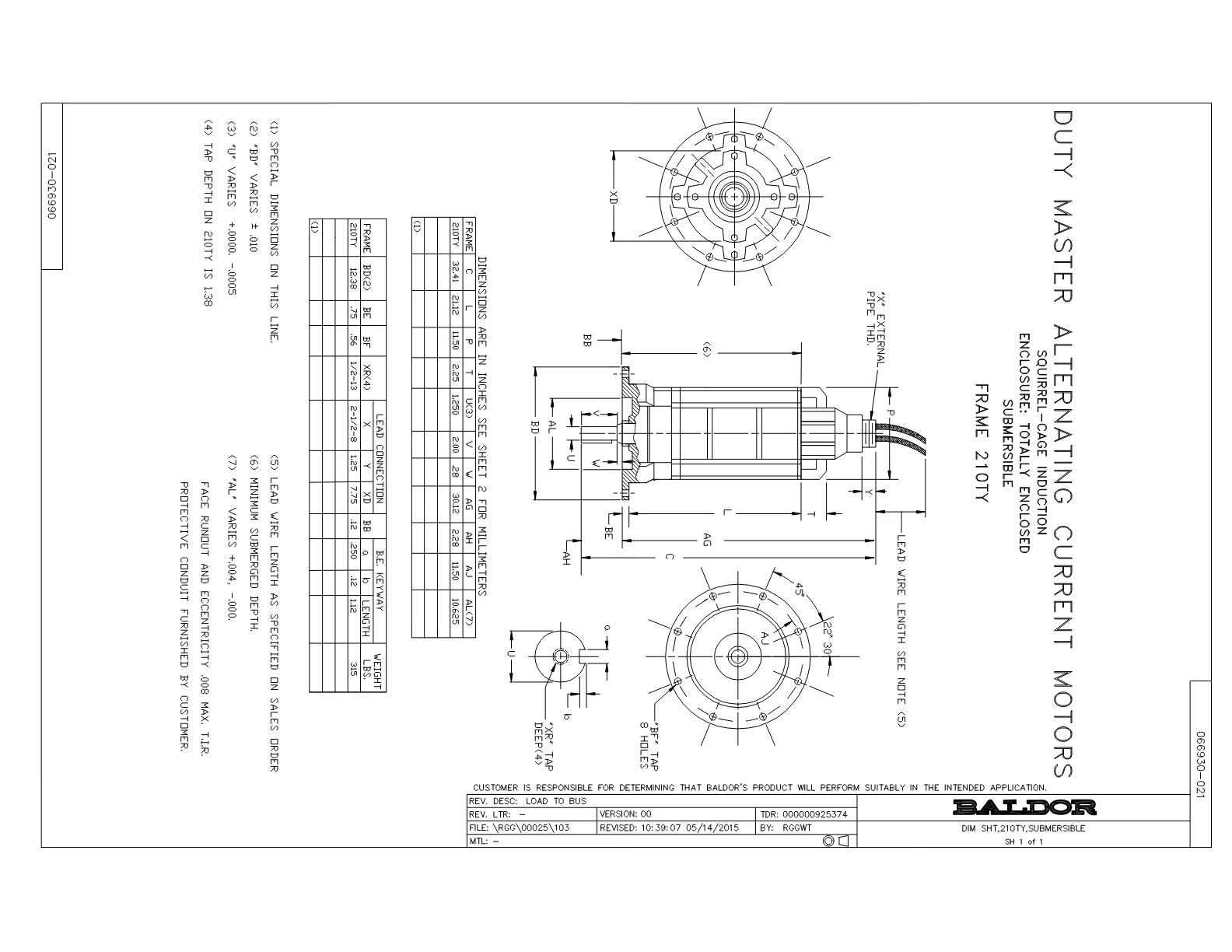

Dimension DrawingDimension SheetPDF·66 KB·English

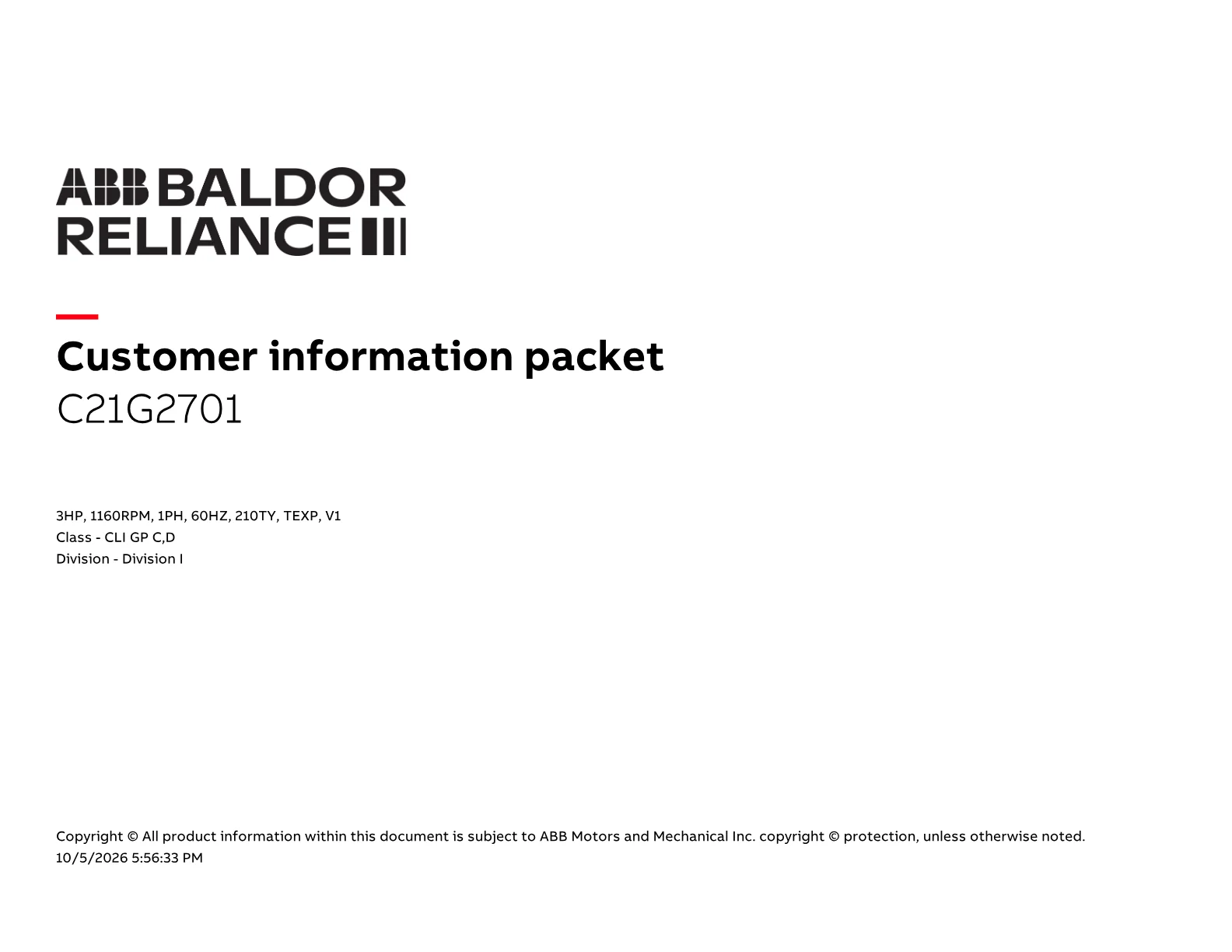

DatasheetDatasheetPDF·481 KB·English

Performance CurvePerformance CurvePDF·44 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor C21G2701 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
064262012C	SEAL	1 pcs	44 motors
064262012D	SEAL - Mech Ceramic Seal	1 pcs	29 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
421900144FU	406673000BF	3 pcs	20 motors
421900092FU	ORING	1 pcs	29 motors
