How can I get a price quote for Baldor C18G2702?

You can request a fast quote for Baldor C18G2702 from Yılsa Engineering. Reference part number YLS8ISDMPOBEZ7G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor C18G2702 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor C18G2702 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor C18G2702?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor C18G2702

Baldor C18G2702 is a single-phase explosion-proof AC motor rated 2 HP, 1720 rpm, 1 phase 115/230 V 60 Hz, with 180TY frame and XPNV enclosure.

BaldorMFR # C18G2702SKU # YLS8ISDMPOBEZ7GDiscontinued

EnclosureXPNV

Frame180TY

Frame materialIron

Motor letter typeCS

Output at frequency2.000 @ 60 HZ

Phase1

Have questions?Chat on WhatsApp

About This Product

Baldor C18G2702 is a single-phase explosion-proof AC motor rated 2 HP, 1720 rpm, 1 phase 115/230 V 60 Hz, with 180TY frame and XPNV enclosure.

Baldor C18G2702

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPNV

Frame180TY

Frame materialIron

Motor letter typeCS

Output at frequency2.000 @ 60 HZ

Phase1

Voltage at frequency230 V @ 60 HZ · 115 V @ 60 HZ

Hazardous area class and groupCLI GP C,D

Hazardous area divisionDivision I

Agency approvalsUL · CSA · CCSA US

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Cable length25 FOOT

Current at voltage14.4 A @ 230 V · 28.8 A @ 115 V

Design codeL

Drip coverNo Drip Cover

Duty rating15 MIN

Heater indicatorNo Heater

Inverter codeInverter Ready

KVA codeK

Lifting lugsVertical Lifting Lugs

Mounting arrangementV1

Number of poles4

Overall length28.00 IN

Product familyOther

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft rotationFixed Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC785398024714

Nameplate

Class I group (hazardous location)C D X

Class II group (hazardous location)X X X

Operating temperature codeT3C

Nameplate number000613007RC

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·73 KB·English

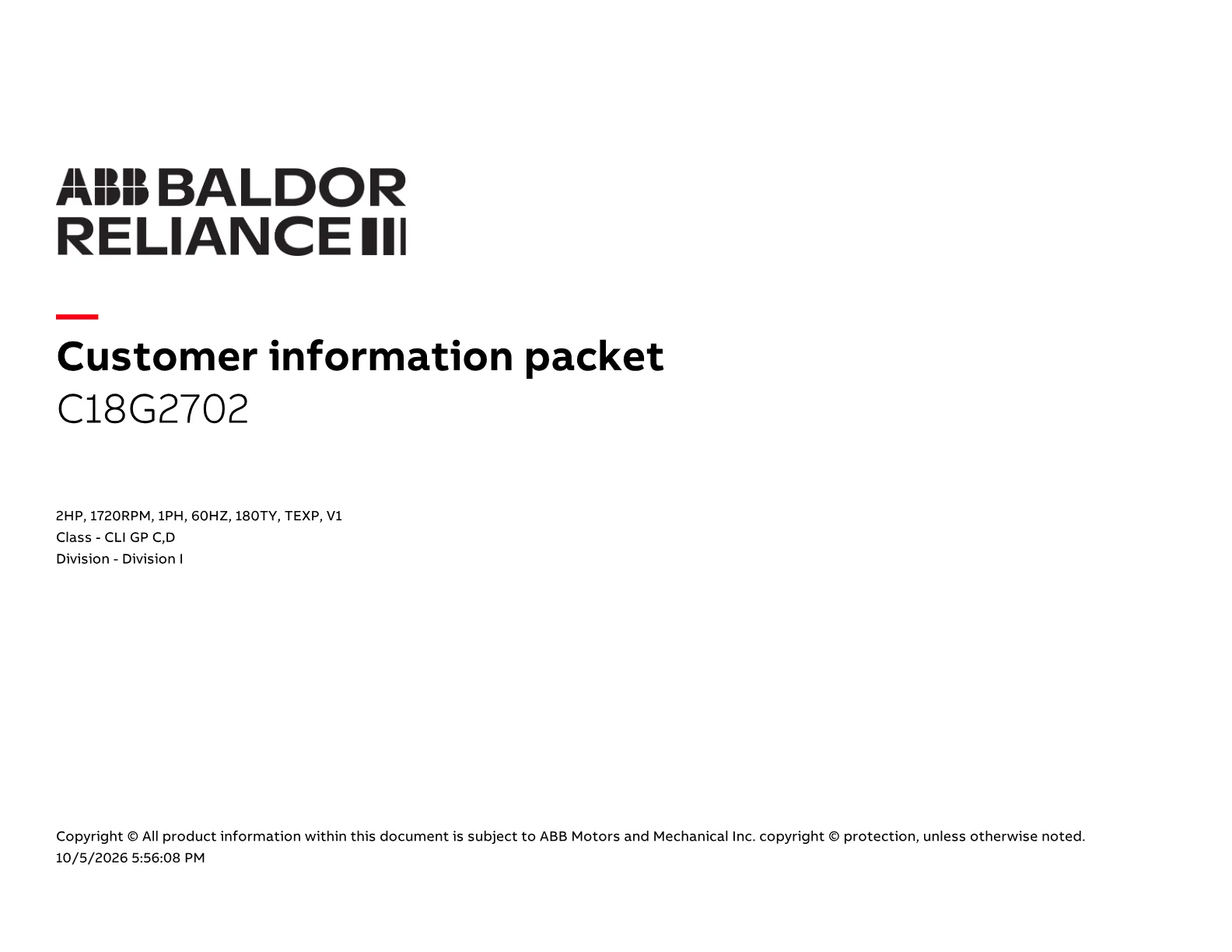

DatasheetDatasheetPDF·524 KB·English

Performance CurvePerformance CurvePDF·77 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·88 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor C18G2702 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
064262012B	SEAL	1 pcs	24 motors
064262012C	SEAL	1 pcs	44 motors
413480001R	RESISTOR ASSEMBLY-BLANKET	1 pcs	62 motors
421900124FU	ORING	3 pcs	33 motors
421900072FU	ORING	1 pcs	24 motors
