How can I get a price quote for Baldor BSM132C-3200AA?

You can request a fast quote for Baldor BSM132C-3200AA from Yılsa Engineering. Reference part number YLS9W5SDOJVZH20. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor BSM132C-3200AA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor BSM132C-3200AA genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor BSM132C-3200AA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor BSM132C-3200AA

Baldor BSM132C-3200AA is an AC servo motor with thermostat and resolver feedback, D132D frame, TENV enclosure.

BaldorMFR # BSM132C-3200AASKU # YLS9W5SDOJVZH20

EnclosureTENV

Motor type3732B

Nameplate speed (rpm)3500

Agency approvalsCE · CURUS

Base indicatorBracket Mounted

FrameD132D

Have questions?Chat on WhatsApp

About This Product

Baldor BSM132C-3200AA is an AC servo motor with thermostat and resolver feedback, D132D frame, TENV enclosure.

Baldor BSM132C-3200AA

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Motor type3732B

Nameplate speed (rpm)3500

Agency approvalsCE · CURUS

Base indicatorBracket Mounted

FrameD132D

Frame materialSteel

Motor lead quantity/wire size3 @ 10 AWG

Mounting arrangementF1

Nameplate output7.8KW

Shaft rotationReversible

Motor standardsIEC

UPC781568836125

Documents & CAD

For this product 3

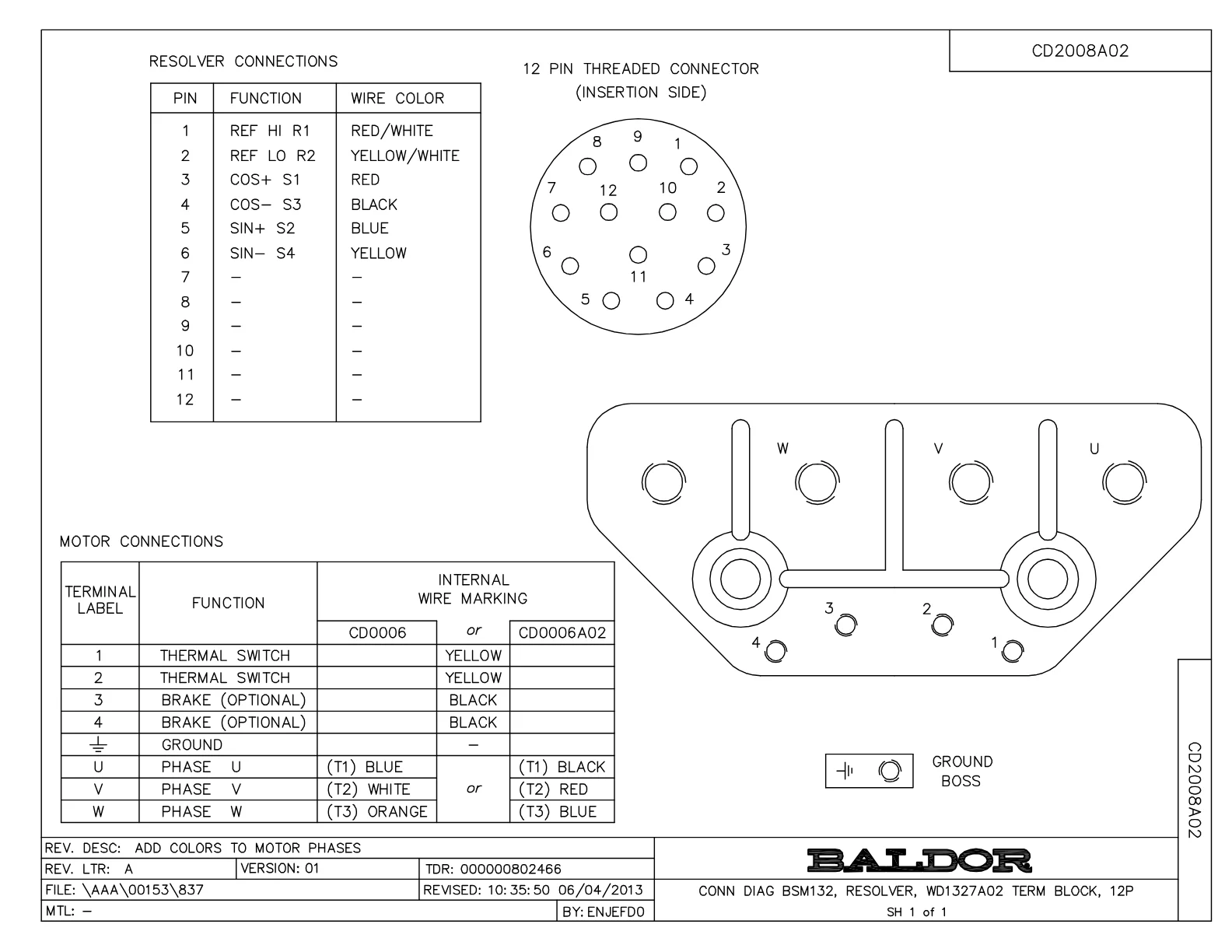

Wiring DiagramWiring DiagramPDF·46 KB·English

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·607 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·176 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor BSM132C-3200AA motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
