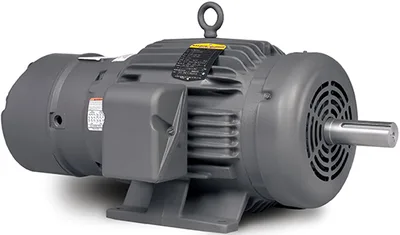

Baldor BM2334T

General Purpose Brake Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # BM2334TSKU # YLSW6UA9UT4QRQA

Motor CategoryGeneral Purpose Brake Motor

Motor Phase3 ph

Motor Horsepower20 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size256T

Have questions?Chat on WhatsApp

About This Product

General Purpose Brake Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor BM2334T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Brake Motor

Motor Phase3 ph

Motor Horsepower20 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size256T

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current25.00 A

Full Load Efficiency91.00 %

Amps @ Voltage54.0 A @ 208 V; 50.0 A @ 230 V; 25.0 A @ 460 V

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.6250 in

Overall Length C Dimension31.63 in

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialCast Iron

Insulation ClassF

Thermal ProtectionAutomatic/Manual OFF

Standards MetCSA, UR

Harmonization Code8501.52.4000

Weight327 lbs

ApplicationsMachine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Additional DetailsSpring-set brake. Power off operation manual release. Resets automatically. Brakes internally connected to motor on 215T and smaller.

Mounting TypeFoot

Product TypeBrake Motors
