Baldor ANFL3510M

Farm Duty - Auger Drive Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Flange / Footless Mount, Continuous Duty

BaldorMFR # ANFL3510MSKU # YLSJDRGGKZ51DGJ

EnclosureTEFC

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Auger Drive Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Flange / Footless Mount, Continuous Duty

Baldor ANFL3510M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.600 A @ 115.0 V · 6.300 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.3 a

Front face codeStandard

Front shaft indicatorMultiple Flats

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3524L

Mounting arrangementF1

Number of poles4

Overall length13.55 IN

Power factor74

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeOther

Pulley shaft indicatorKey And Flat

Rodent screenNone

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationDouble Shaft

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568122068

Motor CategoryAuger Drive Motor

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight40 lbs

ApplicationsPoultry feed auger drive systems.

Additional DetailsMechanical protection of centrifugal switch to prevent damage to motor in case of overspeed. Manual reset thermal protection mounted in oversize conduit box. Farm Duty epoxy paint and thermal cover protect motor from harsh environments. Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly. Gear reducer is assembled to motor. High efficiency design. Moisture resistant 200°C copper windings. Stator and steel frame dipped and baked in 100% solid polyester nonhygroscopic varnish. Heavy duty Type 1 capacitor.

Mounting TypeFlange / Footless

Nameplate

Catalog numberANFL3510M

Specification number35Q142G385

Horsepower (HP)1

Voltage (V)115/230

Current (A)12.6/6.3

Speed (rpm)1740

Frame size56YZ

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)68

Power factor74

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)2.9123 Ω / 2.3517 Ohms B Ph

Temperature rise at rated load (°C)76° C

Temperature rise at service factor load (°C)91° C

Start configurationDOL

Breakdown torque8.54 lb-ft

Pull-up torque5.27 lb-ft

Locked-rotor torque8.18 lb-ft

Starting current (A)39.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	18	38	53	66	74	80	84	78
Efficiency %	0	50.9	64	68.9	69.6	67.9	64.4	68.6
Speed rpm	1796	1783.6	1771.8	1757.4	1741.9	1721.6	1695.1	1730
Line amps A	4.41	4.44	4.81	5.47	6.29	7.41	8.78	6.96
Power W	185	387	588	829	1073	1368	1696	1250
Torque lb-ft	0	0.7783	1.495	2.288	3.019	3.8	4.538	3.49

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·106 KB·English

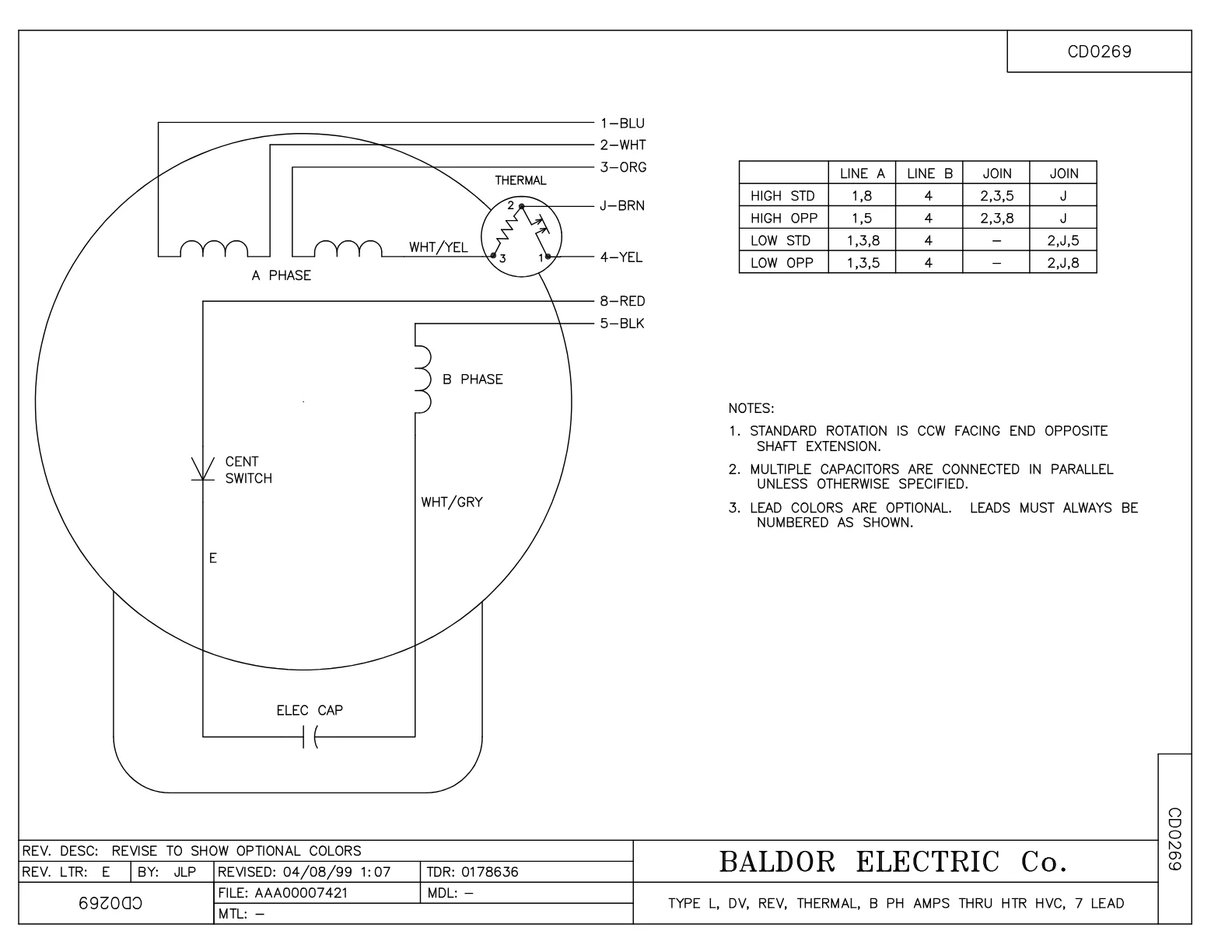

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·589 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor ANFL3510M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
RM1014A01SP	BUTYL RUB.THRM COV. (MENA)	1 pcs	37 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
