How can I get a price quote for Baldor ANFL3507M?

You can request a fast quote for Baldor ANFL3507M from Yılsa Engineering. Reference part number YLS5TKPTOHM9C9L. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ANFL3507M in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ANFL3507M genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ANFL3507M?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ANFL3507M

Farm Duty - Auger Drive Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 48YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Flange / Footless Mount, Continuous Duty

BaldorMFR # ANFL3507MSKU # YLS5TKPTOHM9C9L

EnclosureTEFC

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Auger Drive Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 48YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Flange / Footless Mount, Continuous Duty

Baldor ANFL3507M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage8.200 A @ 115.0 V · 5.400 A @ 208.0 V · 4.100 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.1 a

Front face codeStandard

Front shaft indicatorMultiple Flats

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3428LC

Mounting arrangementF1

Number of poles4

Overall length13.32 IN

Power factor80

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeOther

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568122051

Motor CategoryAuger Drive Motor

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.4040

Weight35 lbs

ApplicationsPoultry feed auger drive systems.

Additional DetailsMechanical protection of centrifugal switch to prevent damage to motor in case of overspeed. Manual reset thermal protection mounted in oversize conduit box. Farm Duty epoxy paint and thermal cover protect motor from harsh environments. Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly. Gear reducer is assembled to motor. High efficiency design. Moisture resistant 200°C copper windings. Stator and steel frame dipped and baked in 100% solid polyester nonhygroscopic varnish. Heavy duty Type 1 capacitor.

Mounting TypeFlange / Footless

Nameplate

Catalog numberANFL3507M

Specification number34M899X030G1

Horsepower (HP).75

Voltage (V)115/230

Current (A)8.2/4.1

Speed (rpm)1725

Frame size48YZ

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)J

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)74

Power factor80

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)3.11 Ω / 1.73 Ohms B Ph

Temperature rise at rated load (°C)62° C

Temperature rise at service factor load (°C)81° C

Start configurationDOL

Breakdown torque5.7 lb-ft

Pull-up torque4.7 lb-ft

Locked-rotor torque7.5 lb-ft

Starting current (A)31 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	23	43	61	72	80	85	87	0
Efficiency %	0	53.6	67.7	73	73.9	93.2	71.4	0
Speed rpm	1798	1784	1770	1755	1739	1717	1694	0
Line amps A	2.7	2.7	3	3.5	4.1	4.9	5.8	4.9
Power W	143	266	418	576	752	736	1137	0
Torque lb-ft	0	0.5625	1.125	1.6875	2.25	2.8125	3.375	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·95 KB·English

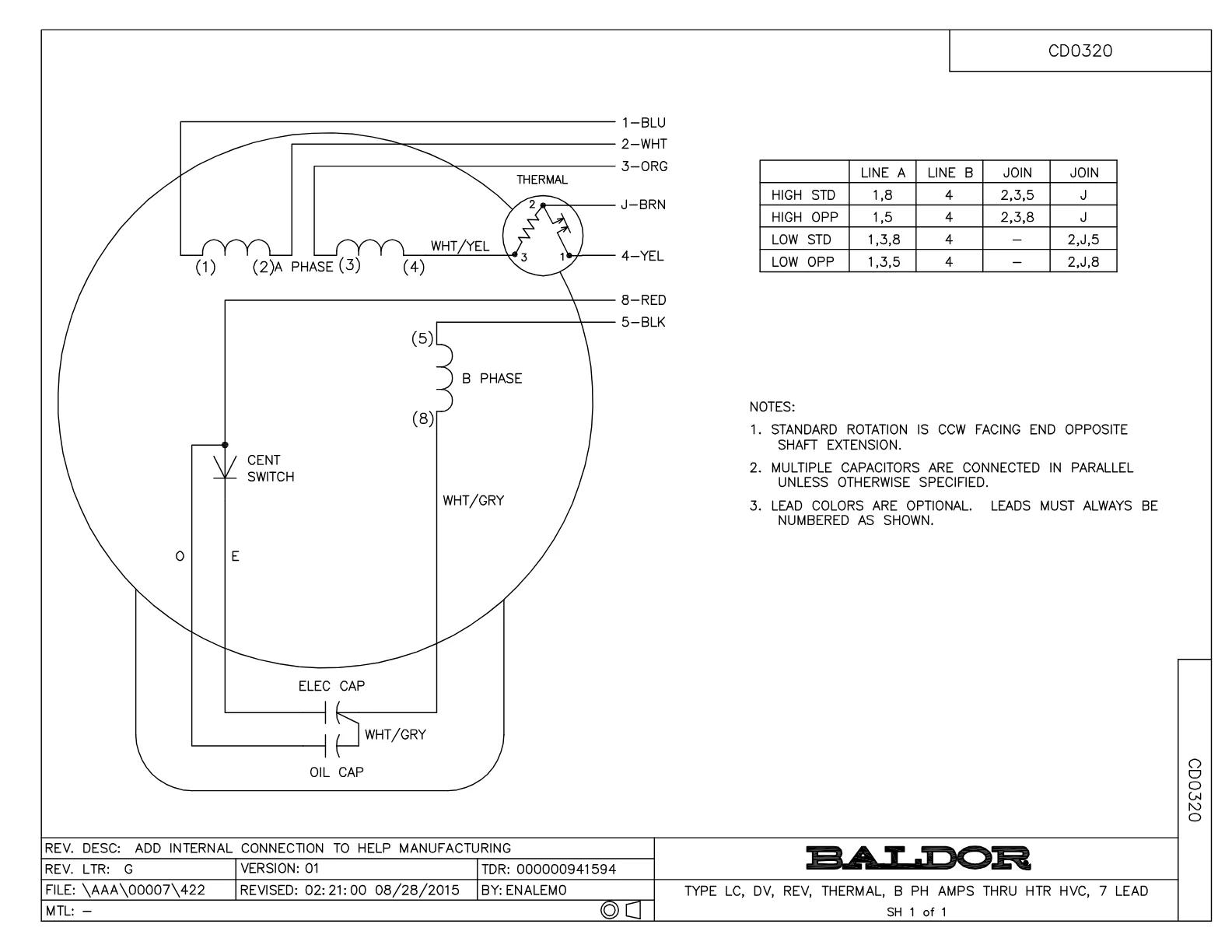

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·580 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor ANFL3507M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3020F12SP	CAPACITORS 20 MFD 370 VAC	1 pcs	38 motors
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	1 pcs	65 motors
RM1014A01SP	BUTYL RUB.THRM COV. (MENA)	1 pcs	37 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A03SP	IEC FH NO GREASER W/.88 DIA SHAFT HOLE,	1 pcs	30 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
