Baldor AFL3524A

Farm Duty - Aeration Fan Motor - 3 hp, 3600 rpm, 1 ph, 230 V, 145TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # AFL3524ASKU # YLSV30YHT3JTBGN

EnclosureTEAO

Frame145TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Aeration Fan Motor - 3 hp, 3600 rpm, 1 ph, 230 V, 145TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor AFL3524A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame145TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage15.000 A @ 230.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)15.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3535LC

Mounting arrangementF1

Number of poles2

Overall length13.61 IN

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121337

Motor CategoryAeration Fan Motor

Motor Supply Voltage230 V

Base RPM3450 rpm

Full Load Efficiency0.78 %

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight52 lbs

ApplicationsAeration fans for farm grain storage, exhaust fans, air handling systems, etc.

Additional DetailsLubrication fittings on NEMA T frames for easy on-site maintenance, ball bearings, corrosion protected with epoxy finish. Normally-closed thermostats on three phase motors.

Mounting TypeFoot

Nameplate

Catalog numberAFL3524A

Specification number35T906Y039

Horsepower (HP)3 AIR OVER

Voltage (V)230

Current (A)15

Speed (rpm)3450

Frame size145TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letter-

Insulation classB

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)0.577 Ω / 2.53 Ohms B Ph

Start configurationDOL

Breakdown torque14.7 lb-ft

Pull-up torque11 lb-ft

Locked-rotor torque13.6 lb-ft

Starting current (A)92 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	29	47	64	75	83	86	87
Efficiency %	0	55	70	75	78	78	77
Speed rpm	3590	3560	3555	3520	3500	3490	3465
Line amps A	9	9.5	11	13	15	18	21.5
Power W	600	1034	1623	2250	2868	3575	4314
Torque lb-ft	0	1.125	2.25	3.375	4.5	5.625	6.75

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·112 KB·English

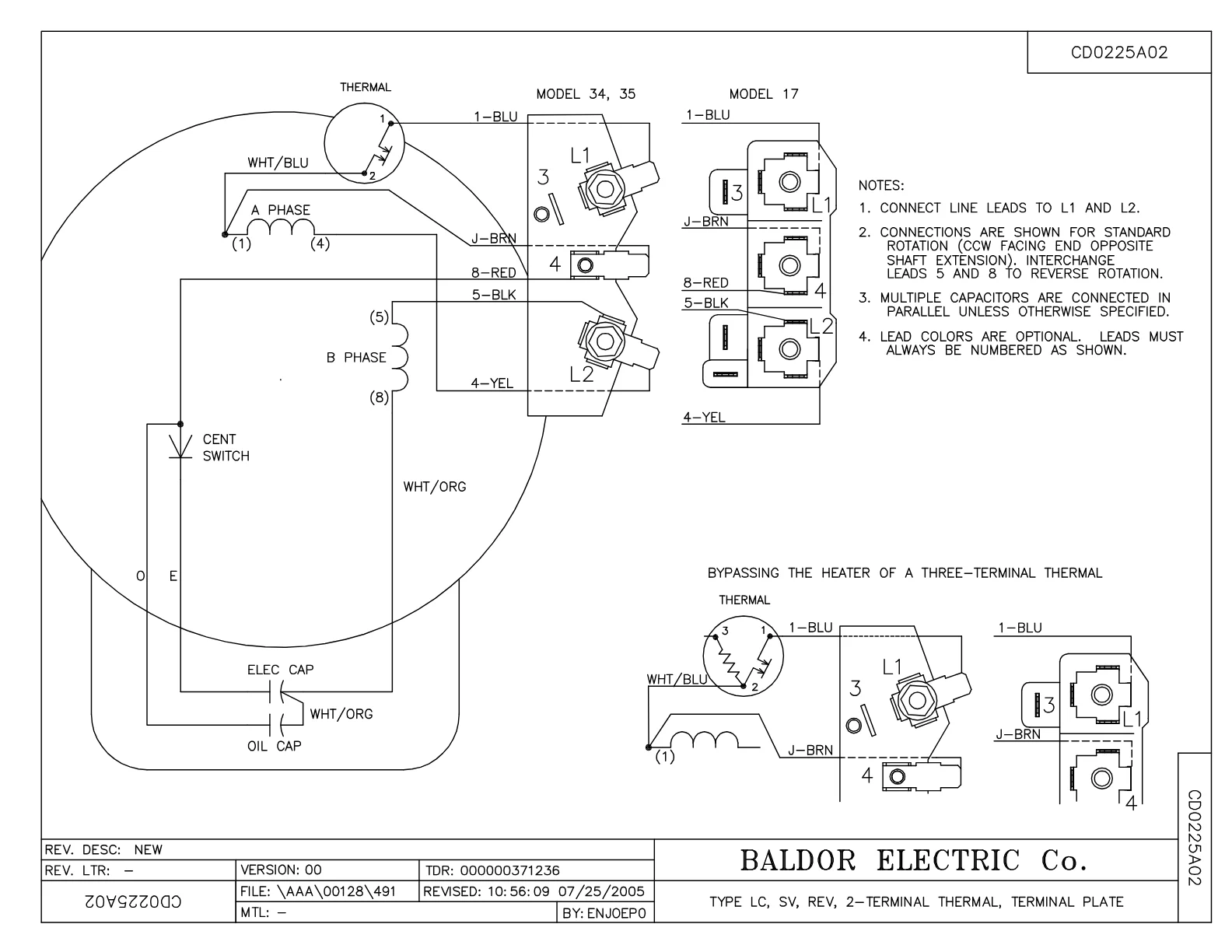

Wiring DiagramWiring DiagramPDF·49 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 3

3D Model

SolidWorks.sldprt · 2.9 MB

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor AFL3524A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3012F12SP	CYL OIL CAP 12MFD/370V	1 pcs	13 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	1 pcs	45 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
