Baldor AFL3523A

Farm Duty - Aeration Fan Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 143TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # AFL3523ASKU # YLSQ66FKTXS2BML

EnclosureTEAO

Frame143TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Aeration Fan Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 143TZ Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor AFL3523A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame143TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.500 A @ 230.0 V · 23.000 A @ 115.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)11.5 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A&J

Motor type3535L

Mounting arrangementF1

Number of poles2

Overall length13.61 IN

Power factor82

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121320

Motor CategoryAeration Fan Motor

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Harmonization Code8501.40.6040

Weight50 lbs

ApplicationsAeration fans for farm grain storage, exhaust fans, air handling systems, etc.

Additional DetailsLubrication fittings on NEMA T frames for easy on-site maintenance, ball bearings, corrosion protected with epoxy finish. Normally-closed thermostats on three phase motors.

Mounting TypeFoot

Nameplate

Catalog numberAFL3523A

Specification number35T889-5184

Horsepower (HP)2

Voltage (V)115/230

Current (A)23/11.5

Speed (rpm)3450

Frame size143TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)K

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)74

Power factor82

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)0.91834 Ω / 1.023 Ohms B Ph

Temperature rise at rated load (°C)79° C

Start configurationDOL

Breakdown torque9.75 lb-ft

Pull-up torque6.63 lb-ft

Locked-rotor torque7.22 lb-ft

Starting current (A)79.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	22	46	61	71	78	82	85
Efficiency %	0	50.9	66.8	73.6	76.2	76.5	75.5
Speed rpm	3596	3575.5	3559.4	3542.1	3522.8	3500.8	3476
Line amps A	6.71	7.3	8.23	9.57	11.2	13.1	15.3
Power W	344	766	1159	1561	2005	2478	2991
Torque lb-ft	0	0.767	1.53	2.28	3.05	3.81	4.57

Documents & CAD

For this product 3

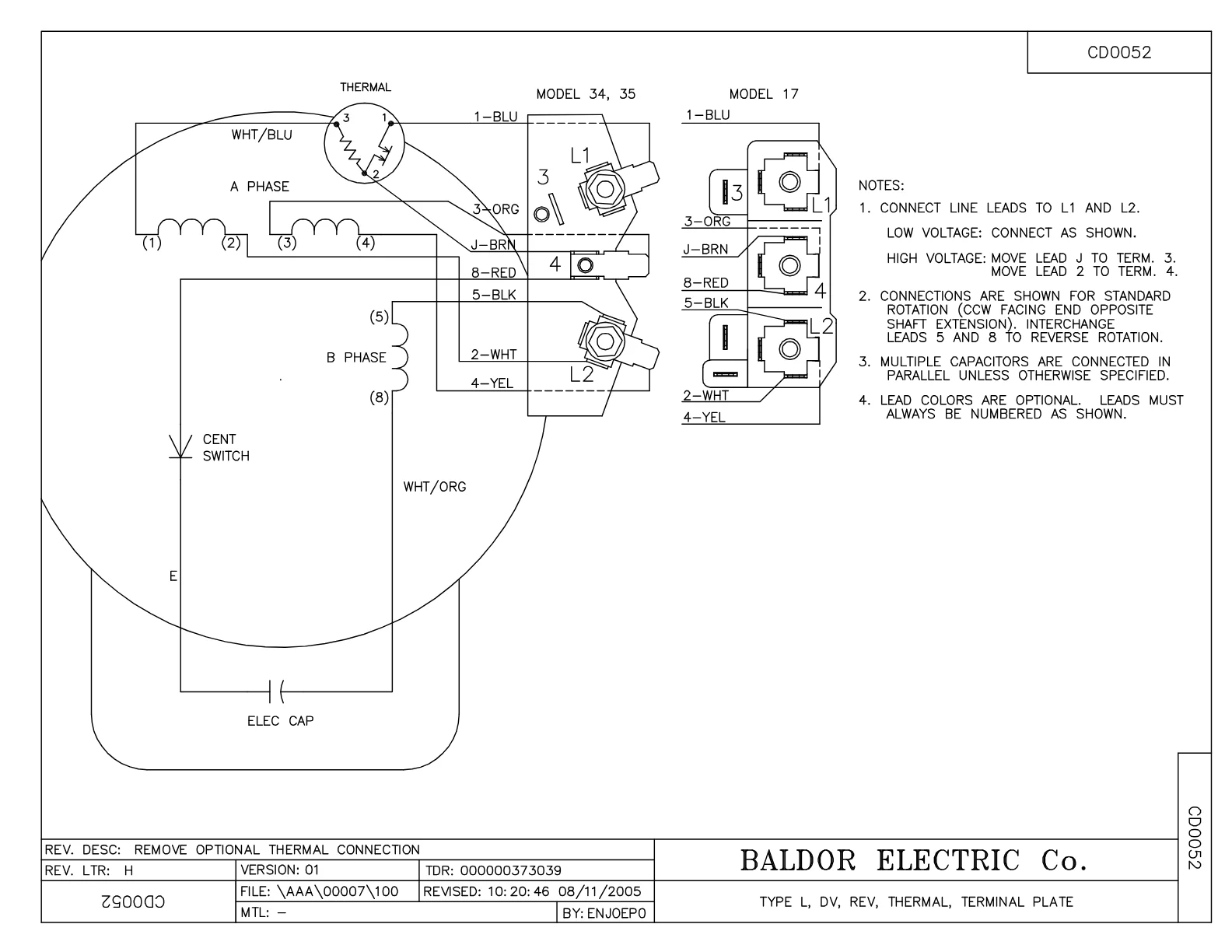

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·601 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor AFL3523A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
