Baldor AFL3520A

Baldor-Reliance AFL3520A is a 0.75 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56Z frame, TEAO enclosed farm duty general purpose AC electric motor.

BaldorMFR # AFL3520ASKU # YLSXUBACLYZSIJ

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance AFL3520A is a 0.75 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56Z frame, TEAO enclosed farm duty general purpose AC electric motor.

Baldor AFL3520A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CURUS · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.000 A @ 115.0 V · 5.500 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load71.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.5 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitLead Hole

Motor lead terminationCord And Plug

Motor lead quantity/wire size6 @ 18 AWG

Motor type3420L

Mounting arrangementF1

Number of poles2

Overall length11.59 IN

Power factor68

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568121283

Nameplate

Catalog numberAFL3520A

Specification number34K48-656

Horsepower (HP).75

Voltage (V)115/230

Current (A)11/5.5

Speed (rpm)3450

Frame size56Z

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)71

Power factor68

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)3.18 Ω / 2.53 Ohms B Ph

Start configurationDOL

Breakdown torque2.88 lb-ft

Pull-up torque2.25 lb-ft

Locked-rotor torque3.25 lb-ft

Starting current (A)25 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	20	35	49	61	70	75	80
Efficiency %	0	42	58	64	66	65	63
Speed rpm	3590	3557	3522	3485	3440	3399	3320
Line amps A	4.07	4.16	4.3	4.7	5.4	5.9	7
Power W	187	361	518	696	888	1114	1347
Torque lb-ft	0	0.3	0.6	0.9	1.2	1.5	1.8

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·96 KB·English

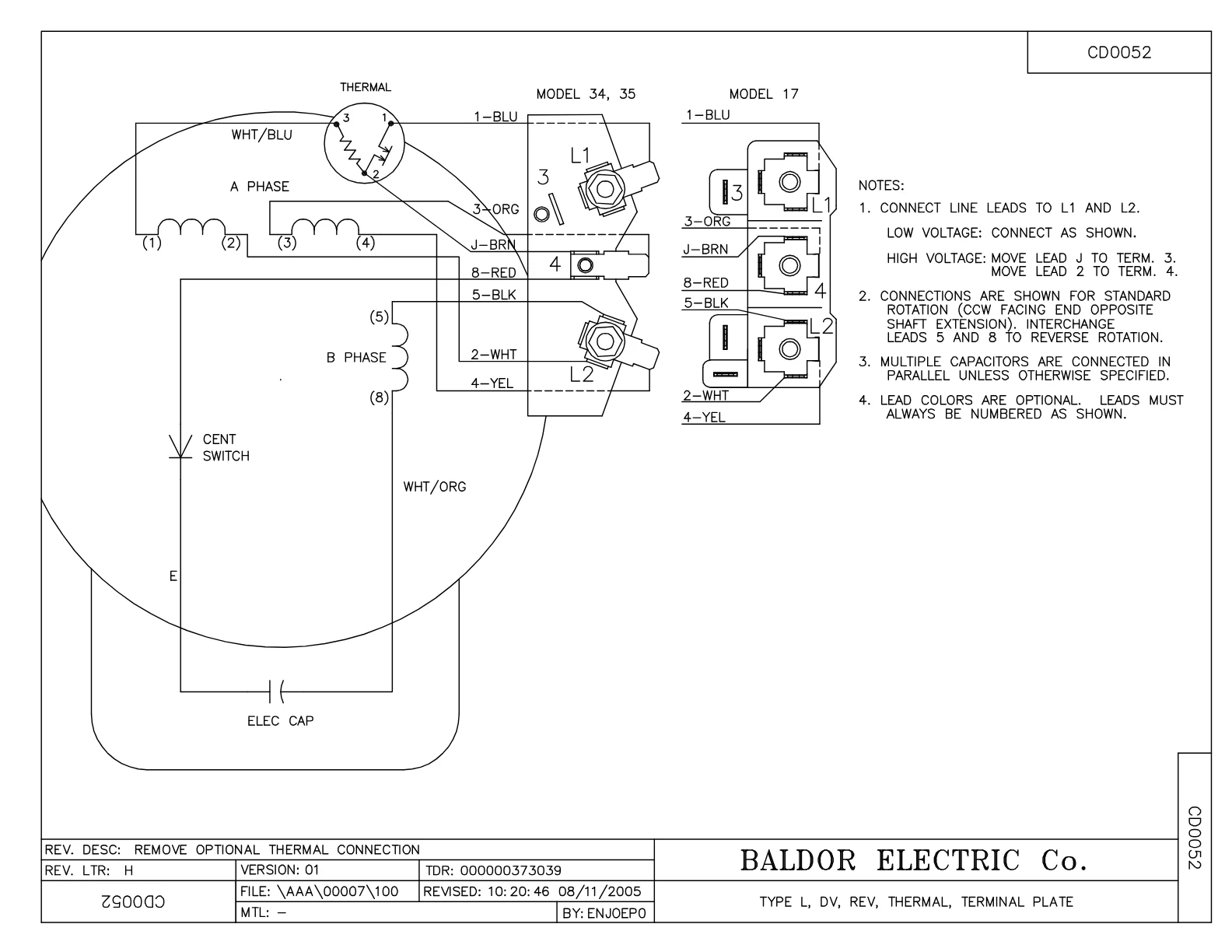

Wiring DiagramWiring DiagramPDF·45 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor AFL3520A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	1 pcs	65 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
