How can I get a price quote for Baldor AEM4311-4?

You can request a fast quote for Baldor AEM4311-4 from Yılsa Engineering. Reference part number YLSJ8NHQ42R0KSW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor AEM4311-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor AEM4311-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor AEM4311-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor AEM4311-4

Automotive Duty Motor - 50 hp, 1800 rpm, 3 ph, 460 V, 365U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # AEM4311-4SKU # YLSJ8NHQ42R0KSW

EnclosureTEFC

Frame365U

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Automotive Duty Motor - 50 hp, 1800 rpm, 3 ph, 460 V, 365U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, Foot Mount, Continuous Duty

Baldor AEM4311-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame365U

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV

Ambient temperature (°C)65 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage56.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)56.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36062M

Mounting arrangementF1

Number of poles4

Overall length33.94 IN

Power factor88

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.124 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568117095

Motor CategoryAutomotive Duty Motor

Motor Supply Voltage460 V

Base RPM1780 rpm

Type Of BearingBall

Warranty3 Year Warranty

Harmonization Code8501.52.8040

Weight778 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications where automotive approved motors are required.

Additional DetailsHeavy duty cast iron frames, regreasable double shield ball bearings, shaft slinger on both ends of motor, stainless steel nameplate, epoxy paint. Suitable for 65°C ambient 1.00 service factor or 1.15 service factor, 40°C ambient. Class F insulation, 1.00 service factor.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Specification numberP36G3114

Catalog numberAEM4311-4

Frame size365U

Horsepower (HP)50

Voltage (V)460

Phase3

NEMA design letterB

TypeP

Speed (rpm)1780

Current (A)58

Frequency (Hz)60

Ambient temperature (°C)65

Service factor1.00

Drive end bearing65BC03JPP30A

DutyCONT

Insulation classF

Opposite drive end bearing65BC03JPP30A

EnclosureTEFC

Code letter (locked rotor kVA)G

NEMA nominal efficiency (%)94.5

Guaranteed efficiency (%)93.6

Nameplate numberNP2492L

Documents & CAD

For this product 2

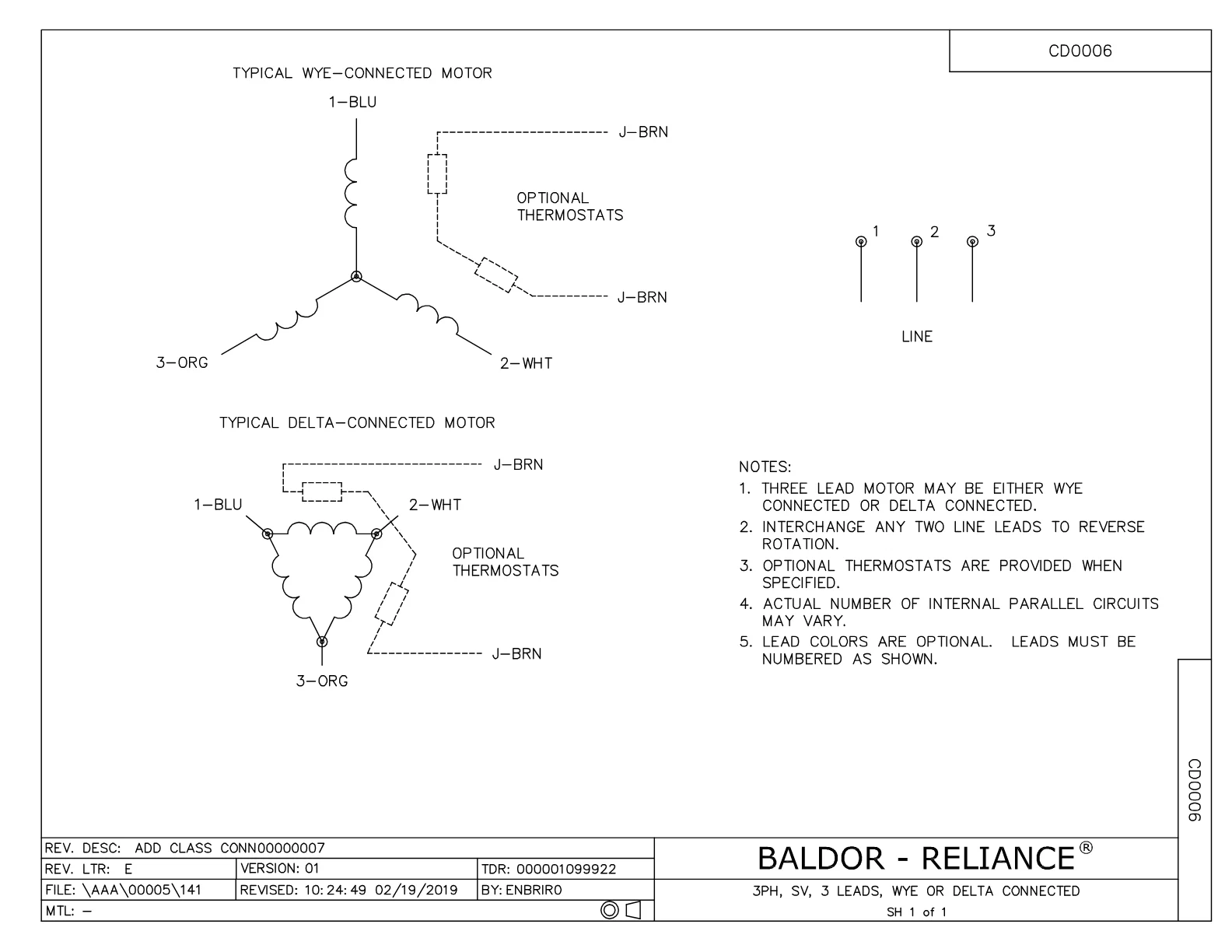

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·606 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·205 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor AEM4311-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
702676001C	FAN 360	1 pcs	102 motors
078559001A	+FANCV - 360	1 pcs	93 motors
067053000B	GASK 320-400	1 pcs	179 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
