How can I get a price quote for Baldor AEM4100-4?

You can request a fast quote for Baldor AEM4100-4 from Yılsa Engineering. Reference part number YLS0TUAHJI8LN2H. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor AEM4100-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor AEM4100-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor AEM4100-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

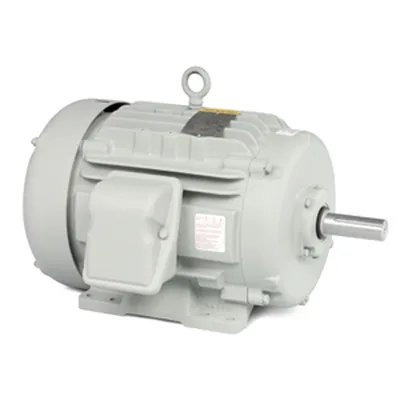

Baldor AEM4100-4

Automotive Duty Motor - 15 hp, 1200 rpm, 3 ph, 460 V, 324U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # AEM4100-4SKU # YLS0TUAHJI8LN2H

Motor CategoryAutomotive Duty Motor

Motor Phase3 ph

Motor Horsepower15 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460 V

Frame Size324U

Have questions?Chat on WhatsApp

About This Product

Automotive Duty Motor - 15 hp, 1200 rpm, 3 ph, 460 V, 324U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor AEM4100-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryAutomotive Duty Motor

Motor Phase3 ph

Motor Horsepower15 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460 V

Frame Size324U

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current20.30 A

Duty Condition TypeContinuous Duty

Full Load Efficiency90.20 %

Amps @ Voltage20.3 A @ 460 V

Volts @ Frequency460 V @ 60 Hz

Shaft Diameter1.8750 in

Overall Length C Dimension30.66 in

Type Of BearingBall

NEMA Design ClassB

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassF

Standards MetCSA, UR

Warranty3 Year Warranty

Harmonization Code8501.52.4000

Weight491 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications where automotive approved motors are required.

Additional DetailsHeavy duty cast iron frames, regreasable double shield ball bearings, shaft slinger on both ends of motor, stainless steel nameplate, epoxy paint. Suitable for 65°C ambient 1.00 service factor or 1.15 service factor, 40°C ambient. Class F insulation, 1.00 service factor.

Mounting TypeFoot

Product TypeDefinite Purpose Motors
