How can I get a price quote for Baldor AEM2275-4?

You can request a fast quote for Baldor AEM2275-4 from Yılsa Engineering. Reference part number YLSBCUAIGGX2RS8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor AEM2275-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor AEM2275-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor AEM2275-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

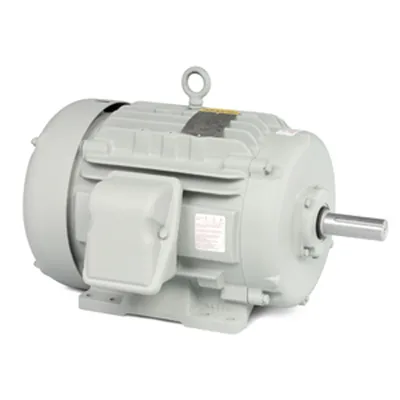

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor AEM2275-4

Automotive Duty Motor - 5 hp, 1200 rpm, 3 ph, 460 V, 254U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # AEM2275-4SKU # YLSBCUAIGGX2RS8

Motor CategoryAutomotive Duty Motor

Motor Phase3 ph

Motor Horsepower5 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460 V

Frame Size254U

Have questions?Chat on WhatsApp

About This Product

Automotive Duty Motor - 5 hp, 1200 rpm, 3 ph, 460 V, 254U Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor AEM2275-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryAutomotive Duty Motor

Motor Phase3 ph

Motor Horsepower5 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage460 V

Frame Size254U

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current7.50 A

Duty Condition TypeContinuous Duty

Full Load Efficiency87.50 %

Amps @ Voltage7.5 A @ 460 V

Volts @ Frequency460 V @ 60 Hz

Shaft Diameter1.3750 in

Overall Length C Dimension20.81 in

Type Of BearingBall

NEMA Design ClassB

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassF

Standards MetCSA, UR

Warranty3 Year Warranty

Harmonization Code8501.52.4000

Weight235 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications where automotive approved motors are required.

Additional DetailsHeavy duty cast iron frames, regreasable double shield ball bearings, shaft slinger on both ends of motor, stainless steel nameplate, epoxy paint. Suitable for 65°C ambient 1.00 service factor or 1.15 service factor, 40°C ambient. Class F insulation, 1.00 service factor.

Mounting TypeFoot

Product TypeDefinite Purpose Motors
