Baldor 862RE

Baldor 862RE is a .75 HP, 3600 rpm, 1 phase 115 V 60 Hz, 24L frame, TENV enclosed 2-pole grinder-buffer AC motor.

BaldorMFR # 862RESKU # YLSZ0DUS5UBFVUL

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.75

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 862RE is a .75 HP, 3600 rpm, 1 phase 115 V 60 Hz, 24L frame, TENV enclosed 2-pole grinder-buffer AC motor.

Baldor 862RE

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.75

Number of poles2

Output at frequency.750 HP @ 60 HZ

Phase1

Shaft diameter0.750 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Agency approvalsCSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage8.600 A @ 115.0 V

Duty ratingCONT

Insulation classB

KVA codeE

Motor lead quantity/wire size5 @ 18 AWG

Motor type3524L

Mounting arrangementF1

Product familyGrinder

Service factor1.00

Shaft rotationFixed Opposite Standard

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127780

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·130 KB·English

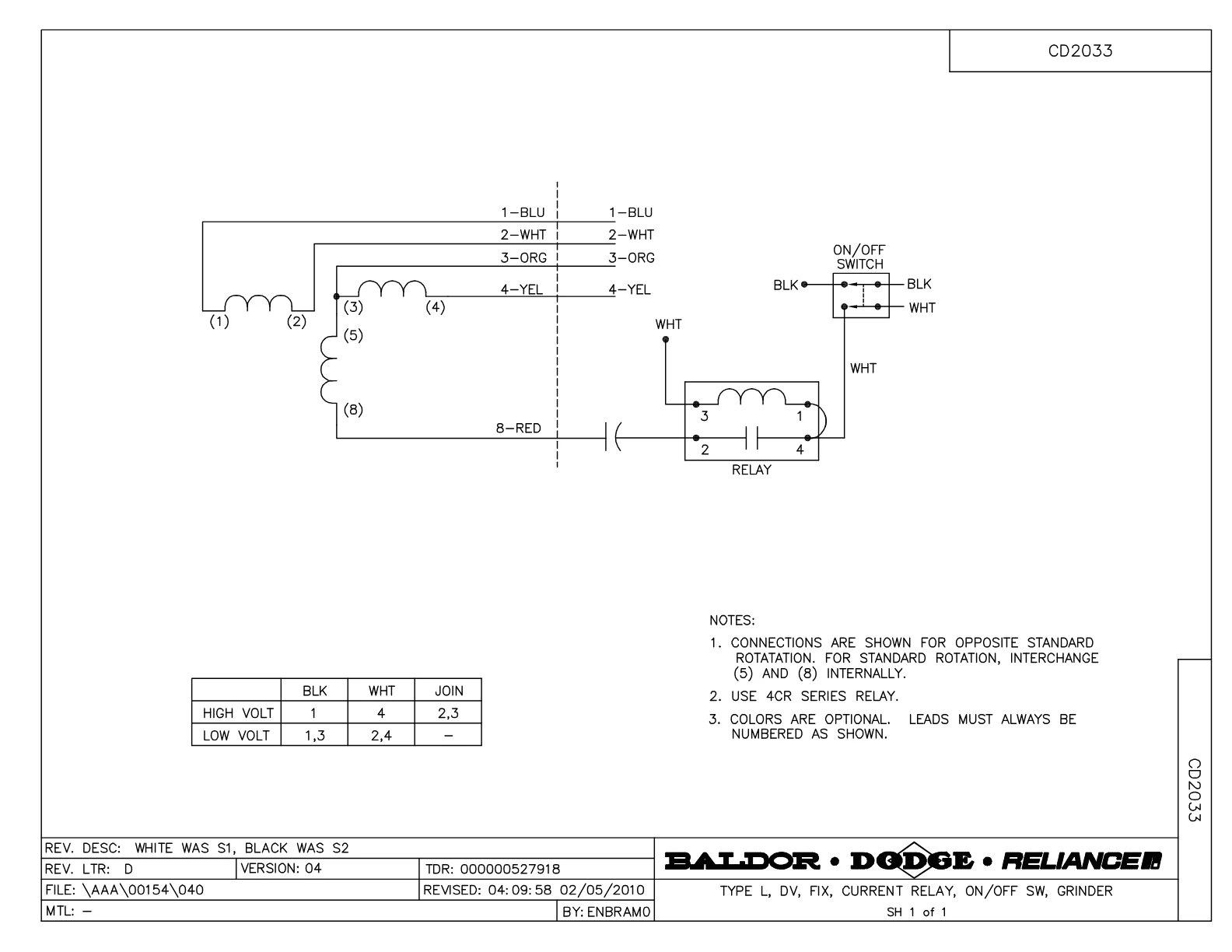

Wiring DiagramWiring DiagramPDF·39 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·146 KB

DatasheetDatasheetPDF·541 KB·English

CAD Files 2

2D Drawing

Spare Parts 12

The genuine spare parts used for servicing and repairing the Baldor 862RE motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1189A02SP	61B2D120189NNBA ELEC CAP, 189-227MFD, 12	1 pcs	37 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G8EP3900A01SP	ENDPLATE, MACH	2 pcs	28 motors
HA6048A01SP	SUPPORT, TOOL REST, STAMPED PLATED	2 pcs	2 motors
G7AP1010A01SP	TOOL REST, LEFT/RIGHT HAND 11GA H.R. STE	2 pcs	2 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	2 pcs	1,025 motors
XY7510A12SP	3/4-10 NUT R.H. HEX (NC) ZINC PLATED	1 pcs	24 motors
G8FH1801A01SP	GUARD COVER - R.H. 8" GRINDER	1 pcs	13 motors
G8FH1803A01SP	GUARD COVER - L.H. 8" GRINDER	1 pcs	13 motors
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN907	INSTR MANUAL GRINDER-BUFFER/WIRE BRUSH	1 pcs	8 motors

Accessories 10

Genuine accessories that can be used with the Baldor 862RE motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16RE	PEDESTAL LIGHT INDUSTRIAL,STEEL-RED	6 motors
GA14R	PEDESTAL FABRICATED STEEL W/SHELVES-RED	6 motors
GA16R	PEDESTAL IND., CAST IRON 6" - 10" RED	6 motors
B80	8" 36 GRIT GRINDING WHEEL	13 motors
B81	8" 60 GRIT GRINDING WHEEL	13 motors
W82	8" WIRE BRUSH WHEEL	3 motors
GA9R	PAIR LIGHTED EYESHIELDS-RED	6 motors
GA9SR	PAIR LIGHTED EYESHIELD W/ON-OFF-RED	6 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
