Baldor 8100WD

Baldor 8100WD is a .75 HP, 1800 rpm, 1 phase 115/230 V 60 Hz, 24C frame, TENV enclosed 4-pole grinder AC motor.

BaldorMFR # 8100WDSKU # YLSNZULHSVG1VJ

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.75

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 8100WD is a .75 HP, 1800 rpm, 1 phase 115/230 V 60 Hz, 24C frame, TENV enclosed 4-pole grinder AC motor.

Baldor 8100WD

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.75

Number of poles4

Output at frequency.750 HP @ 60 HZ

Phase1

Product styleGRINDER

Shaft diameter0.750 IN

Speed (rpm)1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Wheel bore size0.7500 IN

Wheel diameter8.0000 IN

Wheel face1.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage3.200 A @ 230.0 V · 6.400 A @ 115.0 V

Duty ratingCONT

Insulation classF

Motor lead quantity/wire size4 @ 18 AWG

Motor type3524C

Mounting arrangementF1

Overall length23.24 IN

Product familyGrinder

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127124

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·184 KB·English

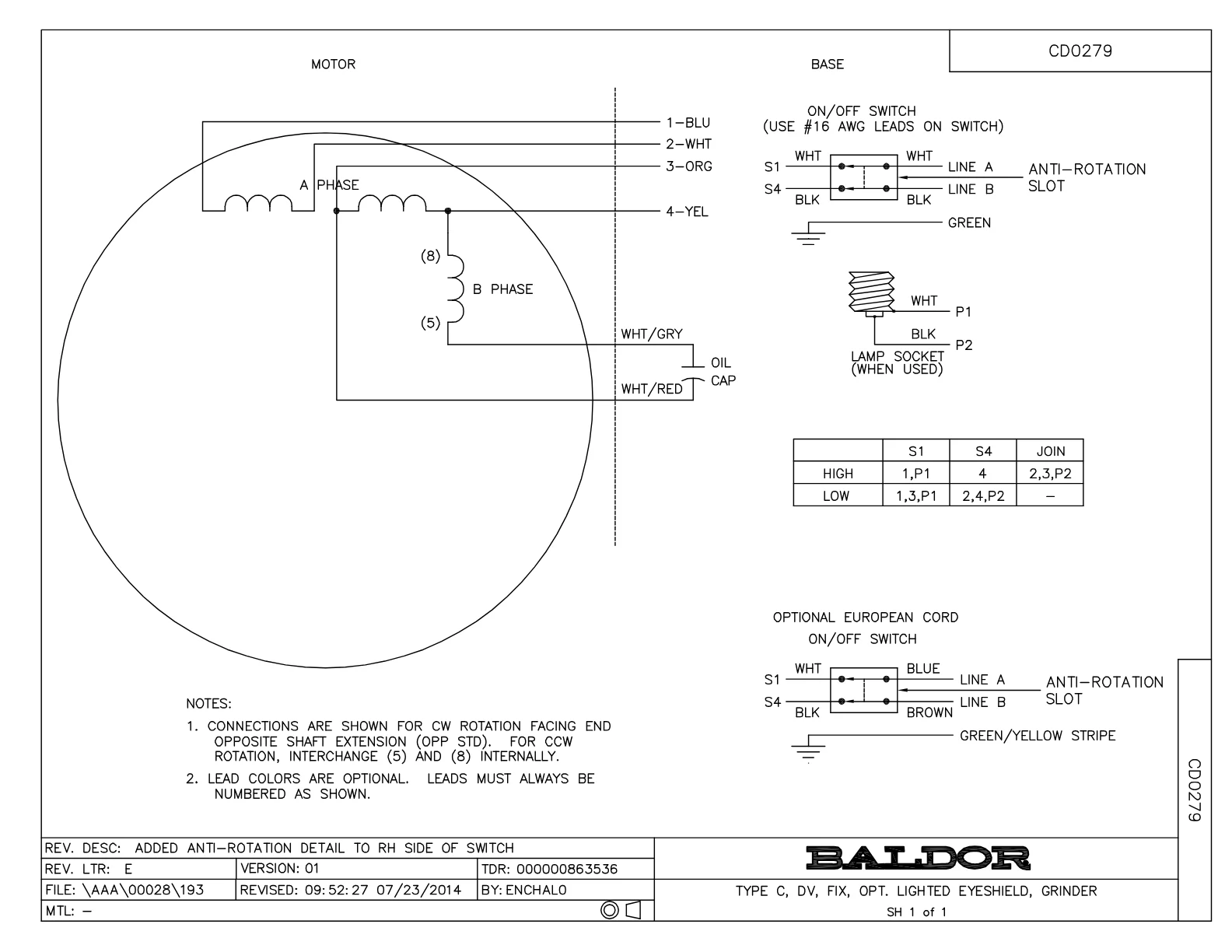

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·603 KB·English

Series documents 1· shared by this product series

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·171 KB

CAD Files 2

2D Drawing

Spare Parts 15

The genuine spare parts used for servicing and repairing the Baldor 8100WD motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3012F12SP	CYL OIL CAP 12MFD/370V	1 pcs	13 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G8EP3900A01SP	ENDPLATE, MACH	2 pcs	28 motors
G8FH1802A01SP	GRINDER GUARD - L.H. 8" GRINDER	1 pcs	11 motors
G8FH1800A01SP	GRINDER GUARD - R.H. 8" GRINDER	1 pcs	11 motors
HA6099A01SP	8" GRINDER TOOL REST SUPPORT	2 pcs	11 motors
G8AP1003A01SP	TOOL REST	2 pcs	23 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
XY7510A12SP	3/4-10 NUT R.H. HEX (NC) ZINC PLATED	1 pcs	24 motors
G8FH1801A01SP	GUARD COVER - R.H. 8" GRINDER	1 pcs	13 motors
G8FH1803A01SP	GUARD COVER - L.H. 8" GRINDER	1 pcs	13 motors
HA6094A01SP	CLAMP FOR SUPPORT ARM X PLATED	2 pcs	13 motors
GA25	TOOL TRAY ASSY	1 pcs	10 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 15

Genuine accessories that can be used with the Baldor 8100WD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
B80	8" 36 GRIT GRINDING WHEEL	13 motors
B81	8" 60 GRIT GRINDING WHEEL	13 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
DC8	DUST CONTROL UNIT	12 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
BQ2-015-CC	1PH Brake,NEMA 1 208-230 VAC,50/60Hz	13 motors
BQ2-015-CP	1PH Brake, Panel 208-230 VAC, 50/60 Hz	13 motors
