How can I get a price quote for Baldor 762?

You can request a fast quote for Baldor 762 from Yılsa Engineering. Reference part number YLSUTP3ERNEYCU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 762 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 762 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 762?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 762

Baldor 762; 0.5 HP, 3600 rpm, single-phase, 115 V @ 60 Hz, 3420C frame grinder motor.

BaldorMFR # 762SKU # YLSUTP3ERNEYCU

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 762; 0.5 HP, 3600 rpm, single-phase, 115 V @ 60 Hz, 3420C frame grinder motor.

Baldor 762

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Output at frequency.500 HP @ 60 HZ

Phase1

Product styleGRINDER

Shaft diameter0.625 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Wheel bore size0.6250 IN

Wheel diameter7.0000 IN

Wheel face1.0000 IN

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage3.400 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3420C

Mounting arrangementF1

Overall length20.07 IN

Product familyGrinder

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127384

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·44 KB·English

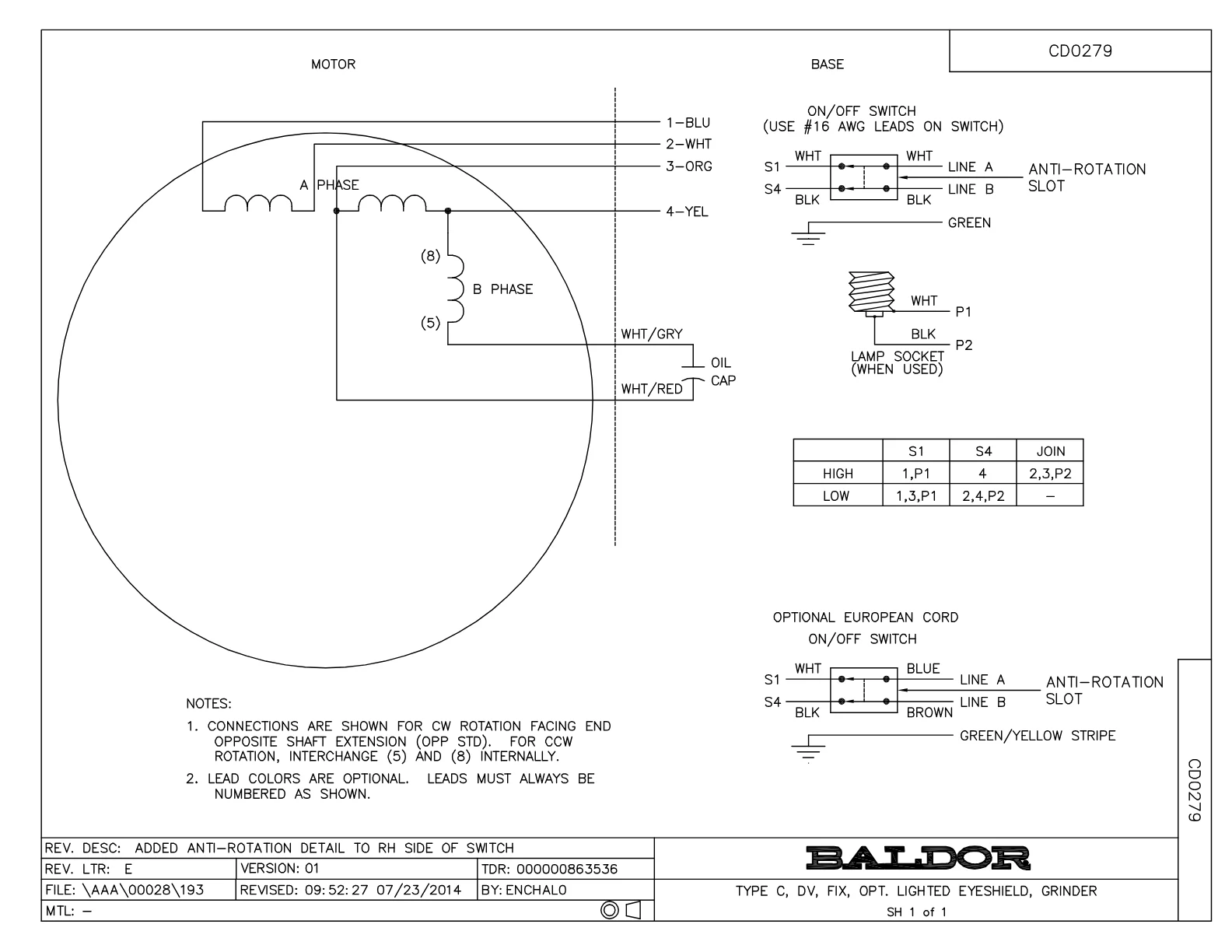

Wiring DiagramWiring DiagramPDF·46 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·45 KB

DatasheetDatasheetPDF·462 KB·English

CAD Files 2

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor 762 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G7FH3801SP	GRINDER GUARD COVER, CAST	2 pcs	4 motors
G6AP5001A01A	EYESHIELD ASSY GA10 .35 50046107	1 pcs	4 motors
HA6094A01SP	CLAMP FOR SUPPORT ARM X PLATED	2 pcs	13 motors
MN909	EYESHIELD MTG INSTR. FOR GA9, GA10 & GA1	1 pcs	17 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN907	INSTR MANUAL GRINDER-BUFFER/WIRE BRUSH	1 pcs	8 motors

Accessories 10

Genuine accessories that can be used with the Baldor 762 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16E	PEDESTAL LIGHT INDUSTRIAL,STEEL	13 motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
B73	7" 36 GRIT GRINDING WHEEL	17 motors
B74	7" 60 GRIT GRINDING WHEEL	17 motors
W70	W70 WIRE BRUSH WHEEL	3 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
