Baldor 7306D

Baldor 7306D; 0.5 HP, 1800 rpm, single-phase, 115/230 V @ 60 Hz, 3420C frame grinder motor.

BaldorMFR # 7306DSKU # YLSQJKXJWZXAC6X

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 7306D; 0.5 HP, 1800 rpm, single-phase, 115/230 V @ 60 Hz, 3420C frame grinder motor.

Baldor 7306D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles4

Output at frequency.500 HP @ 60 HZ

Phase1

Product styleGRINDER

Shaft diameter0.625 IN

Speed (rpm)1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Wheel bore size0.6250 IN

Wheel diameter7.0000 IN

Wheel face1.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage1.900 A @ 230.0 V · 3.800 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3420C

Mounting arrangementF1

Overall length20.89 IN

Product familyGrinder

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127032

Nameplate

Catalog number7306D

Horsepower (HP).5

Voltage (V)115/230

Phase1

Current (A)3.8/1.9

Frequency (Hz)60

Speed (rpm)1800

Specification numberG7-307-385

Nameplate numberNP3118

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)2.01 Ω / 22.2 Ohms B Ph

Start configurationDOL

Breakdown torque3.11 lb-ft

Pull-up torque0.228 lb-ft

Locked-rotor torque0.275 lb-ft

Starting current (A)19.71 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	58	83	91	94	95	95	95
Efficiency %	0	54.9	69.7	75.3	76.7	75.1	72
Speed rpm	1797	1781	1765	1746	1722	1702	1678
Line amps A	1.2	1.78	2.56	3.45	3.8	5.26	5.96
Power W	79.95	170	267	372	488	573	649
Torque lb-ft	0	0.369	0.743	1.13	1.53	1.78	1.96

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·50 KB·English

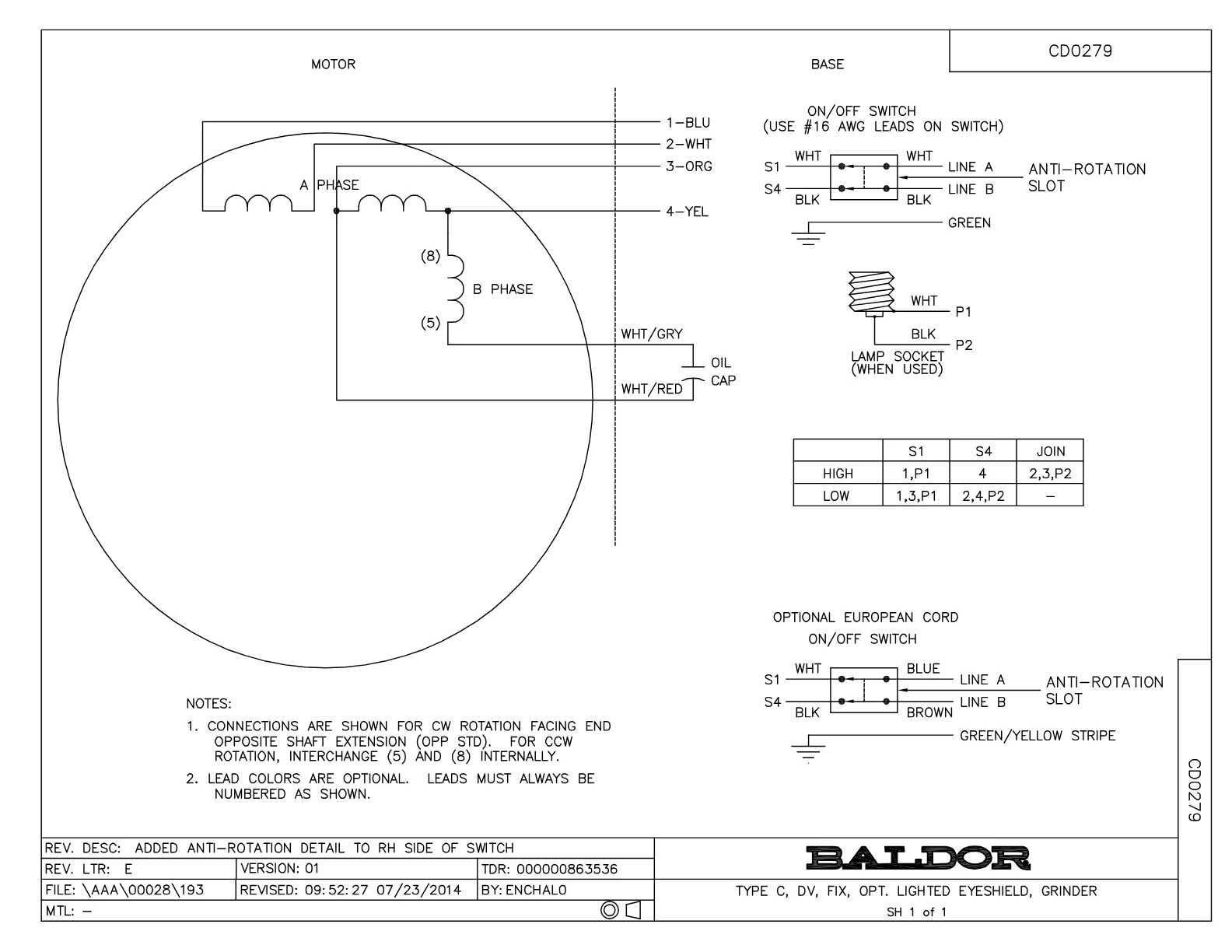

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·551 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 11

The genuine spare parts used for servicing and repairing the Baldor 7306D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3008F12SP	CYL OIL CAP 8MFD/370V	1 pcs	4 motors
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G6AP1008A01SP	TOOLREST, MACH/PRIMED	2 pcs	9 motors
HA6064A01SP	PAINT/PRIME HA6064A01	2 pcs	9 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	2 pcs	1,025 motors
HA6094A01SP	CLAMP FOR SUPPORT ARM X PLATED	2 pcs	13 motors
GA24	WATER POT ASSY	1 pcs	21 motors
GA25	TOOL TRAY ASSY	1 pcs	10 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 12

Genuine accessories that can be used with the Baldor 7306D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16E	PEDESTAL LIGHT INDUSTRIAL,STEEL	13 motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
B73	7" 36 GRIT GRINDING WHEEL	17 motors
B74	7" 60 GRIT GRINDING WHEEL	17 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
DC7	DUST CONTROL UNIT	12 motors
