Baldor 712E

Baldor 712E; 0.5 HP, 3600 rpm, single-phase, 115 V @ 60 Hz, 3420C frame grinder motor.

BaldorMFR # 712ESKU # YLS3BDU4JX7WBZH

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 712E; 0.5 HP, 3600 rpm, single-phase, 115 V @ 60 Hz, 3420C frame grinder motor.

Baldor 712E

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureGRND

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Output at frequency.500 HP @ 60 HZ

Phase1

Product styleGRINDER

Shaft diameter0.625 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Wheel bore size0.6250 IN

Wheel diameter7.0000 IN

Wheel face1.0000 IN

Agency approvalsCSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage3.400 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3420C

Mounting arrangementF1

Overall length20.89 IN

Product familyGrinder

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568126967

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·39 KB·English

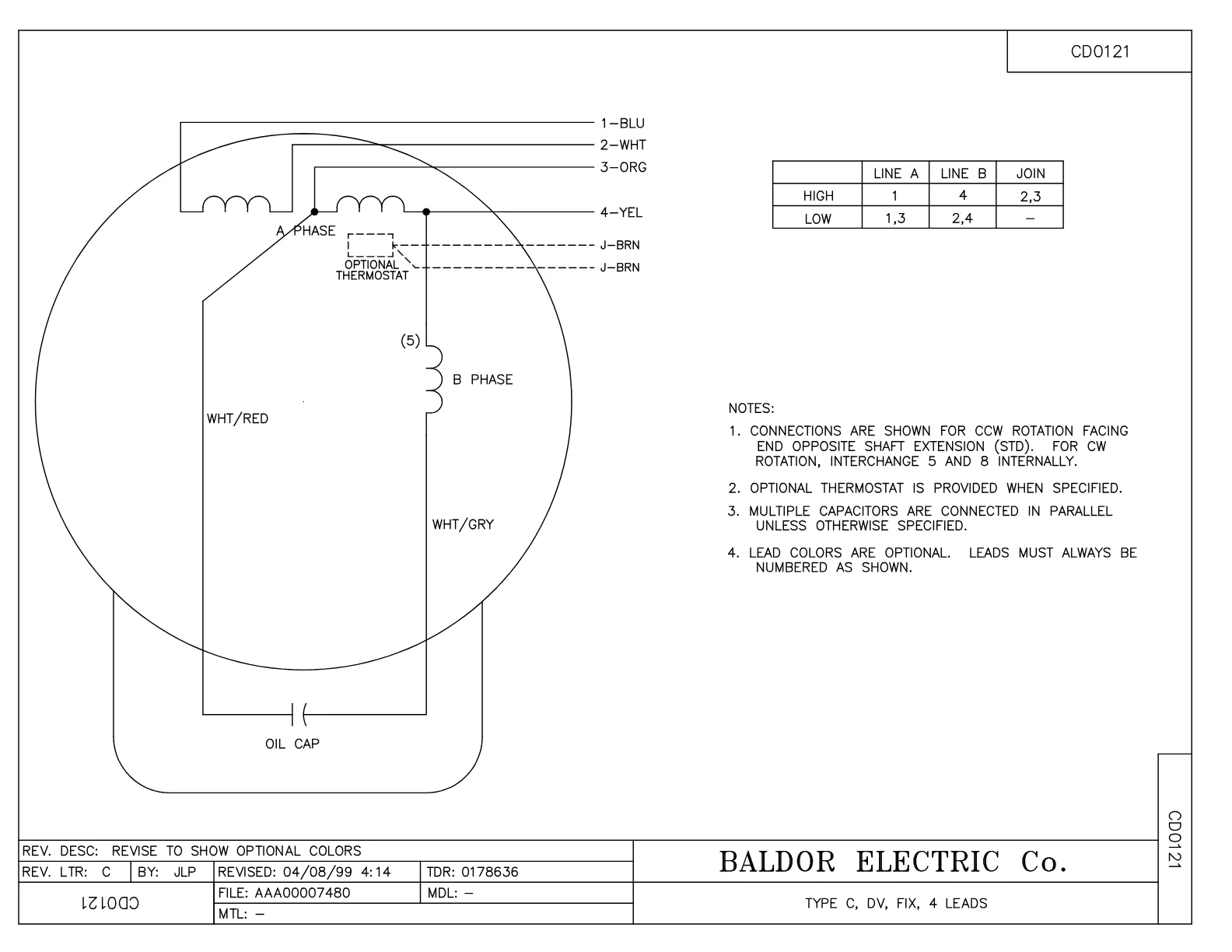

Wiring DiagramWiring DiagramPDF·38 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·43 KB

DatasheetDatasheetPDF·451 KB·English

CAD Files 2

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor 712E motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	2 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 13

Genuine accessories that can be used with the Baldor 712E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16E	PEDESTAL LIGHT INDUSTRIAL,STEEL	13 motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
GA24	WATER POT	21 motors
B73	7" 36 GRIT GRINDING WHEEL	17 motors
B74	7" 60 GRIT GRINDING WHEEL	17 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
DC7	DUST CONTROL UNIT	12 motors
