Baldor 532

Baldor 532; 0.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3524M frame, TENV enclosed AC motor of the Grinder family.

BaldorMFR # 532SKU # YLSLKWBWHBTAYRP

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 532; 0.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3524M frame, TENV enclosed AC motor of the Grinder family.

Baldor 532

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output.5

Number of poles2

Output at frequency.500 HP @ 60 HZ · .500 HP @ 50 HZ

Phase3

Product styleGRINDER

Shaft diameter0.750 IN

Speed (rpm)3000 rpm · 3600 rpm

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter6.0000 IN

Wheel face1.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typeNo Grease

Current at voltage2.000 A @ 230.0 V · 2.000 A @ 208.0 V · 1.000 A @ 460.0 V · 1.000 A @ 230.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size9 @ 18 AWG

Motor type3524M

Mounting arrangementF1

Overall length15.31 IN

Product familyGrinder

Service factor1.00

Shaft extension locationPulley End

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127322

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·45 KB·English

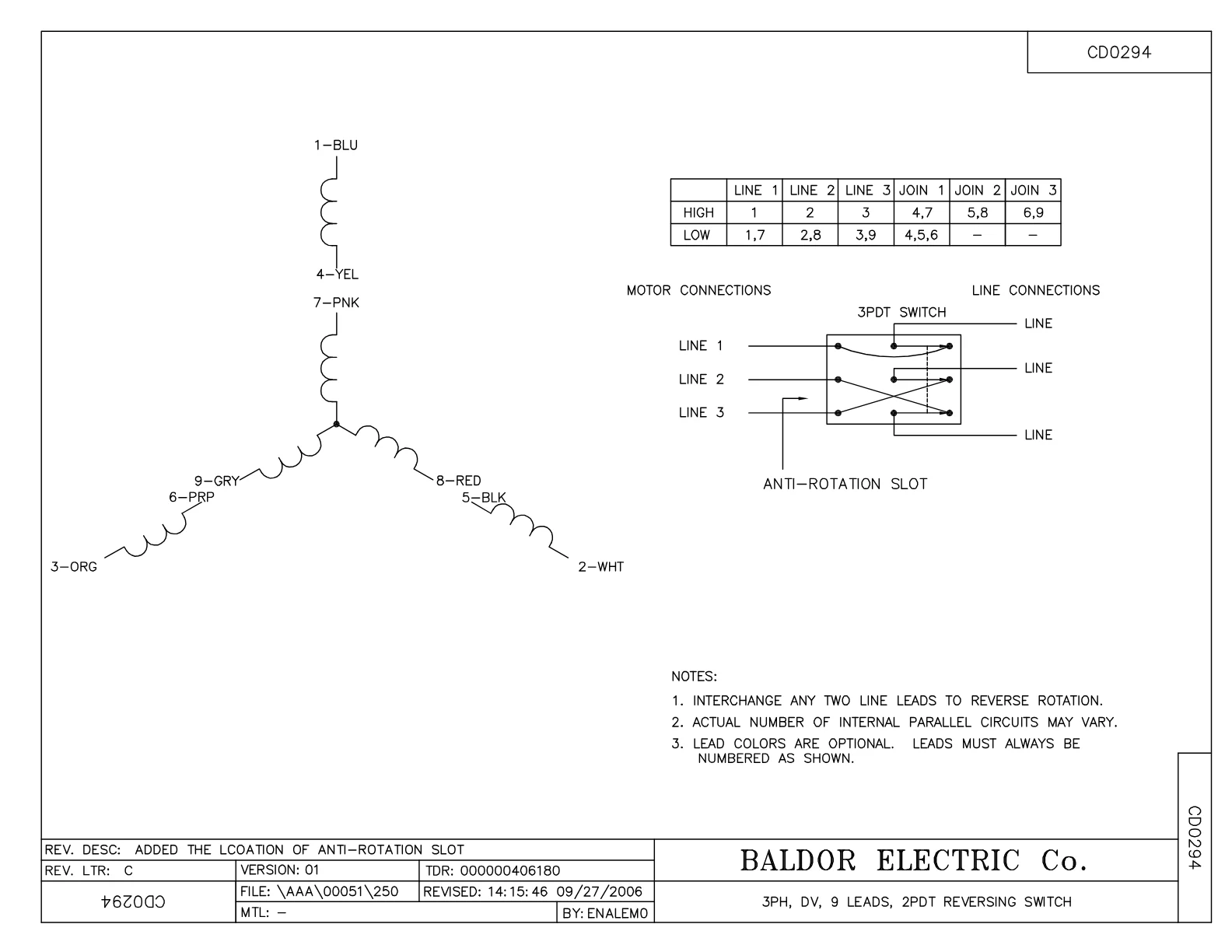

Wiring DiagramWiring DiagramPDF·33 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·52 KB

DatasheetDatasheetPDF·449 KB·English

CAD Files 2

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor 532 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9035SP	SWITCH HMA250-73(CARLING)	1 pcs	2 motors
HA1005A03SP	SLINGER, OD 1.750, ID .938, 205 BRG	2 pcs	117 motors
HA6104A01SP	WHEEL FLANGE, MACH	2 pcs	4 motors
HA3007A01SP	DR8218 SCREW (WELKER) AISI-1018	8 pcs	4 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
G9AP5000A01SP	TOOL REST ASSEMBLY	1 pcs	4 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 6

Genuine accessories that can be used with the Baldor 532 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
D501	GENERAL PURPOSE DIAMOND WHEEL	2 motors
D502	FINE FINISH DIAMOND WHEEL	2 motors
