Baldor 522

Baldor 522; 0.5 HP, 3600 rpm, 1 phase 115 V 60 Hz, 3524C frame, TENV enclosed AC motor of the Grinder family.

BaldorMFR # 522SKU # YLSBTCQWKLG9HI

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 522; 0.5 HP, 3600 rpm, 1 phase 115 V 60 Hz, 3524C frame, TENV enclosed AC motor of the Grinder family.

Baldor 522

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.5

Number of poles2

Output at frequency.500 HP @ 60 HZ

Phase1

Product styleGRINDER

Shaft diameter0.750 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter6.0000 IN

Wheel face1.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage5.000 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size3 @ 18 AWG

Motor type3524C

Mounting arrangementF1

Overall length15.32 IN

Product familyGrinder

Service factor1.00

Shaft extension locationPulley End

Shaft rotationReversible: Connected OPP STD

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127315

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·46 KB·English

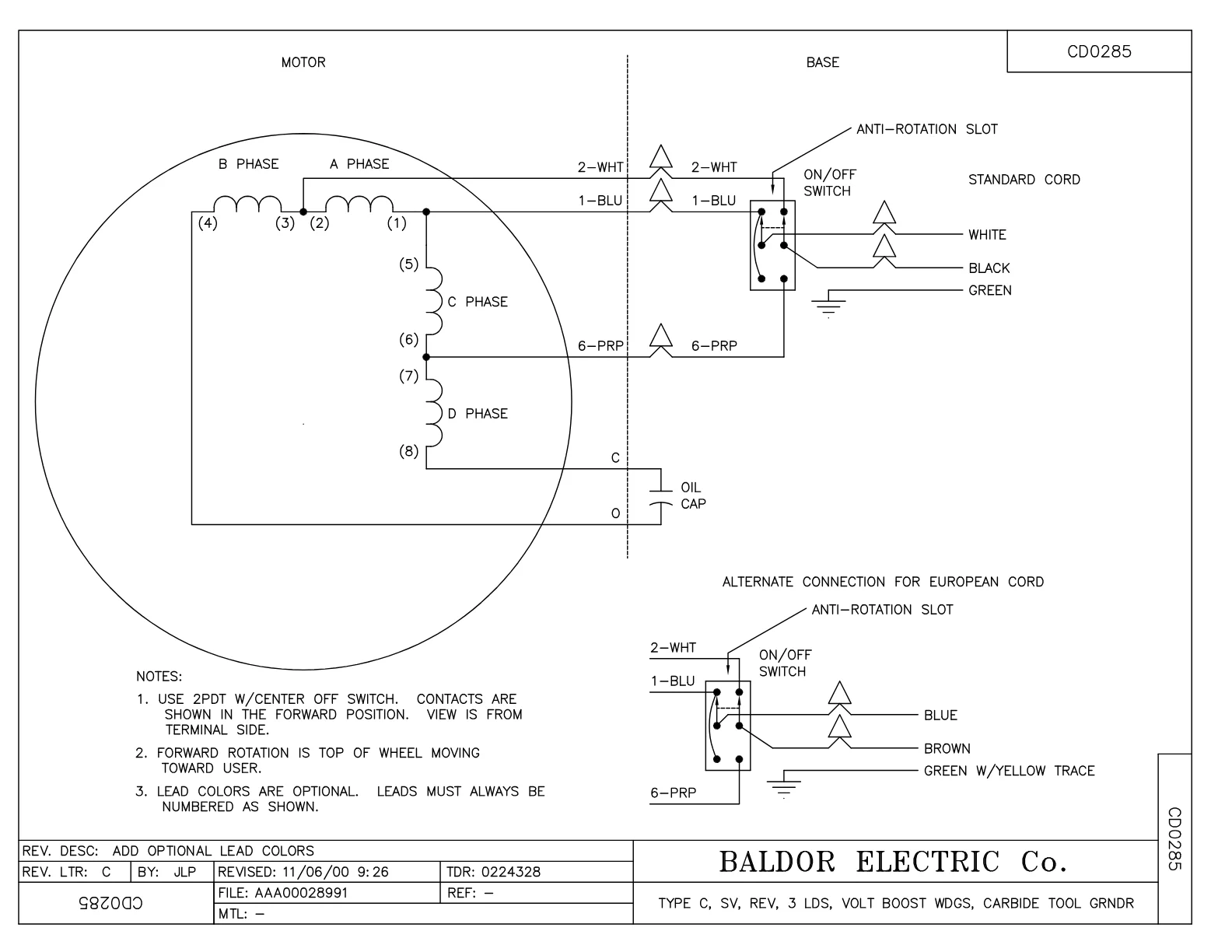

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·468 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor 522 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3012F12SP	CYL OIL CAP 12MFD/370V	1 pcs	13 motors
SP9019SP	SWITCH 7563K6 (EATON)	1 pcs	4 motors
G9AP5000A01SP	TOOL REST ASSEMBLY	1 pcs	4 motors
HA6104A01SP	WHEEL FLANGE, MACH	2 pcs	4 motors
HA3007A01SP	DR8218 SCREW (WELKER) AISI-1018	8 pcs	4 motors
HA1005A03SP	SLINGER, OD 1.750, ID .938, 205 BRG	2 pcs	117 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 8

Genuine accessories that can be used with the Baldor 522 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
D501	GENERAL PURPOSE DIAMOND WHEEL	2 motors
D502	FINE FINISH DIAMOND WHEEL	2 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
