How can I get a price quote for Baldor 510?

You can request a fast quote for Baldor 510 from Yılsa Engineering. Reference part number YLSDTVJJWLLVHQJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 510 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 510 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 510?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 510

Baldor 510; 0.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3524M frame, TENV enclosed AC motor of the Grinder family.

BaldorMFR # 510SKU # YLSDTVJJWLLVHQJ

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 510; 0.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3524M frame, TENV enclosed AC motor of the Grinder family.

Baldor 510

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output.5

Number of poles2

Output at frequency.500 HP @ 60 HZ · .500 HP @ 50 HZ

Phase3

Product styleGRINDER

Shaft diameter0.750 IN

Speed (rpm)3000 rpm · 3600 rpm

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter6.0000 IN

Wheel face1.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage2.000 A @ 230.0 V · 2.000 A @ 208.0 V · 1.000 A @ 460.0 V · 1.000 A @ 230.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size9 @ 18 AWG

Motor type3524M

Mounting arrangementF1

Overall length15.31 IN

Product familyGrinder

Service factor1.00

Shaft extension locationPulley End

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127346

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·45 KB·English

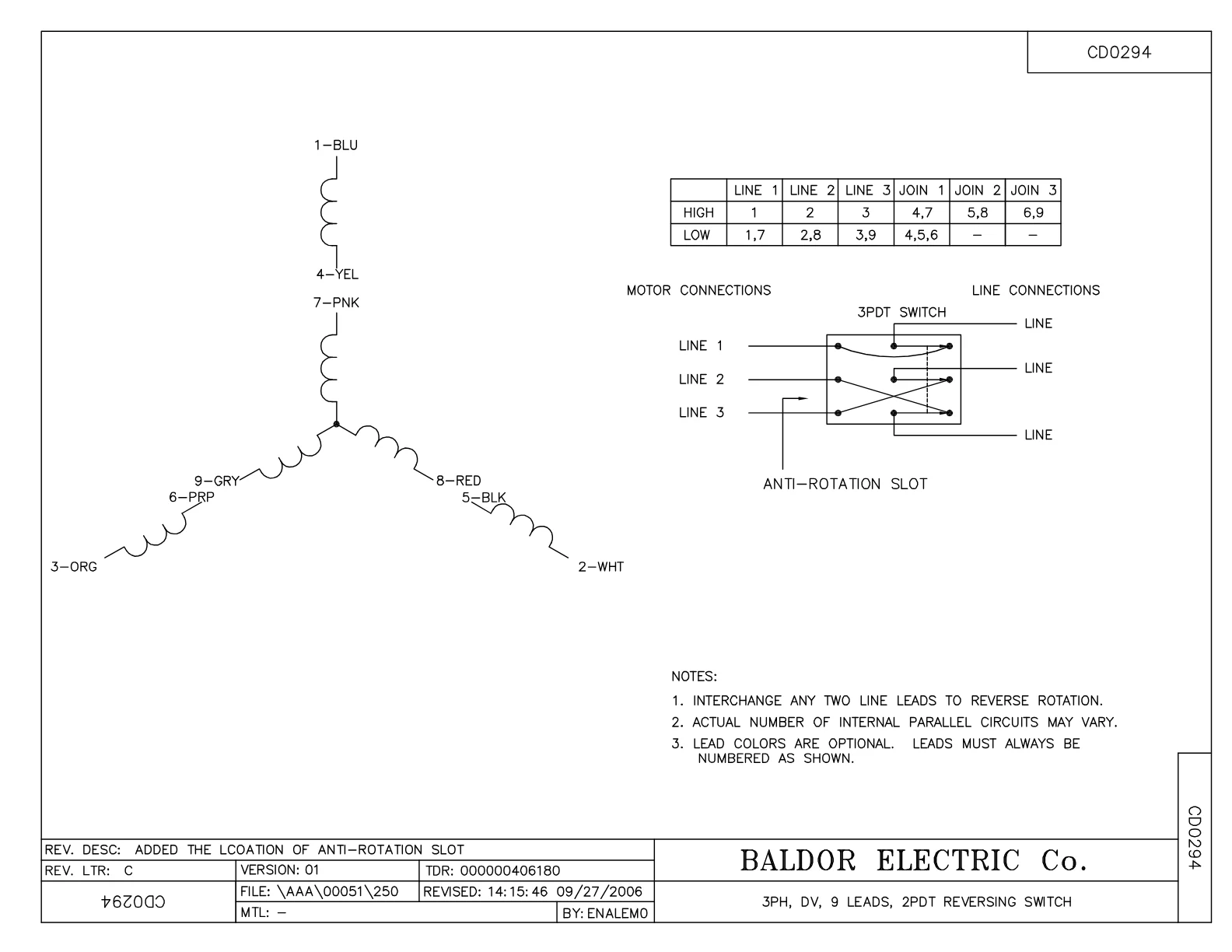

Wiring DiagramWiring DiagramPDF·33 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·52 KB

DatasheetDatasheetPDF·450 KB·English

CAD Files 2

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor 510 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9035SP	SWITCH HMA250-73(CARLING)	1 pcs	2 motors
G9AP5000A01SP	TOOL REST ASSEMBLY	1 pcs	4 motors
HA6104A01SP	WHEEL FLANGE, MACH	2 pcs	4 motors
HA3007A01SP	DR8218 SCREW (WELKER) AISI-1018	8 pcs	4 motors
HA1005A03SP	SLINGER, OD 1.750, ID .938, 205 BRG	2 pcs	117 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 10

Genuine accessories that can be used with the Baldor 510 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
GA7	DIAMOND NIB FOR GA8	2 motors
GA8	WHEEL DRESSER	2 motors
C61	60 GRIT CARBIDE GRINDING WHEEL	2 motors
C121	120 GRIT CARBIDE GRINDING WHEEL	2 motors
S46	46 GRIT GRINDING WHEEL/ALUM OXIDE	2 motors
S61	60 GRIT GRINDING WHEEL/ ALUM. OXIDE	2 motors
