Baldor 410B

Baldor 410B is a 1.5 HP, 3600 rpm, single-phase 115/230 V @ 60 Hz, 3528C frame, TENV enclosed buffer AC motor.

BaldorMFR # 410BSKU # YLSN5RE6ANJKG36

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output1.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 410B is a 1.5 HP, 3600 rpm, single-phase 115/230 V @ 60 Hz, 3528C frame, TENV enclosed buffer AC motor.

Baldor 410B

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output1.5

Number of poles2

Output at frequency1.500 HP @ 60 HZ

Phase1

Product styleBUFFER

Shaft diameter0.875 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Wheel bore size0.8750 IN

Wheel diameter10.0000 IN

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage13.800 A @ 115.0 V · 6.900 A @ 230.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3528C

Mounting arrangementF1

Overall length29.94 IN

Product familyBuffer

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568492604

Nameplate

Catalog number410B

Horsepower (HP)1.5

Voltage (V)115/230

Phase1

Current (A)13.8/6.9

Frequency (Hz)60

Speed (rpm)3600

Specification numberG10-168-1

Nameplate numberNP3352L

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.97 Ω / 7.6 Ohms B Ph

Start configurationDOL

Breakdown torque3.6 lb-ft

Pull-up torque0.5 lb-ft

Locked-rotor torque1 lb-ft

Starting current (A)24 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%
Power factor %	15	49	71	80	86	88
Efficiency %	0	70.5	76.4	78.4	74.1	63.3
Speed rpm	3580	3512	3429	3330	3200	2951
Line amps A	2.75	3.5	4.5	5.83	7.65	10.95
Power W	95	425	765	1086	1472	1987
Torque lb-ft	0	0.6	1.2	1.8	2.4	3

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·43 KB·English

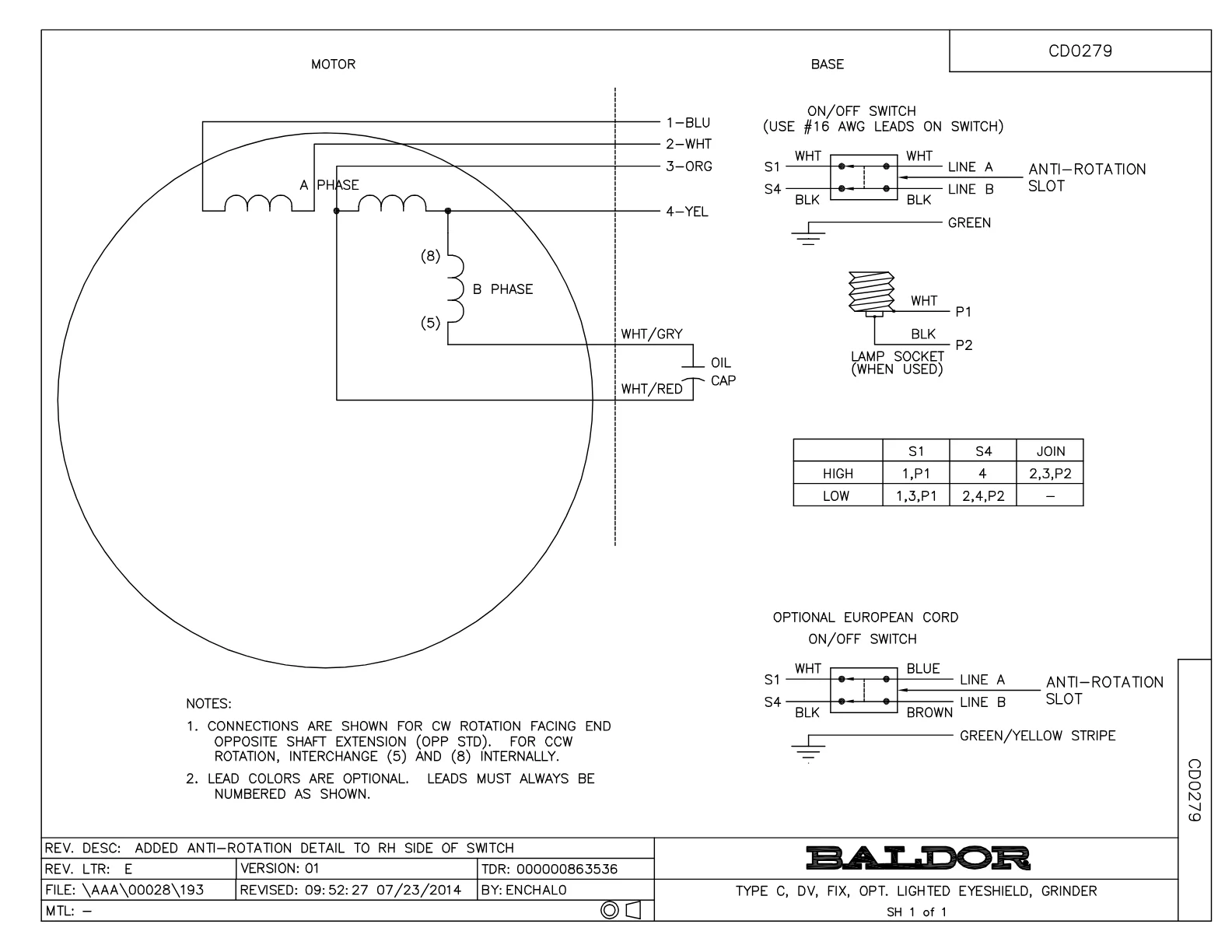

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·543 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor 410B motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3016F12SP	CYL OIL CAP 16MFD/370V	1 pcs	15 motors
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G8EP3900A01SP	ENDPLATE, MACH	2 pcs	28 motors
XY8809A62SP	7/8-9 NUT L.H. HEX (NC)	1 pcs	9 motors
XY8809A12SP	7/8-9 NUT R.H. HEX (NC)	1 pcs	9 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 7

Genuine accessories that can be used with the Baldor 410B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
A103	10" COTTON BUFFING WHEEL (G0AP3004)	4 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
