How can I get a price quote for Baldor 380WCT?

You can request a fast quote for Baldor 380WCT from Yılsa Engineering. Reference part number YLSAC1LY6TGJLK5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 380WCT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 380WCT genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 380WCT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 380WCT

Baldor 380WCT is a made-to-order 28L 2/4-pole Dental Lathe family polishing lathe AC motor rated .330 HP / .170 HP @ 60 HZ, 3430 rpm / 1710 rpm, 1 phase 115.0 V, with TENV enclosure.

BaldorMFR # 380WCTSKU # YLSAC1LY6TGJLK5

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.33/.17

Number of poles2 · 4

Have questions?Chat on WhatsApp

About This Product

Baldor 380WCT is a made-to-order 28L 2/4-pole Dental Lathe family polishing lathe AC motor rated .330 HP / .170 HP @ 60 HZ, 3430 rpm / 1710 rpm, 1 phase 115.0 V, with TENV enclosure.

Baldor 380WCT

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.33/.17

Number of poles2 · 4

Output at frequency.330 HP @ 60 HZ · .170 HP @ 60 HZ

Phase1

Product styleDENTAL LATHE

Shaft diameter0.376 IN

Speed (rpm)1710 rpm · 3430 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage3.800 A @ 115.0 V

Duty ratingCONT

Insulation classF

Motor lead quantity/wire size3 @ 18 AWG

Motor type3528L

Mounting arrangementF1

Overall length16.63 IN

Product familyDental Lathe

Service factor1.00

Shaft extension locationPulley End

Shaft rotationFixed Opposite Standard

Speed code1Ph 2 Speed Pole Changing

Motor standardsOther

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568127858

Nameplate

Catalog number380WCT

Specification numberL35-243G0330

Horsepower (HP).33/.17

Voltage (V)115

Phase1

Current (A)3.8/2.4

Frequency (Hz)60

Speed (rpm)3430/1710

Insulation classF

Rating40C AMB-CONT

Nameplate numberNP3356L

Performance

General characteristics· 115 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)2.2367 Ω / 13.494 Ohms B Ph

Start configurationDOL

Breakdown torque2.54 lb-ft

Pull-up torque0.75 lb-ft

Locked-rotor torque1 lb-ft

Starting current (A)24 A

Line-to-line resistance at 25 °C (ohms)2.2524 Ω / 13.492 Ohms B Ph

Start configurationDOL

Breakdown torque1.55 lb-ft

Pull-up torque0.636 lb-ft

Locked-rotor torque1.03 lb-ft

Starting current (A)23.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	32	60	74	83	87	89	90
Efficiency %	0	52	63.4	66.1	65.1	61.5	53.5
Speed rpm	3589	3558.5	3524.3	3480.5	3428.7	3363.6	3226.7
Line amps A	1.51	1.82	2.3	2.98	3.77	4.72	6.24
Power W	56	125	197	282	375	486	647
Torque lb-ft	0	0.1286	0.2495	0.3769	0.5013	0.6257	0.755

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·58 KB·English

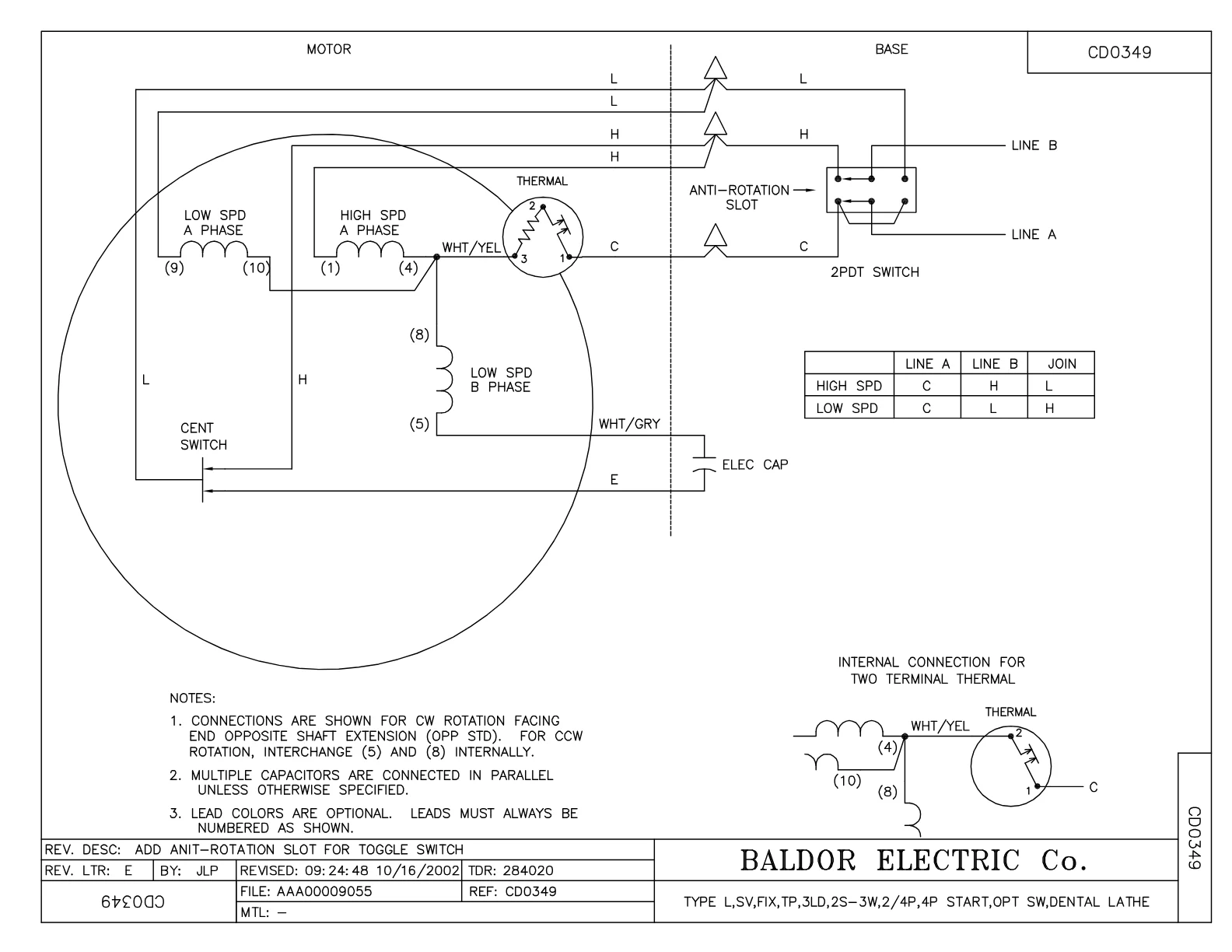

Wiring DiagramWiring DiagramPDF·43 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·44 KB

DatasheetDatasheetPDF·634 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 2

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor 380WCT motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN904	Baldor Polishing Lathes 6/05	1 pcs	6 motors

Accessories 2

Genuine accessories that can be used with the Baldor 380WCT motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
